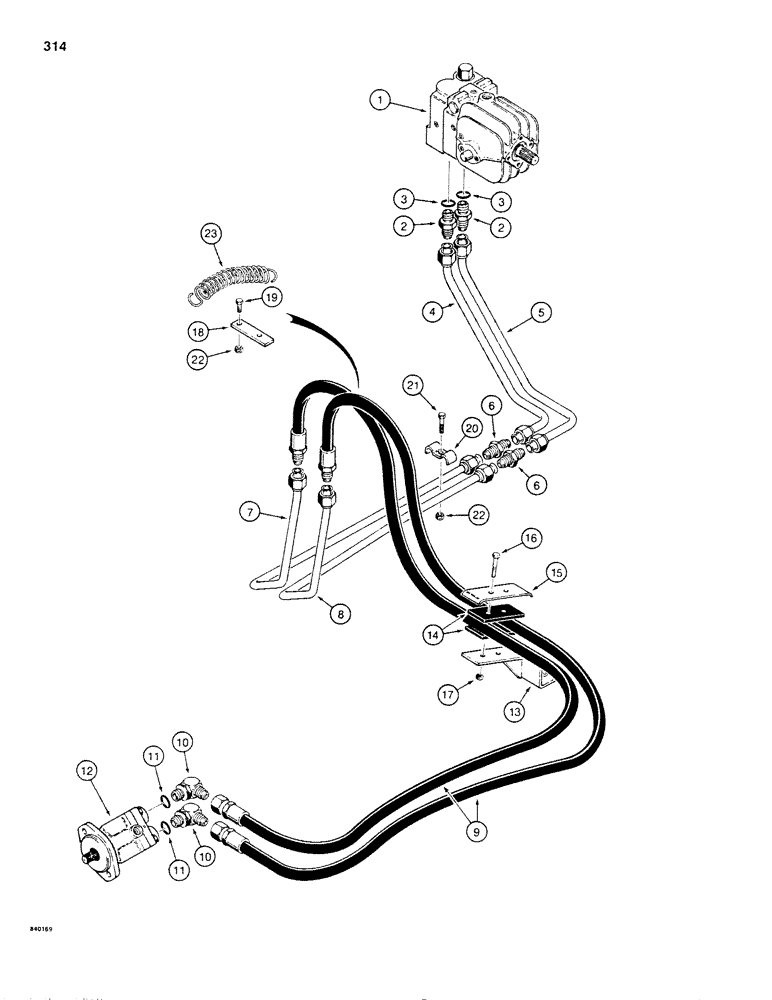

Запчасти Case SD100 (314) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT, USED BEFORE 30+4 SPECIAL SERIAL NUMBER 3751 (35) - HYDRAULIC SYSTEMS

1

H577536

PUMP

ASSEMBLY - line layer, Vickers, parts list figure 354

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H563494

TUBE,0.625" OD

- pressure, pump front port

1шт.

5

H563478

TUBE - pressure, pump rear port 0.625" OD x 12.5, 2.25" L

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - tube

2шт.

7

H563486

TUBE,0.625" OD x 24.75, 7.5" L

- pressure, front

1шт.

8

H563502

TUBE - pressure, rear 0.625" OD

1шт.

9

H202036

HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2

12.70 mm ID x 1752.60 mm, SAE 100R2

2шт.

10

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 11

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

12

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, vickers, parts list figure 362

1шт.

13

H575589

CLAMP

BRACKET - hose support, see figure 372 for mounting

1шт.

14

H202259

PAD

CUSHION - rubber

2шт.

15

H202234

CLAMP

- hose

1шт.

16

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

17

131-103

NUT,Tinn, 1/4"-20

- hex, self-locking, 5/16" - 18 NC

2шт.

18

H202333

PLATE - hose support

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

H59345

CLAMP

- tube

1шт.

21

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex self-locking 5/16" - 18 NC

2шт.

23

H52548

SPRING

- hose carrier

1шт.
