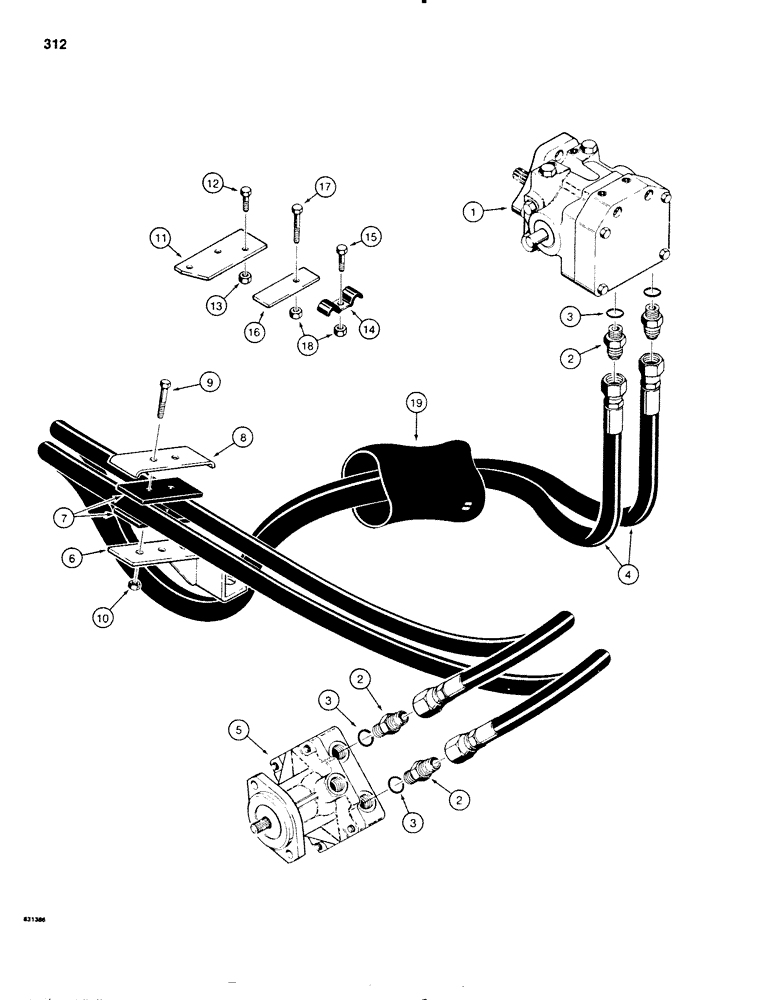

Запчасти Case SD100 (312) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H631937

PUMP

ASSEMBLY - line layer, Sundstrand, parts list figure 358

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 3 7/8"-14, 37º x 3/4"-16, O-Ring

4шт.

4

H356592

HOSE

- pressure, 132" (3353 mm) long, Serial Range: pump-motor

2шт.

5

H619676

FASTENER

MOTOR ASSEMBLY - line layer, Sundstrand, parts list figure 364

1шт.

6

H575589

CLAMP

BRACKET - hose support, see figure 372 for mounting

1шт.

7

H202259

PAD

CUSHION - rubber

2-4шт.

8

H202234

CLAMP

- hose

1-2шт.

9

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" -18 NC

2шт.

11

H240556

PLATE - hose support

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

14

H59345

CLAMP

- tube

4шт.

15

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

16

H240275

STRAP

CLAMP - hose

1шт.

17

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5-16" - 18 NC

5шт.

19

H242842

HOSE

GUARD - hose

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
