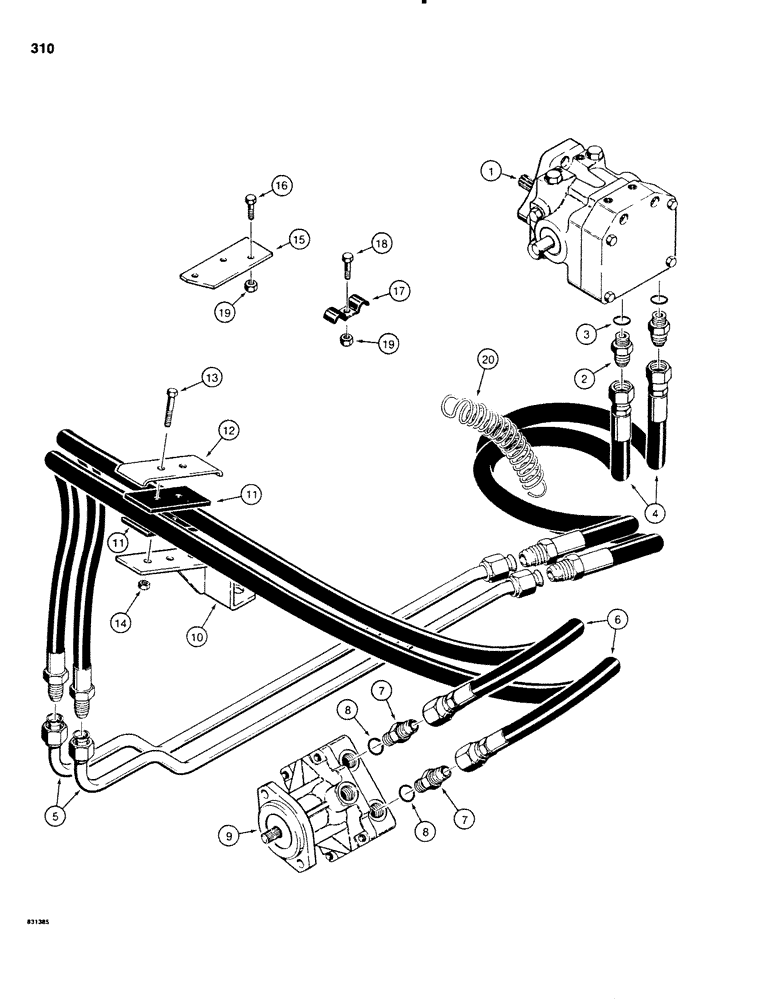

Запчасти Case SD100 (310) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY - line layer, Sundstrand, parts list figure 358

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 3 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

4

L53351

HOSE

- pressure, 45" (1143 mm) long, Serial Range: pump-tube

2шт.

5

H562439

TUBE,0.625" OD

- pressure, hose to hose

2шт.

6

H202036

HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2

Tube to Motor 12.70 mm ID x 1752.60 mm, SAE 100R2

2шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 8 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

9

REF

INSTRUCTION

MOTOR ASSEMBLY - line layer, Sundstrand, parts list figure 364

1шт.

10

H575589

CLAMP

BRACKET - hose support, see figure 372 for mounting

1шт.

11

H202259

PAD

CUSHION - rubber

2шт.

12

H202234

CLAMP

- hose

1шт.

13

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

15

H240556

PLATE - hose support

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

H59345

CLAMP

- TUBE

4шт.

18

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self- locking, 5/16" - 18 NC

5шт.

20

H52548

SPRING

- hose carrier, if used

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
