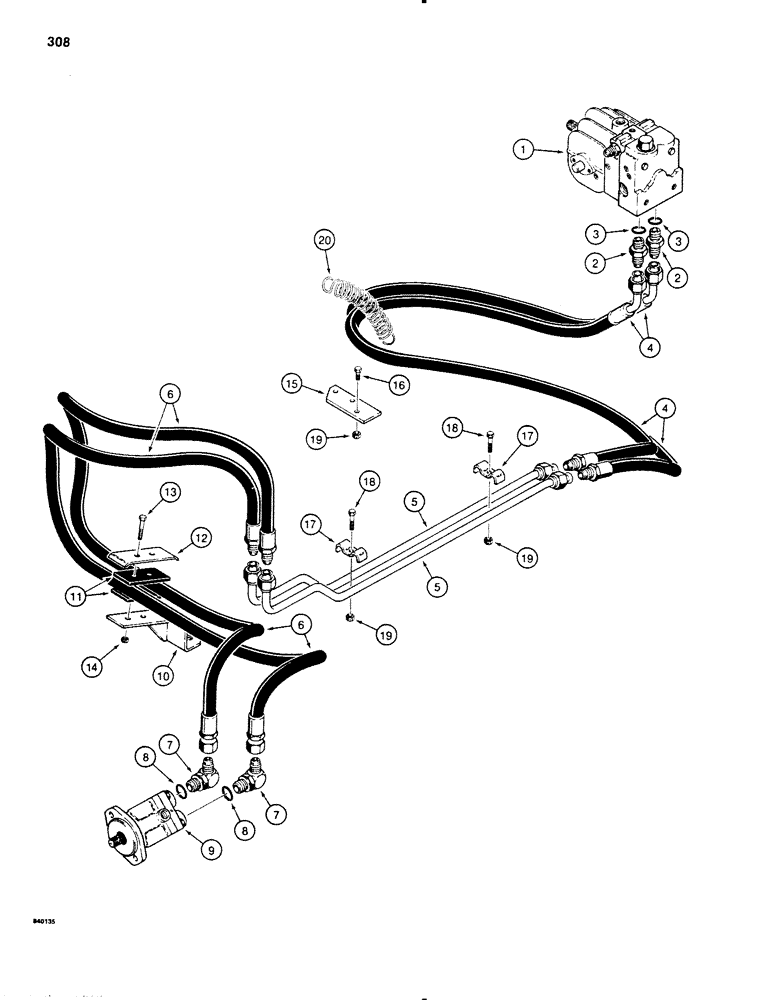

Запчасти Case SD100 (308) - LINE LAYER HYDRAULIC PUMP TO MOTOR PRESSURE CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H577536

PUMP

ASSEMBLY - line layer, Vickers, parts list figure 354

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H240267

HOSE - pressure, 44" (1118 mm) long with 45 degree tube end, 30+4 only

2шт.

4

H240838

HOSE

- pressure, 48" (1219 mm) long with 45 degree tube end, 40+4 only

2шт.

5

H562439

TUBE,0.625" OD

- pressure, hose to hose

2шт.

6

H202036

HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2

Tube to Motor 12.70 mm ID x 1752.60 mm, SAE 100R2

2шт.

7

2185119

ELBOW - 90 degree, adjustable, Includes: Ref. 8

2шт.

8

2185008

O-RING - elbow

1шт.

9

H575282

SPARE PART

MOTOR ASSEMBLY - line layer, Vickers, parts list figure 362

1шт.

10

H575589

CLAMP

BRACKET - hose support, see figure 372 for mounting

1шт.

11

H202259

PAD

CUSHON - rubber

2шт.

12

H202234

CLAMP

- hose

1шт.

13

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

15

H240556

PLATE - hose support

1шт.

For suction and return circuit, see figure 322.

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

H59345

CLAMP

- tube

2шт.

18

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" -18 NC

3шт.

20

H52548

SPRING

- hose carrier

1шт.
