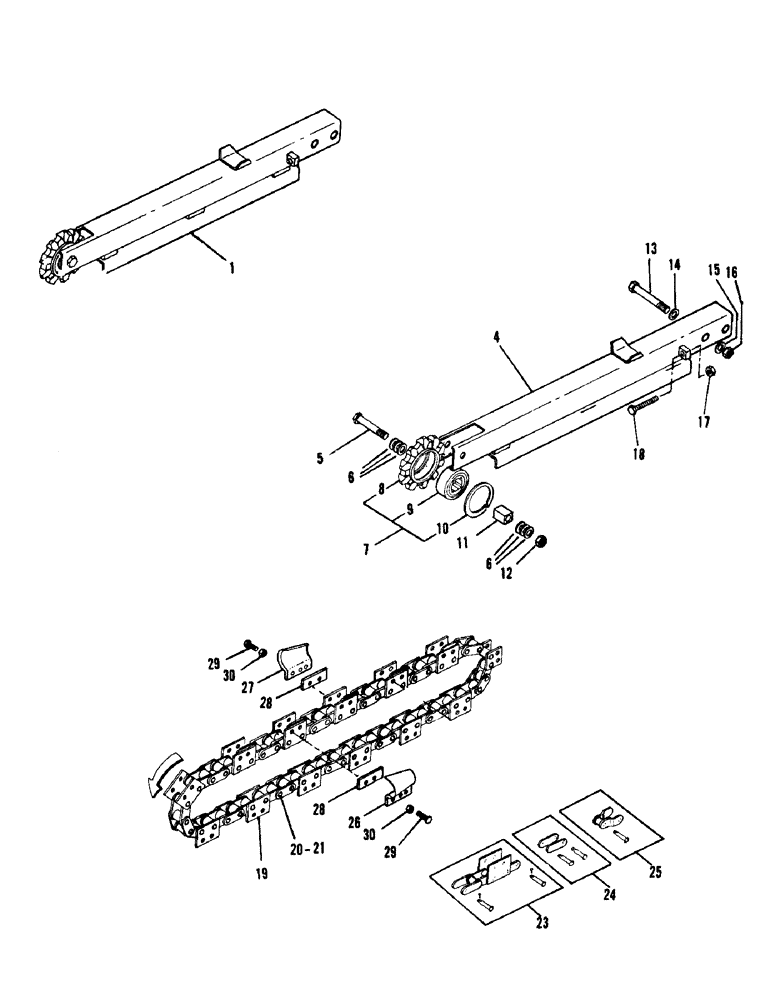

Запчасти Case S101 (12) - DIGGING BOOM, CHAIN, DIGGING TEETH

1

H612150

BOOM

& SPROCKET ASSY - 24"

1шт.

4

H612143

BOOM

WELD ASSY - 24"

1шт.

5

H711432

BOLT

HHCS (5/8 NC x 3)

1шт.

6

H738500

WASHER

(5/8 flat)

2шт.

7

H503664

SPROCKET ASSY.

SPROCKET AND BEARING ASSY

1шт.

8

H33563

DRIVE SPROCKET

SPROCKET - idler

1шт.

9

H747139

BALL BEARING

BEARING

1шт.

10

H33837

RING

RETAINER RING

1шт.

11

H232645

BUSHING

SQUARE BUSHING

1шт.

12

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC hex lock)

1шт.

13

H711473

BOLT

HHCS (5/8 x 4 NC)

2шт.

14

H738500

WASHER

(5/8 flat)

2шт.

15

NLS

NO LONGER SERVICED

(5/8 flat - HT)

2шт.

16

230-42110

LOCK NUT,5/8"-11, GA

NUT - (5/8 NC hex - lock)

2шт.

17

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - (1/2 NC - jam)

1шт.

18

H334375

BOLT

- boom adjusting

1шт.

19

H615369

CHAIN (AG)

CHAIN ASSY - 52 pitches - 24" boom (Includes 20 & 21)

1шт.

20

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

This pin is a D-shaped pin for a rex chain. If you are looking for the round pin for the ballantine chain, you can order P/N 253215A1. Pins for the ballantine chain 260 and 325 are 257350A1, .565 X 2.718 and 257351A1, .750 X 3.656.

1шт.

21

H85274

SPLIT PIN/SAFETY PIN

KEEPER PIN (Use H739920 - 1/8 x 3/4 cotter pin as alternate)

1шт.

23

H502054

CHAIN (CE)

REPAIR SECTION (Includes 2 ea item 20 & 21)

1шт.

24

H504068

DRAG LINK

CONNECTOR LINK (Includes 2 ea item 20 & 21)

1шт.

25

H59360

HALF-LINK

HALF LINK (Includes 1 ea item 20 & 21)

1шт.

26

H208363

TOOTH

DIGGING TOOTH - L/H

3шт.

27

H208371

TOOTH

DIGGING TOOTH - R/H

3шт.

28

H208355

SPACER

TOOTH SPACER

6шт.

29

H723247

BOLT

HHCS (3/8 NF x 1-1/4) - grade 8)

14шт.

30

H746750

LOCK NUT

NUT (3/8 NF hex - lock)

14шт.
