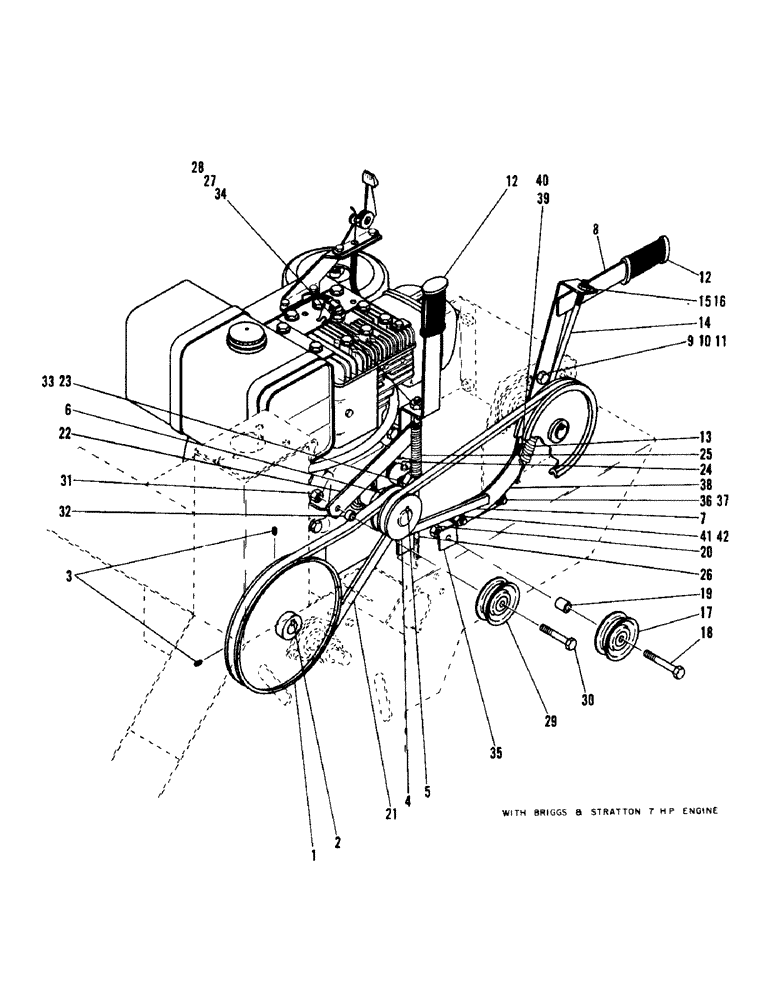

Запчасти Case S101 (08) - BELTS, CLUTCHES, SHEAVES

1

H43422

SHEAVE

- jack shaft

1шт.

2

H61168

KEY

- square (3/16 x 7/8) attach sheave

1шт.

3

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) attach sheave

2шт.

4

H311050

BLOCK

SHEAVE - engine

1шт.

5

H257006

KEY

- square (1/4 x 1-1/2) attach sheave

1шт.

6

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) attach sheave

2шт.

7

H310417

V-BELT

Transport Drive

1шт.

8

H621979

HANDLE

CLUTCH ASM - transport

1шт.

9

H709857

BOLT

- NC HH (3/8 x 1) attach clutch, Serial Range: asm-frame

1шт.

10

H738468

WASHER

- flat (3/8) attach clutch, Serial Range: asm-frame

1шт.

11

H738013

LOCK NUT

NUT - NC hex C/L (3/8) attach clutch, Serial Range: asm-frame

1шт.

12

H33332

GRIP

- handle

2шт.

13

H43216

VALVE SPRING

SPRING - clutch - adjust

1шт.

14

H43208

BOLT

LINK - adjust

1шт.

15

H738450

WASHER

- flat (5/16) attach link

1шт.

16

425-145

JAM NUT,Jam, 5/16"-18, G5

Attach link Jam, 5/16"-18, G5

1шт.

17

H43455

SHEAVE

- idler

1шт.

18

H710319

BOLT

- NC HH (7/16 x 2-3/4) attach sheave

1шт.

19

H317818

SPACER

- (Attach sheave)

1шт.

20

H738021

X

NUT - NC hex C/L (7/16) attach sheave

1шт.

21

H310409

V-BELT,42.00" L

Digging Drive 42.00" L

1шт.

22

H500579

CLUTCH ASM - belt

1шт.

23

H43323

BOLT

- special (Attach clutch, Serial Range: asm-engine)

1шт.

24

H745299

FITTING

- grease straight (1/4-28 NF)

1шт.

25

H43216

VALVE SPRING

SPRING - clutch adjust

1шт.

26

H43208

BOLT

LINK - adjust

1шт.

27

H738450

WASHER

- flat (5/16) attach link

1шт.

28

H738146

HARDWARE

NUT - NC hex C/L (5/16) attach link

1шт.

29

H43455

SHEAVE

- idler

1шт.

30

H710293

BOLT

- NC HH (7/16 x 2-1/4) attach sheave

1шт.

31

H738021

X

NUT - NC hex C/L (7/16) attach sheave

1шт.

32

H317800

SPACER (Attach sheave)

1шт.

33

H738484

WASHER

- flat (1/2) (Attach clutch, Serial Range: assy-engine)

1шт.

34

H317206

BOLT

BOLT - eye (Attach link)

1шт.

35

H329045

LEVER

- transport idler

1шт.

36

H709832

BOLT

- NC HH 3/8 x 3/4 (Attach lever)

1шт.

37

H738013

LOCK NUT

NUT - NC hex C/L 3/8 (Attach lever)

1шт.

38

H329052

LINK

- transport clutch

1шт.

39

H738468

WASHER

- flat 3/8 (Attach link)

1шт.

40

H739771

HARDWARE

PIN - cotter 3/32 x 3/4 (Attach link)

1шт.

41

H709436

BOLT

- NC HH 5/16 x 3/4 (Attach link)

1шт.

42

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L 5/16 (Attach link)

1шт.
