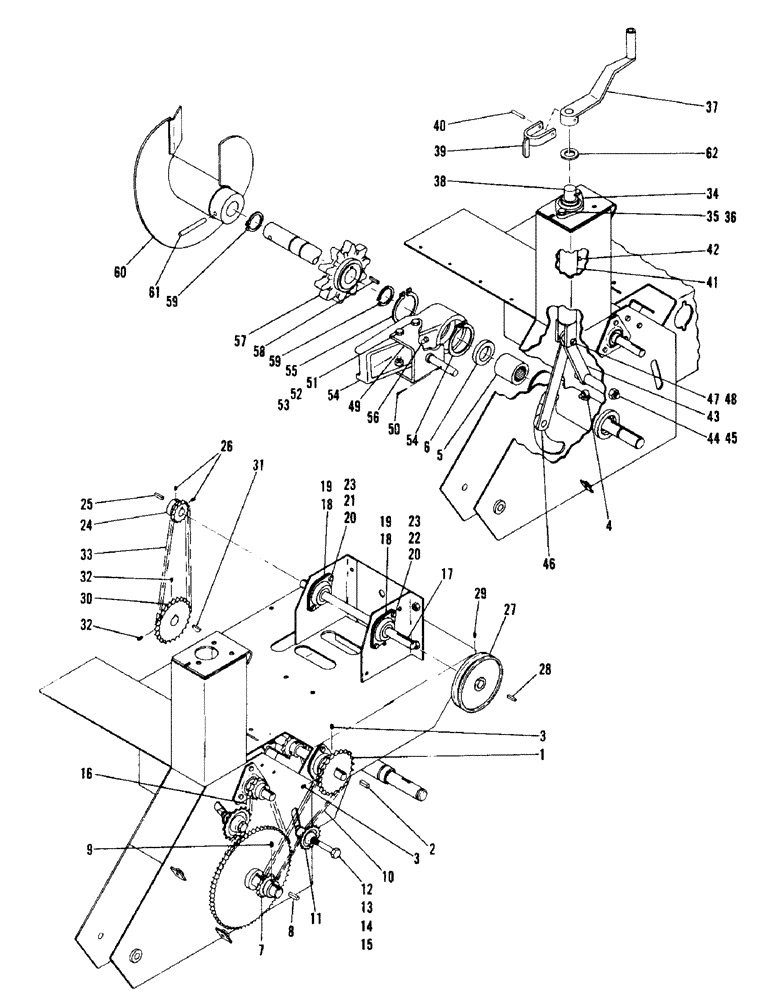

Запчасти Case S101 (06) - DIGGING CHAIN DRIVE, SPROCKETS, CHAINS

1

H308080

DRIVE SPROCKET

SPROCKET

1шт.

2

H61168

KEY

- square (3/16 x 7/8) attach sprocket

1шт.

3

H746024

SET SCREW

SCREW - set NC cup pt (3/8 x 1/2) attach sprocket

2шт.

4

H745273

FITTING

- grease 90 degree (1/8 NPT)

1шт.

5

H748038

BEARING

- needle

1шт.

6

H749127

SEAL

- grease

1шт.

7

H308015

DRIVE SPROCKET

SPROCKET

1шт.

8

H26492

KEY

- sprocket (1/4 x 3/4) attach sprocket

1шт.

9

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) attach sprkt

1шт.

10

H757500

CHAIN (AG)

CHAIN - ASA #40 (65 pitches w/conn offset)

1шт.

11

H757609

WHEEL

SPROCKET - idler

1шт.

12

H711473

BOLT

- NC HH (5/8 x 4) attach sprocket

1шт.

13

H335372

SPACER

(Attach sprocket)

1шт.

14

H738500

WASHER

- flat (5/8) attach sprocket

2шт.

15

230-42110

LOCK NUT,5/8"-11, GA

NUT - NC hex C/L (5/8) attach sprocket

1шт.

16

H757377

CHAIN (AG)

CHAIN - ASA #50 (60 pitches w/connector)

1шт.

17

H310086

SHAFT

- jack

1шт.

18

H757658

BEARING

2шт.

19

H747105

FLANGE

TTE - bearing

4шт.

20

H709436

BOLT

- NC HH (5/16 x 3/4) attach jack, Serial Range: shaft-frame

4шт.

21

H738450

WASHER

- flat (5/16) attach jack shaft to frame - bottom bolts

2шт.

22

H738609

X

WASHER - wrought (5/16) attach jack shaft to frame - top bolts

2шт.

23

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L (5/16) Attach jack shaft to frame

2шт.

24

H310128

DRIVE SPROCKET

SPROCKET

1шт.

25

H61168

KEY

- sq (3/16 x 7/8) attach sprocket

1шт.

26

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) attach sprkt

2шт.

27

H310060

SHEAVE

- driven

1шт.

28

H61168

KEY

- sq (3/16 x 7/8) attach sheave

1шт.

29

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 1/8) attach sheave

1шт.

30

H310219

SPROCKET ASSY.

SPROCKET

1шт.

31

H745885

KEY

- Woodruff (Attach sprocket)

1шт.

32

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) attach sprkt

2шт.

33

H757336

CHAIN (AG)

CHAIN - ASA #40 (60 pitches w/connector)

1шт.

34

H623686

BALL

JOINT ASSY

1шт.

35

H709451

BOLT (SPREADER)

BOLT - NC HH (5/16 x 1) attach bearing

2шт.

36

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L (5/16) Attach bearing

2шт.

37

H612903

CONTROL SCREW - depth

1шт.

38

H619445

CRANK

ASSY - depth control

1шт.

39

H604181

BRACKET

ASM - stop

1шт.

40

H742452

PIN

- roll (1/4 x 2-1/4) attach crank, Serial Range: asm-screw

1шт.

41

H618926

TUBE,10.44" L

ASM - depth control

1шт.

42

H745323

FITTING

- grease

1шт.

43

H618918

LINK

ASM - boom lift

1шт.

44

H711887

BOLT - NC HH (3/4 x 5-1/2) attach link, Serial Range: asm-frame

1шт.

45

H738062

NUT

- NC hex C/L (3/4) attach link, Serial Range: asm-frame

1шт.

46

H618900

LINK

ASM - boom lift

1шт.

47

H92015

AXLE PIN

PIN - clevis (3/8 x 1-1/4) attach both links to tube asm

1шт.

48

H739920

SPARE PART

PIN - cotter (1/8 x 3/4) attach both links to tube asm

1шт.

49

H614701

ARM

ASM - boom lift

1шт.

50

H739961

X

PIN - cotter (1/8 x 1-1/4) attach arm ASM to link asm

1шт.

51

H709857

BOLT

- NC HH (3/8 x 1) attach arm assy to boom pivot

4шт.

52

H738468

WASHER

- flat (3/8) attach arm asm to boom pivot

4шт.

53

H738013

LOCK NUT

NUT - NC hex C/L (3/8) attach arm assy to boom pivot

4шт.

54

H309385

BOOM

PIVOT CASTING - boom

1шт.

56

H745299

FITTING

- grease straight (1/4-28 NC)

1шт.

57

H207688

DRIVE SPROCKET

SPROCKET - drive

1шт.

58

H126284

KEY

- sprocket (1/4 x 7/8) attach sprocket

1шт.

59

H746552

RING

- snap (Attach sprocket)

2шт.

60

H500025

AUGER

ASM

1шт.

61

H742866

PIN

- roll (3/8 x 2-1/2) attach auger

1шт.

H748293

LINK

CONNECTOR LINK - #50 chain

1шт.

H748301

OFFSET LINK

HALF LINK - #50 chain

1шт.

H748285

CONNECTOR, ELEC

CONNECTOR LINK - #40 chain

1шт.

H754853

LINK

HALF LINK - #40 chain

1шт.

62

C17256

BEARING

WASHER - boom crank (1 above & 1 below ball joint)

2шт.
