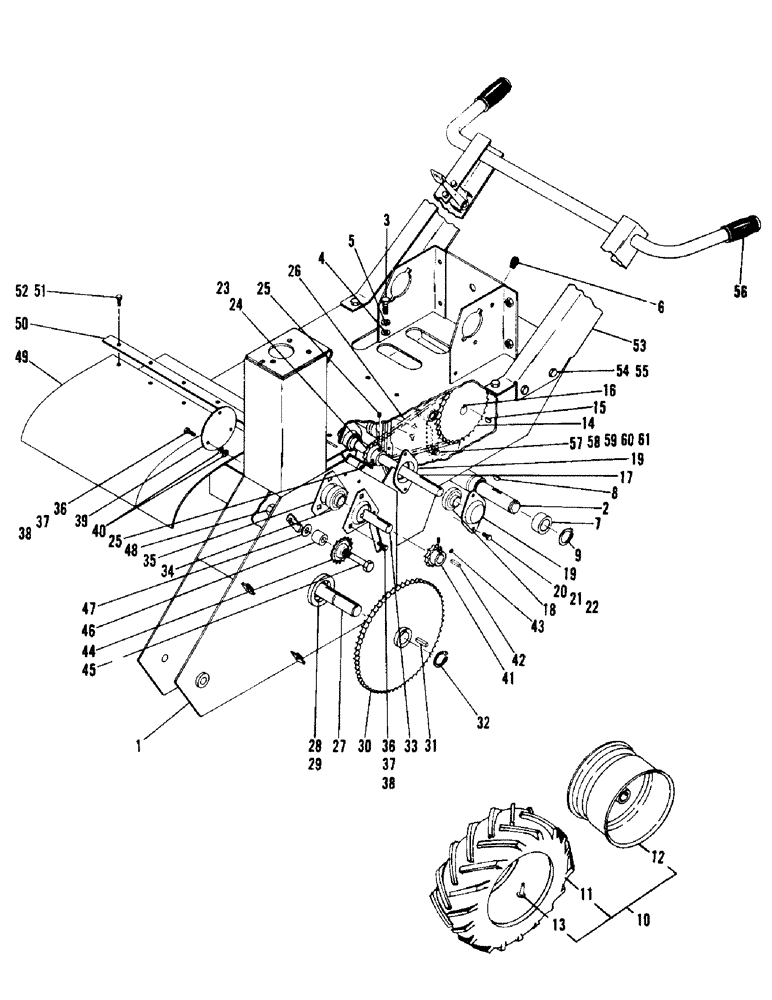

Запчасти Case S101 (04) - MAIN FRAME, REAR WHEELS

1

H617266

FRAME ASSY, 7+2 S/N 1100203 through 1104067

1шт.

H624486

FUNNEL

FRAME ASSY, 7+2 S/N 1104068 and after

1шт.

2

H612812

CENTER AXLE

TRANSAXLE ASSY (See page for breakdown)

1шт.

3

H709857

BOLT

- NC HH (3/8 x 1) att transaxle

4шт.

4

H738468

WASHER

- flat (3/8) att transaxle

4шт.

5

92-6

LOCK WASHER,3/8"

att transaxle 3/8"

4шт.

6

H182121

KNOB

- gear shift

1шт.

7

H311043

SPACER

- wheel

2шт.

8

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

(Att wheel) #A, 1/4" x 7/8", HT

2шт.

9

H746511

RING, SNAP

RING - snap (Att wheel)

2шт.

10

H612978

TIRE AND WHEEL ASSY

2шт.

11

H308247

TYRE/TIRE

TIRE (16 x 6.50-8)

1шт.

12

H308254

SPARE PART

WHEEL

1шт.

13

H28555

VALVE

STEM - valve

1шт.

14

H308098

SPROCKET ASSY.

SPRKT

1шт.

15

H745885

KEY

- Woodruff (Att sprkt)

1шт.

16

H746024

SET SCREW

SCREW - Set NC cup pt 3/8 x 1/2 att sprkt

2шт.

17

H314294

JACKSHAFT

SHAFT - jack

1шт.

18

H757658

BRG

2шт.

19

H747105

FLANGE

TTE - brg

4шт.

20

H709436

BOLT

- NC HH (5/16 x 3/4) att jack, Serial Range: shaft-frame

4шт.

21

H738450

WASHER

- flat (5/16) att, Serial Range: jack-frame

4шт.

22

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L (5/16) Attach jack shaft to frame

1шт.

23

H310128

DRIVE SPROCKET

SPRKT

1шт.

24

H61168

KEY

- square (3/16 x 7/8) att sprkt

1шт.

25

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) att sprkt

2шт.

26

H757195

CHAIN (AG)

CHAIN - ASA #40 (68 pitches w/conn)

1шт.

27

H43190

DRIVE SHAFT

SHAFT - driven, 7+2 S/N 1100203 through 1105007

1шт.

H334789

DRIVE SHAFT

SHAFT - driven, 7+2 S/N 1105008 and after

1шт.

28

H747204

BEARING, BALL

BRG - ball

1шт.

29

H746412

RING, SNAP

RING - snap (Secure brg)

1шт.

30

H43158

DRIVE SPROCKET

SPRKT - driven

1шт.

31

H126284

KEY

- square 1/4 x 7/8 (Att sprkt) 7+2 S/N 1100203 through 1105007

1шт.

H36384

KEY

- square 1/4 x 1-3/8 (Att sprkt) 7+2 S/N 1105008 and after

1шт.

32

H746511

RING, SNAP

RING - snap (Secure sprkt)

1шт.

33

H331140

SHAFT - jack (Use H308007 until exh)

1шт.

34

H757658

BRG

2шт.

35

H747105

FLANGE

TTE - brg, 7+2 S/N 1100203 through 1104067

4шт.

H333534

FLANGED BEARING

FLANGETTE - brg, 7+2 S/N 1104068 and after

4шт.

36

H709436

BOLT

- NC HH 5/16 x 3/4 att jack shaft to frame, 7+2 S/N 1100203 through 1104067

4шт.

H709436

BOLT

- NC HH 5/16 x 3/4 att jack shaft to frame, 7+2 S/N 1104068 and after

6шт.

37

H738450

WASHER

- flat 5/16 att jack shaft to frame, 7+2 S/N 1100203 through 1104067

4шт.

H738450

WASHER

- flat 5/16 att jack shaft to frame, 7+2 S/N 1104068 and after

6шт.

38

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L 5/16 Attach jack shaft to frame, 7+2 S/N 1100203 through 1104067

4шт.

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L 5/16 Attach jack shaft to frame, 7+2 S/N 1104068 and after

6шт.

39

H312173

COVER - brg, 7+2 S/N 1100203 through 1104067

1шт.

H331744

COVER

- brg, 7+2 S/N 1104068 and after

1шт.

40

H738450

WASHER

- flat (5/16)

4шт.

41

H43273

DRIVE SPROCKET

SPRKT

1шт.

42

H61168

KEY

- square (3/16 x 7/8) att sprkt

1шт.

43

H745968

SET SCREW

SCREW - set NC cup pt (1/4 x 3/8) att sprkt

2шт.

44

H757591

WHEEL

SPRKT - idler

1шт.

45

H711424

SCREW

BOLT - NC HH (5/8 x 2-3/4) att sprkt

1шт.

46

H335364

SPACER

(Att sprkt)

1шт.

47

H738500

WASHER

- flat (5/8) att sprkt

2шт.

48

230-42110

LOCK NUT,5/8"-11, GA

NUT - NC hex C/L (5/8) att sprkt

1шт.

49

H314088

MUDFLAP

FLAP - dirt

1шт.

50

H314237

STRIP

BACK STRIP - flap

1шт.

51

H709436

BOLT

- NC HH (5/16 x 3/4) att flap

5шт.

52

230-4215

NUT,5/16"-18, GA

NUT - NC hex C/L 5/16 Attach flap

5шт.

53

H612911

HANDLE

ASSY

1шт.

54

H709832

BOLT

- NC HH (3/8 x 3/4) att handle assy

6шт.

55

H738013

LOCK NUT

NUT - NC hex C/L (3/8) att handle assy

6шт.

56

H33332

GRIP

- handle

2шт.

H748285

CONNECTOR, ELEC

CONN LINK - #40 chain

1шт.

H754853

LINK

HALF LINK #40 CHAIN

1шт.

57

H333112

GUIDE

ROLLER - chain guide, 7+2 S/N 1104068 and after

1шт.

58

D36524

BUSHING

SPACER, 7+2 S/N 1104068 and after

1шт.

59

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Att roller and spacer, 7+2 S/N 1104068 and after Hex, 3/8"-16 x 2", G5

1шт.

60

195-525

WASHER,3/8", SAE

- flat 3/8 att roller and spacer, 7+2 S/N 1104068 and after

2шт.

61

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L 3/8 att roller and spacer, 7+2 S/N 1104068 and after

1шт.
