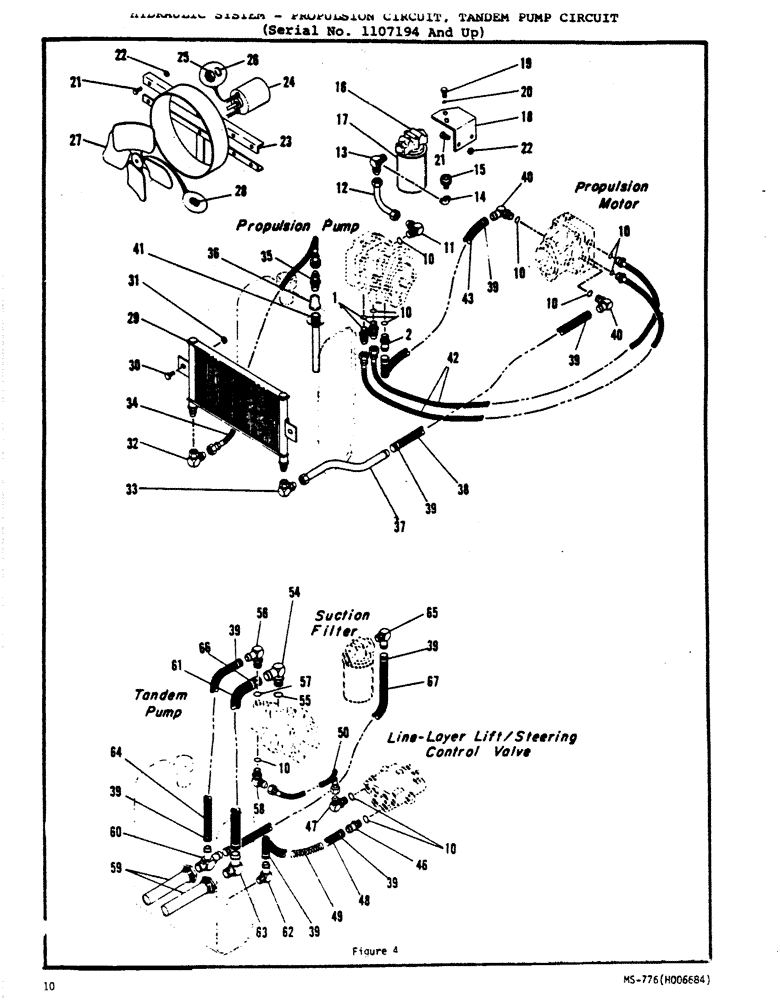

Запчасти Case P63 (10) - HYDRAULIC SYSTEM, PROPULSION CIRCUIT, TANDEM PUMP CIRCUIT ( SERIAL NO. 1107194 AND UP)

1

H191742

ADAPTER

Connector (3/4 ORB x 7/8 JIC M)

2шт.

2

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

Connector (3/4 ORB x 3/4 Hose Barb)

1шт.

11

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

- 90 degrees (3/4 ORB x 7/8 JIC M)

1шт.

12

H580845

TUBE,0.625" OD x 2.5, 3" L

(5/8 OD)

1шт.

13

H297630

ELBOW

- 90 degrees (Special)

1шт.

14

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degrees Street (1/4 Pipe)

1шт.

15

H287466

GAUGE ASSY.

Vacuum Indicator

1шт.

16

H616508

FILTER HEAD

Asm

1шт.

17

H311647

HYDRAULIC OIL FILTER

Filter Element

1шт.

18

H242453

FILTER CARTRIDGE

Filter Bracket

1шт.

19

H709113

X

HHCS (1/4" x 3/4" NC)

2шт.

20

H739193

WASHER, LOCK

Washer (1/4" NC - Lock)

2шт.

21

H709436

BOLT

HHCS (5/16 x 3/4 NC)

8шт.

22

230-4215

NUT,5/16"-18, GA

Nut - 5/16 NC - Lock

8шт.

23

H621888

MOUNTING PARTS

Fan Mounting Asm

1шт.

24

H621839

MOTOR

Fan Motor

1шт.

25

H735902

NUT

(10-32 Hex)

2шт.

26

H739185

WASHER

(#10 - Lock)

2шт.

27

H191460

FAN

Blade

1шт.

28

H753731

Set Screw (1/4 -28 Cup Point)

1шт.

29

H559609

COOLER, OIL

Oil Cooler

1шт.

30

H709857

BOLT

HHCS (3/8 X 1 NC)

2шт.

31

H738013

LOCK NUT

NUT (3/8 NC - Hex Lock)

2шт.

32

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees (3/4 JIC Fe Sw x 7/8 JIC M)

1шт.

33

H215764

ADAPTER

Elbow - 90 degrees (3/4 JIC Fe Sw x 1 1/16 JIC M)

1шт.

34

H200279

HOSE ASSY.

Hose (1/2 x 23 - 7/8 JIC Fe Sw Ends)

1шт.

35

H30742

ADAPTER

Connector (1/2 MP x 7/8 JIC M)

1шт.

36

221-384

ELBOW

- 90 degrees (1/2 To 3/4 Black Pipe)

1шт.

37

H617118

Tube (34/x OD) 0.75" OD

1шт.

38

H317305

HOSE

(3/4 x 72)

1шт.

39

H55038

HOSE CLAMP

10шт.

40

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

Elbow - 90 degrees (3/4 ORB x 3/4 Hose Barb)

2шт.

41

H558742

Stand Pipe Asm

1шт.

42

H317289

HOSE

(1/2 x 48 - 3/4 ORB x 7/8 JIC Fe Sw)

2шт.

43

H309039

LARGE HOSE

Hose (3/4 x 38)

1шт.

46

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

Connector (3/4 ORB x 3/4 Hose Barb)

1шт.

47

H168609

ELBOW

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

48

H317321

HOSE

(3/4 x 13)

1шт.

49

H309906

SPRING

Hose Spring

1шт.

50

H207365

HOSE

(3/8 x 19 - 3/4 JIC Fe Sw Ends)

1шт.

54

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded

1шт.

55

H745182

O-RING

O Ring

1шт.

56

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

Elbow - 90 degrees (7/8 ORB x 3/4 Hose Barb)

1шт.

57

H745174

O-RING

O Ring

1шт.

58

H168609

ELBOW

- 90 deg. (3/4 ORB x 3/4 JIC M)

1шт.

59

H584631

FILTER ASSY

Filter Asm

2шт.

60

D65489

FITTING

Tee (1 MP x 3/4 Hose Barb)

1шт.

61

H96693

HOSE

(1 x 30)

1шт.

62

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degrees (3/4 MP x 3/4 Hose Barb)

1шт.

63

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

Connector - 90 degrees (1" mp x 1 Hose Barb)

1шт.

64

H317313

HOSE ASSY.

Hose (3/4 x 28)

1шт.

65

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degrees (3/4 Mp x 3/4 Hose Barb)

1шт.

66

H78329

HOSE CLAMP

2шт.

67

H317271

HOSE

(3/4 x 30)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O Ring

11шт.
