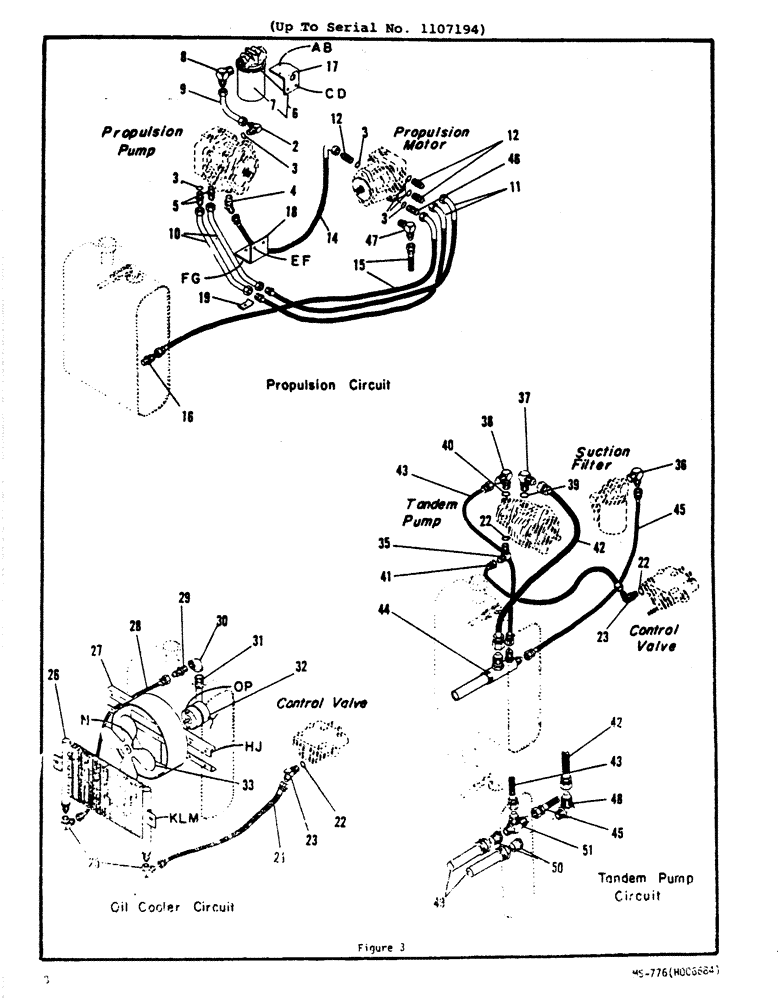

Запчасти Case P63 (08) - HYD SYS PROPULSION CIRCUIT, OIL COOLER CIRCUIT, TANDEM PUMP CIRCUIT (UP TO S/N 1107194)
№
Артикул
Название
Примечание
Количество
2
86527
90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB
Adapter - 90 degrees
1шт.
4
H234625
ELBOW
Adapter - 45 degrees
1шт.
5
H191742
ADAPTER
- Straight
2шт.
6
H616508
FILTER HEAD
Filter Asm, Replaces H568881
1шт.
7
H311647
HYDRAULIC OIL FILTER
Filter Element
1шт.
8
277165
ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF
Adapter - 90 degrees
1шт.
9
H580845
TUBE,0.625" OD x 2.5, 3" L
- "In" Port - Propulsion Pump
1шт.
10
H580852
Tube - Port "A" & "B" 0.625" OD x 13.312, 1.5" L
2шт.
11
H254573
HOSE
(1/2" x 44 - 7/8" JIC Male - 7/8" Fe. Sw. - 90 degrees Bent Tube)
2шт.
12
H191742
ADAPTER
- Straight
3шт.
14
H247189
Hose (1/2" x 57" - 7/8" Fe. Sw. - 90 degrees Bent Tube)
1шт.
15
H248641
HOSE
(1/2" x 41" - 7/8" Fe. Sw. - 90 degrees Bent Tube), Serial Range: -3020
1шт.
15
H250720
Hose (3/4" x 37" - 1 1/16" JIC Fe. Sw. - 7/8" JIC Fe. Sw.), Start Serial: 3020
1шт.
16
H30742
ADAPTER
- Straight, Serial Range: -3020
1шт.
16
H250746
ADAPTER
- Straight 3020 to, Start Serial: 3100
1шт.
16
H169995
TUBE NUT
Adapter - Straight, Start Serial: 3100
1шт.
17
H242453
FILTER CARTRIDGE
Filter Bracket
1шт.
18
H242461
Clamp Bracket
1шт.
19
H45468
CLAMP
Tube Clamp
1шт.
23
H171785
ELBOW
Adapter - 45 degrees
2шт.
24
H248492
HYDRAULIC HOSE,9.52 mm ID x 736.60 mm, SAE 100R1
9.52 mm ID x 736.60 mm, SAE 100R1
1шт.
25
H174599
TUBE NUT
Adapter - 90 degrees
2шт.
26
H559609
COOLER, OIL
Oil Cooler Asm
1шт.
27
H559898
MOUNTING PARTS
Oil Cooler Mounting Bracket
1шт.
28
H205948
HOSE
(3/8" x 22" - 3/4" JIC Fe. Sw. - Both Ends)
1шт.
29
132341
HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT
CONNECTOR, HYD., 3/4"-16, 37° x 1/2"-14, NPTF
1шт.
30
221-384
ELBOW
(1/2" To 3/4" Pipe)
1шт.
31
H558742
Stand Pipe Asm
1шт.
32
H620716
MOTOR
Fan Motor
1шт.
33
H276832
FAN
Blade
1шт.
35
H168609
ELBOW
Adapter 90 degrees
1шт.
36
H168815
ADAPTER
90 degrees
1шт.
37
286217
90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB
Adapter 90 degrees
1шт.
38
H195313
X
Adapter 90 degrees
1шт.
39
H745182
O-RING
O Ring
1шт.
40
H745174
O-RING
O Ring
2шт.
41
H207365
HOSE
(3/8" x 19" - 3/4" JIC Fe. Sw. - Both Ends)
1шт.
42
H248997
Hose (1" x 28" - 1 5/16" JIC Fe. Sw. - Both Ends)
1шт.
43
H246298
HYDRAULIC HOSE,12.70 mm ID x 660.40 mm, SAE 100R1
12.70 mm ID x 660.40 mm, SAE 100R1
1шт.
43
H250340
HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1
Suction, Used on 30+4 Special Only 19.05 mm ID x 660.40 mm, SAE 100R1
1шт.
Ref. 43 should use H433072.
1шт.
44
H584219
Manifold Asm, Serial Range: -3020
1шт.
45
H282863
HYDRAULIC HOSE,19.05 mm ID x 762.00 mm, SAE 100R1
(1 1/16" JIC Fe. Sw. - Both Ends) 19.05 mm ID x 762.00 mm, SAE 100R1
1шт.
46
H191742
ADAPTER
- Straight, Serial Range: -3020
2шт.
47
86527
90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB
Adapter - 90 degrees, Start Serial: 3020
1шт.
48
H218461
ELBOW
Adapter - 90 degrees, Start Serial: 3020
1шт.
49
H584631
FILTER ASSY
Filter Screen, Start Serial: 3020
2шт.
50
H749879
BUSHING
- 1" To 3/4", Start Serial: 3020
1шт.
51
H218511
TEE
Adapter - Tee, Start Serial: 3020
1шт.
a
H709113
X
HHCS (1/4" x 3/4" NC)
2шт.
b
H739193
WASHER, LOCK
Lock Washer (1/4")
2шт.
c
H709436
BOLT
HHCS (5/16" x 3/4" NC)
2шт.
d
230-4215
NUT,5/16"-18, GA
Nut (5/16" NC)
2шт.
e
H709832
BOLT
HHCS (3/8" x 3/4" NC)
2шт.
f
H738013
LOCK NUT
Nut (3/8" NC)
8шт.
g
H709873
BOLT
HHCS (3/8" x 1 1/2" NC)
1шт.
h
H709436
BOLT
HHCS (5/16" x 3/4" NC)
4шт.
j
230-4215
NUT,5/16"-18, GA
Nut (5/16" NC - Lock)
4шт.
k
H709857
BOLT
HHCS (3/8" x 1" NC)
2шт.
l
H738468
WASHER
Flat Washer (3/8")
2шт.
m
H738013
LOCK NUT
Nut (3/8" NC - Lock)
2шт.
n
H753277
X
Set Screw (#10-32 x 3/8" NF - Cup Point)
1шт.
o
H735902
NUT
(#10-32 NF)
2шт.
p
H739185
WASHER
Lock Washer (#10)
2шт.
3
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
O Ring
8шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
O Ring
3шт.
Выбрано товаров: 66
