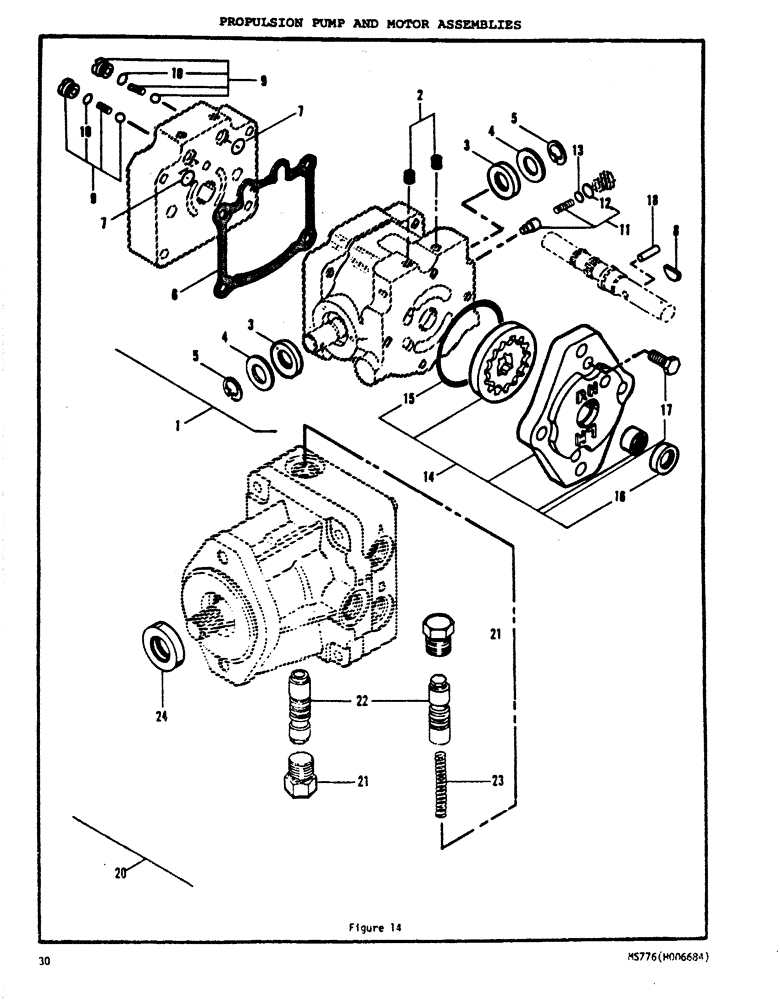

Запчасти Case P63 (30) - PROPULSION PUMP AND MOTOR ASSEMBLIES

1

H606814

PUMP

Propulsion Pump Asm

1шт.

2

H746214

PLUG

(1/8-27 Socket Hd-Pipe)

4шт.

3

H755884

SEAL

Shaft Seal

2шт.

4

H249599

WASHER

2шт.

5

H746487

RING, SNAP

Snap Ring

2шт.

6

H255059

GASKET

1шт.

7

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O Ring

2шт.

8

H755538

WOODRUFF KEY

Key - Woodruff #605 (up to Serial #3074)

1шт.

9

H591537

KIT

Check Valve Kit

2шт.

10

H745141

O-RING

O Ring

1шт.

11

H620815

Change Relief Valve Kit

1шт.

12

H745141

O-RING

O Ring

1шт.

13

D63406

SHIM

Pack

1шт.

14

H619858

KIT

Change Pump Kit (Includes Item 18)

1шт.

15

H756650

O-RING

O Ring

1шт.

16

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

Shaft Seal

1шт.

17

H709444

BOLT

HHCS (5/16" x 7/8" NC - Grade 5)

4шт.

18

N7060

AXLE PIN

1шт.

20

H619676

FASTENER

Propulsion Motor Asm

1шт.

21

H60525

PLUG

(Includes O Ring)

2шт.

22

H620823

VALVE

Accelerator Valve Asm

2шт.

23

H249607

SPRING

Accelerator Spring

1шт.

24

H755892

SEAL ASSY.

Shaft Seal

1шт.
