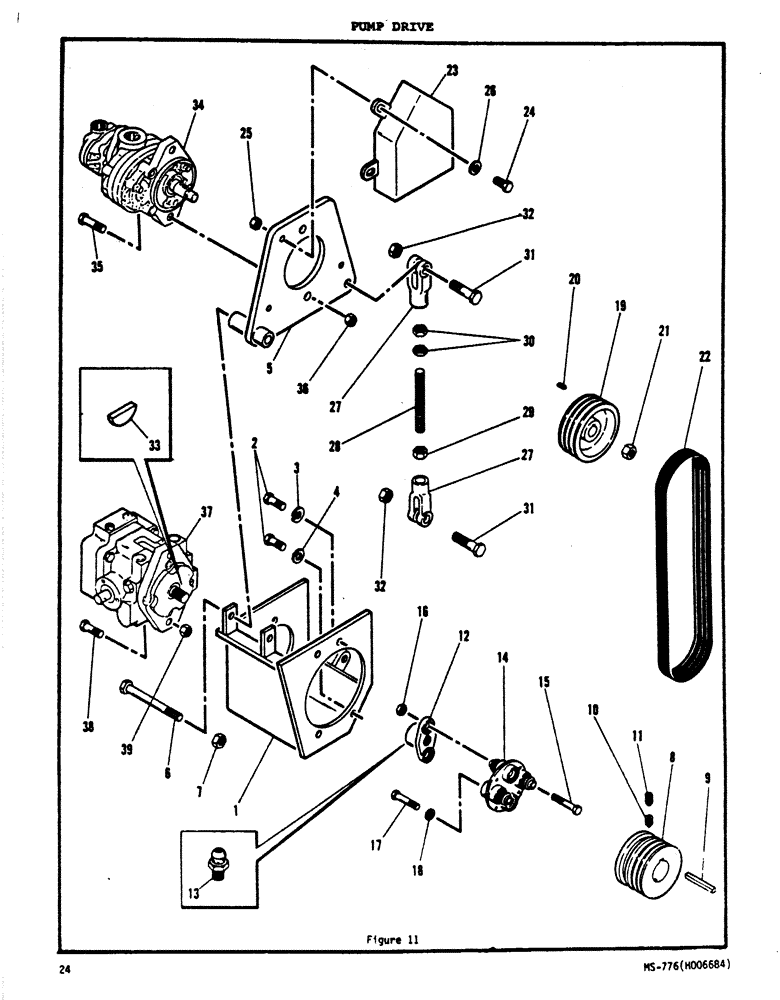

Запчасти Case P63 (24) - PUMP DRIVE

1

H579714

BRACKET

Pump Mounting Bracket

1шт.

2

H709865

BOLT

HHCS (3/8 X 1 1/4)

4шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

H100560

Washer - Seal

2шт.

5

H581827

Pump Mounting Plate

1шт.

6

H710780

BOLT

HHCS (1/2 x 5 NC)

1шт.

7

H738039

LOCK NUT

Nut (1/2 NC - Lock)

1шт.

8

H241166

SHEAVE

- Engine

1шт.

9

H49387

KEY

- Square (3/8 x 2 3/4)

1шт.

10

H746800

SET SCREW

SHSS (3/8 x 3/8 - Cone Point)

1шт.

11

H752311

SET SCREW

SHSS (3/8 x 3/8 - Dog Point)

1шт.

12

H238501

FLANGE

- Keyed, Serial Range: -3074

1шт.

For replacement of P/N H581058 pump, order: P/N H585513 pump and splined flange assembly.

1шт.

12

H251835

FLANGE

- Splined, Start Serial: 3074

1шт.

13

H745299

FITTING

Grease Fitting

1шт.

14

H580464

COUPLING

Coupler

1шт.

15

H709907

BOLT

HHCS (3/8 x 2 1/4 NC)

2шт.

16

H738013

LOCK NUT

Nut (3/8 NC - Lock)

2шт.

17

H709899

SPARE PART

HHCS (3/8 x 2 NC)

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

H241364

SHEAVE

- Pump

1шт.

20

H246751

KEY

- Square (1/4 x 7/8)

1шт.

21

H738195

X

Nut (5/8 NF - Lock)

1шт.

22

H243162

V-BELT,3 Ribs

Drive 3 Ribs

1шт.

23

H582072

Belt Cover

1шт.

24

H709469

X

HHCS (5/16 x 1 1/4 NC)

3шт.

25

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC - Lock)

3шт.

26

H738450

WASHER

- Flat (5/16)

3шт.

27

H310706

CLEVIS COUPLING

Clevis, Start Serial: S635098

2шт.

For earlier units, order Ref. 27, 28, 29 and 30.

1шт.

28

H311845

ADJUSTMENT SCREW

Rod - Adjust, Start Serial: S635098

1шт.

For earlier units, order Ref. 27, 28, 29 and 30.

1шт.

29

H737619

LOCK NUT

Nut (1/2 NF - Lock), Start Serial: S635098

1шт.

For earlier units, order Ref. 27, 28, 29 and 30.

1шт.

30

H736801

NUT

(1/2 NF - Jam), Start Serial: S635098

2шт.

For earlier units, order Ref. 27, 28, 29 and 30.

1шт.

31

H710665

BOLT

HHCS (1/2 x 2 NC)

2шт.

32

H738039

LOCK NUT

Nut (1/2 NC - Lock)

2шт.

33

H755538

WOODRUFF KEY

Key - Woodruff, Serial Range: -3074

1шт.

For replacement of P/N H581058 pump, order: P/N H585513 pump and splined flange assembly.

1шт.

34

H581728

PUMP

Tandem Pump (See Figure 32)

1шт.

35

H710657

BOLT

HHCS (1/2 x 1 3/4 NC)

2шт.

36

H738039

LOCK NUT

Nut (1/2 NC - Lock)

2шт.

36

H738039

LOCK NUT

Nut (1/2 NC - Lock)

2шт.

37

H581058

Propulsion Pump - See Page 30), Serial Range: -3074

1шт.

For replacement of P/N H581058 pump, order: P/N H585513 pump and splined flange assembly.

1шт.

37

H606814

PUMP

Propulsion Pump (See Figure 30), Start Serial: 3074

1шт.

38

H710657

BOLT

HHCS (1/2 x 1 3/4 NC)

2шт.

39

H738039

LOCK NUT

Nut (1/2 NC Lock)

2шт.
