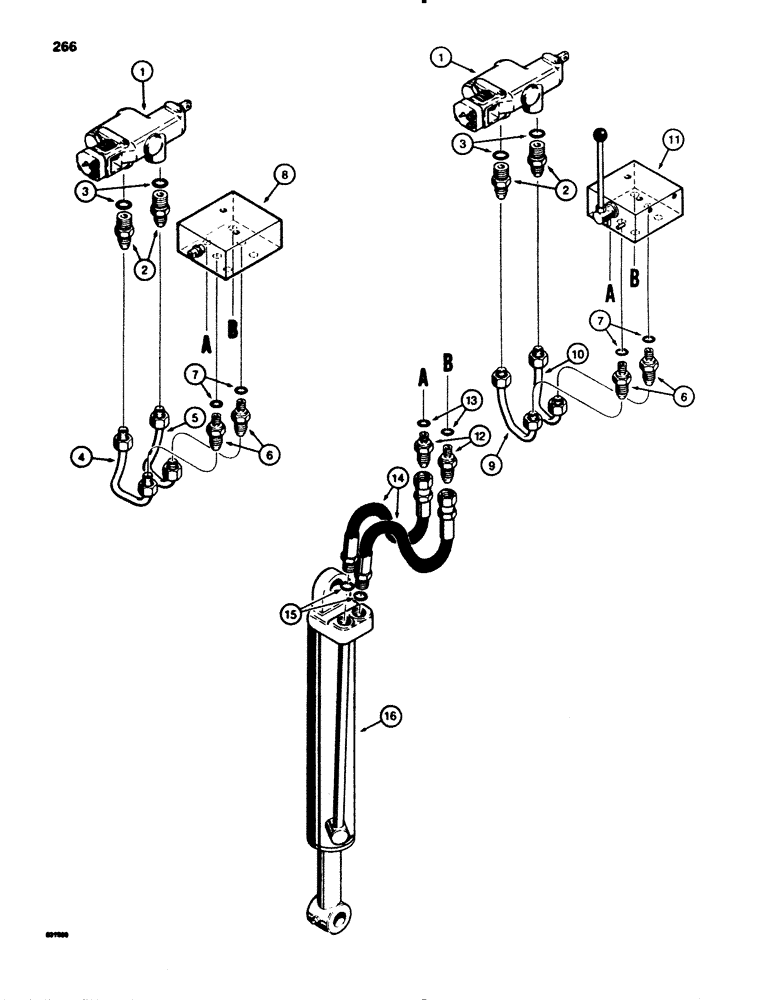

Запчасти Case P60 (266) - BACKFILL BLADE LIFT HYD. CIRCUIT, TRACTOR W/ LINE LAYER & BACKFILL BLADE, & ONE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

H537647

LOCK VALVE

CONTROL VALVE - one spool, Cessna No. 30501-AZ, parts list figure 270

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

H562132

TUBE,0.5" OD x 5, 1.125" L

- valve to selector, rear, used with H594887 selector valve only

1шт.

5

H562165

TUBE,0.5" OD x 5.625, 1.125" L

- valve to selector, front, used with H594887 selector valve only

1шт.

6

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 7

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

H594887

VALVE

SELECTOR VALVE - push-pull see figure 254 for mounting, parts list figure 274, no longer used, for service order refs. 9 - 11

1шт.

9

H616805

TUBE,0.5" OD x 4.88, 1.12" L

- valve to selector, rear, used with H616763 selector valve only

1шт.

10

H616813

TUBE,0.5" OD x 5.25, 1.12" L

- valve to selector, front, used with H616763 selector valve only

1шт.

11

H616763

LOCK VALVE

SELECTOR VALVE - rotational, see figure 254 for mounting, parts list figure 274

1шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

14

H205997

HOSE

- 7" (178 mm) long, selector valve to lift cylinder, Includes: Ref. 15

2шт.

16

H559435

CYLINDER BLOCK

CYLINDER ASSEMBLY - blade lift, parts list figure 278

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.
