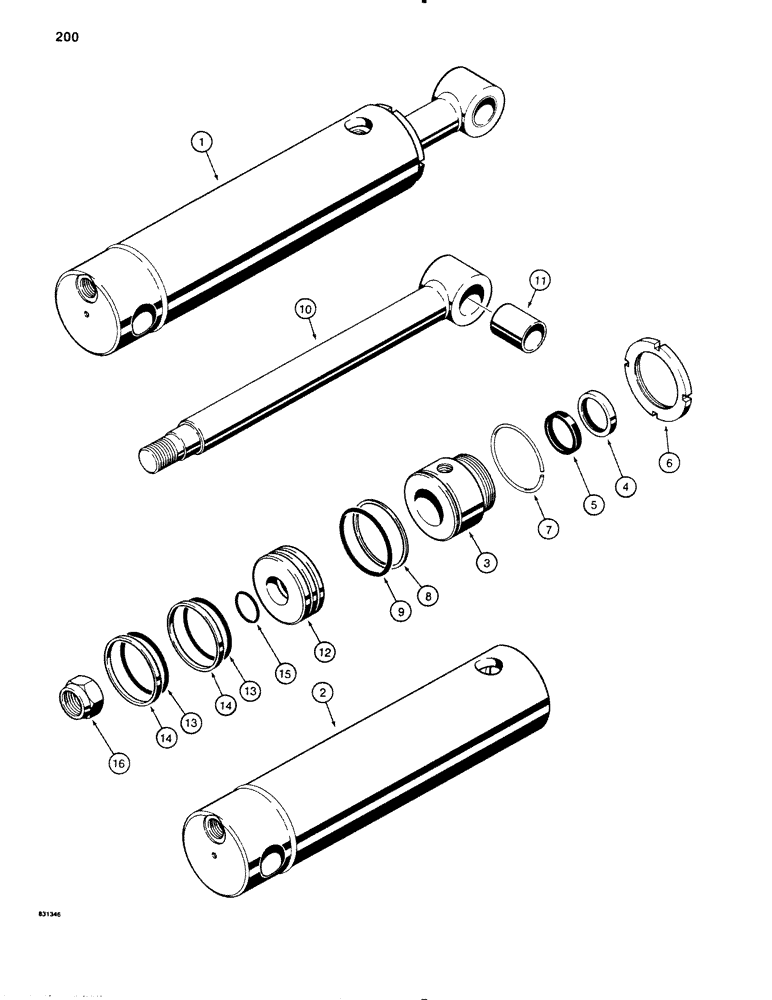

Запчасти Case P60 (200) - H530519 BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

H530519

CYLINDER BLOCK

CYLINDER - boom lift, 3" (76 mm) ID x 10" (254 mm) stroke, Cessna No. 41093-FB, Includes: Ref. 2-16

1шт.

2

H122218

SLEEVE CYLINDER

TUBE - cylinder

1шт.

3

H120360

BEARING

GLAND - cylinder

1шт.

4

A41785

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N H122234

1шт.

5

H220558

SEAL

- rod

1шт.

Part of seal kit P/N H122234

1шт.

6

H745794

BEARING LOCK NUT

NUT - lock, gland

1шт.

7

H52761

RING

RETAINING RING - gland

1шт.

Part of seal kit P/N H122234

1шт.

8

H745760

WASHER

BACKUP RING - gland O-ring, outer

1шт.

Part of seal kit P/N H122234

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, outer

1шт.

Part of seal kit P/N H122234

1шт.

H570184

ROD

ASSEMBLY - piston, Includes: Ref. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

11

H220624

RING

BUSHING - rod eye

1шт.

12

H120147

PISTON ASSY.

PISTON - cylinder

1шт.

13

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- piston, outer

2шт.

Part of seal kit P/N H122234

1шт.

14

H120188

RING

SEAL - piston, outer

2шт.

Part of seal kit P/N H122234

1шт.

15

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

- piston seal, inner

1шт.

Part of seal kit P/N H122234

1шт.

16

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - hex, self-locking, 1-1/8" - 12 NF

1шт.

H122234

SEAL ASSY.

KIT - seal, Includes: Refs. 4, 5, 7, 8, 9, 13, 14 and 15

1шт.
