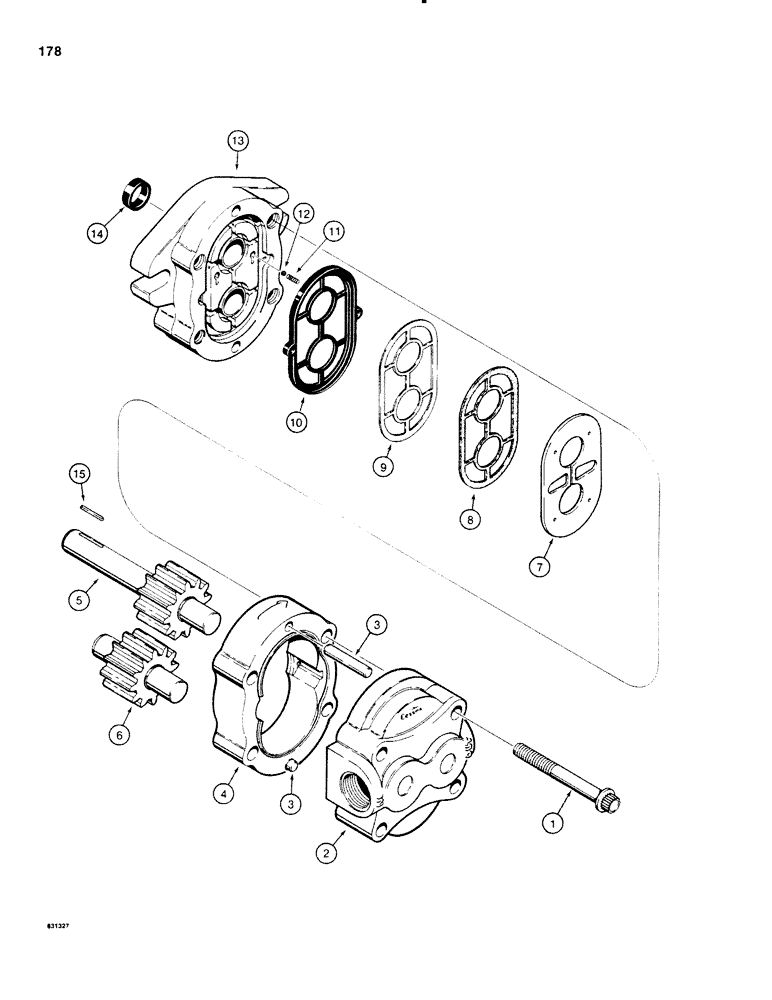

Запчасти Case P60 (178) - H575886 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

H575886

PUMP

- hydraulic, Cessna No. 24206-LAB, counterclockwise rotation, Includes: Ref. 1-15

1шт.

1

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-1/2"

4шт.

2

H235937

BACK PLATE

HOUSING - port end

1шт.

3

H755413

DOWEL

PIN - dowel

2шт.

4

H235960

BODY

HOUSING - center

1шт.

5

H235945

GEAR

- drive

1шт.

6

H235952

GEAR

- idler

1шт.

7

H89524

DIAPHRAGM

- pump

1шт.

Part of seal kit P/N H218388

1шт.

8

H218362

GASKET

- backup

1шт.

Part of seal kit P/N H218388

1шт.

9

H218354

GASKET

- protector

1шт.

Part of seal kit P/N H218388

1шт.

10

H218347

SEAL

- diaphragm

1шт.

Part of seal kit P/N H218388

1шт.

11

F9883

SPRING

- ball

2шт.

Part of seal kit P/N H218388

1шт.

12

211-306

BALL,7/32" Dia

- steel

2шт.

Part of seal kit P/N H218388

1шт.

13

H371922

PLATE ASSY.

HOUSING - drive end

1шт.

14

89540

SEAL - shaft

1шт.

Part of seal kit P/N H218388

1шт.

15

F37909

KEY

- drive, Serial Range: pump-sheave

1шт.

H218388

SEAL ASSY.

KIT - seal, Includes: Refs. 7 - 12 and 14

1шт.
