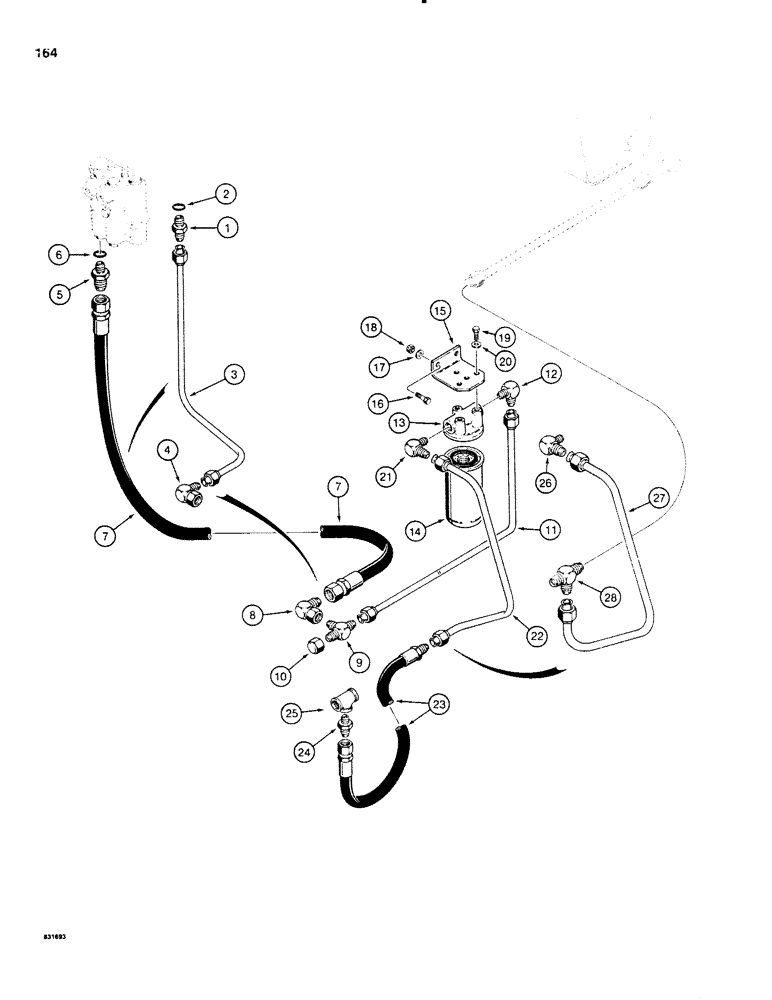

Запчасти Case P60 (164) - HYDRAULIC OIL FILTER CIRCUIT, USED ON 30+4 BEFORE S/N 5210 AND USED ON 40+4 BEFORE S/N 3930 (35) - HYDRAULIC SYSTEMS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, used on 30+4 before SN 4012, Incl. Ref 2 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

3

H560052

TUBE,0.5" OD x 15.375, 6.437" L

- valve to tee, used on 30+4 before SN 4012, used with ref. 1 and ref. 4 only

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel, used with H560052 tube only

1шт.

5

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, if used, Includes: Ref. 6

1шт.

7

H215772

HOSE

- valve to tee, 39" (991 mm) long, 30+4 only

1шт.

7

H242859

HOSE

- valve to tee, 45" (1143 mm) long, 40+4 only

1шт.

8

218-5225

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel, if used

1шт.

9

218-594

TEE,3/4"-16, 37 Degree

- tube

1шт.

10

218-755

CAP,37 Degree, 3/4"-16

Tee 37º, 3/4"-16

1шт.

11

H560037

TUBE,0.5" OD x 7.25, 3.125" L

- tee to filter inlet, used on 30+4 before SN 4012

1шт.

11

H569897

TUBE,0.5" OD

- tee to filter inlet, used on 30+4 SN 4012 to 4700 and on 40+4 before SN 3600

1шт.

11

5800688

TUBE - tee to filter inlet, used on 30+4 SN 4700 to 5210 and on 40+4 SN, Serial Range: 3600-3930

1шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

14

H311654

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

15

H191528

BRACKET

- filter mounting

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

18

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

22

H559948

TUBE,0.5" OD

- filter, return, used on 30+4 before SN 4012, used with ref. 23 only

1шт.

22

H571950

TUBE,0.5" OD

- filter, return, used on 30+4 SN 4012 to 4700, used with ref. 23 only

1шт.

22

H569939

TUBE,0.5" OD

- filter, return, used on 40+4 before SN 3600, used with ref. 23 only

1шт.

23

H195263

HOSE

- tube to return tee, 9" (229 mm) long, used with ref. 22 only

1шт.

24

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, hose to ref. 25 tee

1шт.

25

221-424

TEE,1/2" NPT

- pipe, , used before 30+4 SN 4700 and 40+4 before SN 3600 1/2" NPT

1шт.

See figures 84 and 86 for remainder of return to reservoir circuit.

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2" NPT at filter, use with refs. 27 and 28 only

1шт.

27

H580209

TUBE,0.625" OD x 15, 9.75" L

- filter to reservoir tee, used on 30+4 SN 4700 to 5210 and on 40+4 SN 3600 to 3930

1шт.

28

218-595

TEE,7/8"-14, 37 Degree

- tube, male, used on 30+4 SN 4700 to 5210 and on 40+4 SN 3600 to 3930

1шт.

See figures 84 and 86 for remainder of return to reservoir circuit.

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
