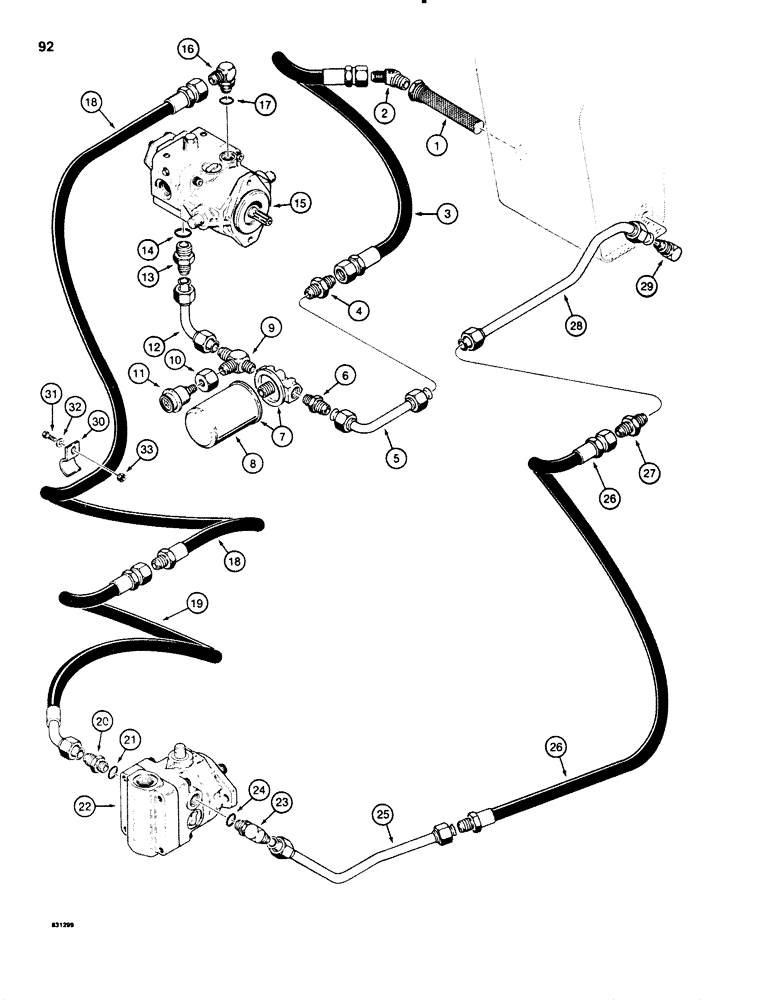

Запчасти Case P60 (092) - HYDROSTATIC PROPULSION SUCTION AND DRAIN CIRCUIT, USED ON 30+4 SPECIAL SERIAL NUMBER 3751 AND AFTER (29) - HYDROSTATIC DRIVE

1

H151399

FILTER STRAINER

SCREEN - suction filter, tank

1шт.

2

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1" NPT at screen

1шт.

3

H277830

HOSE ASSY.

HOSE - suction, 20" (508 mm) long

1шт.

4

218-855

CONNECTOR, ELEC,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, male

1шт.

5

H598011

TUBE,0.75" OD x 7.375, 3.25" L

- suction

1шт.

6

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male, to 3/4" NPT

1шт.

7

H616508

FILTER HEAD

BASE ASSEMBLY - filter

1шт.

8

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

9

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- male, 3/4" NPT at filter

1шт.

10

H288993

CAP

- special, tee

1шт.

11

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

12

H598029

TUBE,0.75" OD x 4.812, 3.25" L

- suction, filter to pump

1шт.

13

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

15

H596304

PUMP

ASSEMBLY - propulsion, Sundstrand, parts list figures 98 and 100

1шт.

16

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, Includes: Ref. 17

1шт.

18

H244418

HOSE ASSY.

HOSE - pump to hose, drain, 38" (965 mm) long

1шт.

19

H256487

HOSE ASSY.

HOSE - hose to motor, drain, 26" (660 mm) long

1шт.

20

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, male, Includes: Ref. 21

1шт.

22

H585299

MOTOR

ASSEMBLY - propulsion, Sundstrand, parts list figure 104

1шт.

23

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, Includes: Ref. 24

1шт.

25

H598003

TUBE ASSY.,0.75" OD

TUBE - motor to hose, return

1шт.

26

H195420

HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1

HYDRAULI HOSE , Return, Tube to Tank 19.05 mm ID x 660.40 mm, SAE 100R1

1шт.

27

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, male

1шт.

28

H597799

TUBE,0.75" OD

- return, hose to tank

1шт.

29

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 3/4" NPT at tank

1шт.

30

H247965

CLAMP

- tube, if used

1шт.

31

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

1шт.

32

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

1шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
