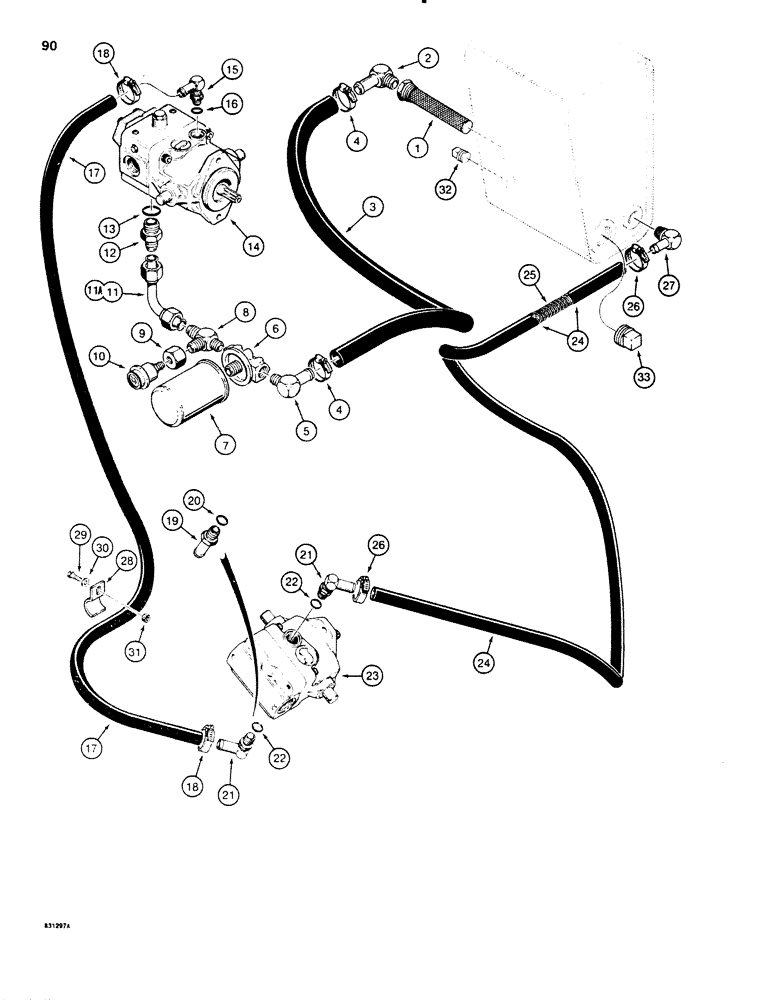

Запчасти Case P60 (090) - HYDROSTATIC PROPULSION SUCTION AND DRAIN CIRCUIT, USED ON 30+4 SERIAL NUMBER 1139802 AND AFTER (29) - HYDROSTATIC DRIVE

1

H151399

FILTER STRAINER

SCREEN - suction filter, tank

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, 1" NPT at screen

1шт.

3

H309047

HOSE

- suction, 1" (25 mm) ID x 39" (991 mm) long, used on 30+4 SN 1163236 and after

1шт.

3

H63289

HOSE

- suction, 1" (25 mm) ID x 51" (1295 mm) long, used on 30+4 SN 1163236 and after

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

5

217-331

FITTING,90 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree, 3/4" NPT at filter

1шт.

6

H616508

FILTER HEAD

BASE ASSEMBLY - filter

1шт.

7

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

8

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- male, 3/4" NPT at filter

1шт.

9

H288993

CAP

- special, tee

1шт.

10

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

11

H432625

TUBE ASSY.,19.05 mm OD x 122, 82.5 mm L

TUBE - suction, filter to pump

1шт.

11a

H598029

TUBE,0.75" OD x 4.812, 3.25" L

- suction, filter to pump, 30+4 Deutz SN 1232821 and after

1шт.

12

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

14

H596304

PUMP

ASSEMBLY - propulsion, Sundstrand, parts list figures 98 and 100

1шт.

15

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 90 degree, adjustable, Includes: Ref. 16

1шт.

17

H338095

HOSE

- pump to motor, drain, 3/4" (19 mm) ID x 61" (1549 mm) long

1шт.

17

H324046

HOSE ASSY.

HOSE - pump to motor, 3/4" (19 mm) ID x 75" (1905 mm) long, used on 30+4 Deutz SN 123821 and after

1шт.

18

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

19

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, if used, Includes: Ref. 20

1шт.

21

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 90 degree, adjustable, if used, Includes: Ref. 22

1-2шт.

23

H585299

MOTOR

ASSEMBLY - propulsion. Sundstrand, parts list figure 104

1шт.

24

H324046

HOSE ASSY.

HOSE - return, notor to tank, 3/4" (19 mm) ID x 75" (1905 mm) long, if used

1шт.

24

H338087

HOSE

- return, motor to tank, 3/4" (19 mm) ID x 66" (1676 mm) long, if used

1шт.

25

H309906

SPRING

- hose, internal, if used

3шт.

26

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

27

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree, 3/4" NPT at tank

1шт.

28

H247965

CLAMP

- tube, if used

1шт.

29

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

1шт.

30

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

1шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16' - 18 NC, if used

1шт.

32

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- 1-1/4" NPT, used on 30+4 Deutz SN 1232

1шт.

33

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" NPT, used on 30+4 Deutz SN 1232821 and after

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
