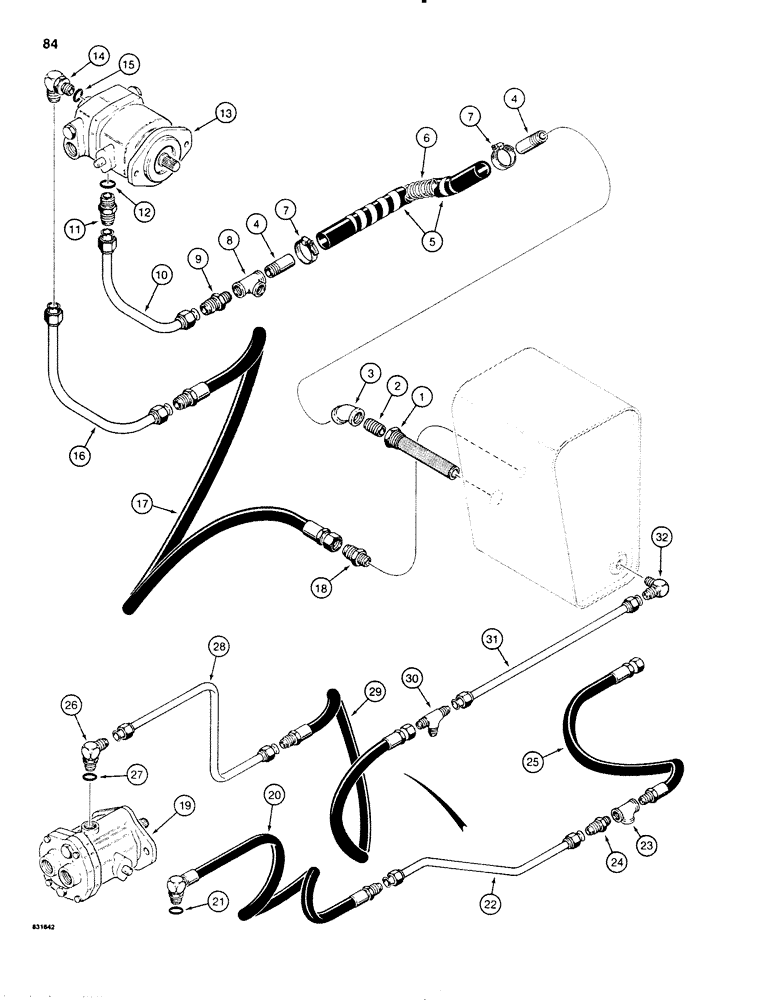

Запчасти Case P60 (084) - HYDROSTATIC PROPULSION SUCTION AND DRAIN CIRCUIT, USED BEFORE 30+4 S/N 4790 AND BEFORE 40+4 S/N 3600 (29) - HYDROSTATIC DRIVE

1

H151399

FILTER STRAINER

SCREEN - suction filter, tank

1шт.

2

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPLE - pipe, 1" NPT

1шт.

3

221-370

ELBOW

- 45 degree, 1" NPT

1шт.

4

H195271

NIPPLE, LUBE

NIPPLE - special

2шт.

5

H195412

HOSE

- suction, 19" (483 mm) long

1шт.

5

H220970

HOSE

- suction, 17-1/2" (445 mm) long, 30 + 4 Special only

1шт.

6

H203190

VALVE SPRING

SPRING - hose, internal

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

8

221-453

TEE

- pipe, reducing

1шт.

9

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

10

H560003

TUBE,0.75" OD x 3.625, 4.625" L

- suction, used on 30 + 4 only

1шт.

10

H563528

TUBE,0.75" OD

- suction, used on 30 + 4 Special only

1шт.

10

H569426

TUBE,0.75" OD x 4.625, 6.625" L

- suction, used on 40 + 4 only

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

13

H581215

PUMP

PUPM ASSEMBLY - propulsion, Vickers, parts list figures 94 and 96

1шт.

14

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

16

H560011

TUBE ASSY.,0.75" OD x 4.375, 7" L

TUBE - return, pump to hose, used on 30 + 4 only

1шт.

16

H569418

TUBE,0.75" OD

- return, pump to hose, used on 40 + 4 only

1шт.

16

H563536

TUBE,0.75" OD

- return, pump to hose, used on 30 + 4 Special only

1шт.

17

H201046

HOSE ASSY.

HOSE - return, 29" (737 mm) long

1шт.

18

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

19

H557942

MOTOR HOUSING

MOTOR ASSEMBLEY - propulsion, Vickers, parts list figure 102

1шт.

20

H197491

HOSE

- return, with 90 degree adjustable elbow, 45" (1143 mm) long, motor to tube, used on 30 + 4 Special and 40 + 4, used before 30 + 4 SN 4700 and replaced by items 26 to 31 below, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

22

H559963

TUBE,0.5" OD

- return, hose to tee, used before 30 + 4 SN 4150 and on 30+4 Special with refs. 20 to 24

1шт.

22

H571232

TUBE,0.5" OD

- return, used on 30 + 4 SN 4150 thru 4700 with refs. 20 to 24

1шт.

22

H569913

TUBE,0.5" OD

- return, used on 40 + 4 only

1шт.

23

221-424

TEE,1/2" NPT

- pipe, , used with refs. 20 to 24 1/2" NPT

1шт.

See figure 104 for remainder of oil filter circuit.

1шт.

24

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male, used with refs. 20 to 24

1шт.

25

H195404

HOSE

H0SE - return, 11" (279 mm) long, used on 30 + 4 before SN 4700 and on 40 + 4 and 30 + 4 Special

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with refs. 26 to 31, Incl. Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

28

H579482

TUBE,0.625" OD

- return, motor to hose, used on 30 + 4 SN 4700 to 4790

1шт.

29

H241521

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100R1

Return, Used on 30 + 4 SN 4700 to 4790 12.70 mm ID x 635.00 mm, SAE 100R1

1шт.

30

218-595

TEE,7/8"-14, 37 Degree

- tube, used with refs. 26 to 31

1шт.

See figure 104 for remainder of oil filter circuit.

1шт.

31

H580191

TUBE,0.625" OD x 21" L

- return, tee to reservoir, used on 30+4 SN 4700 to 4790

1шт.

32

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.
