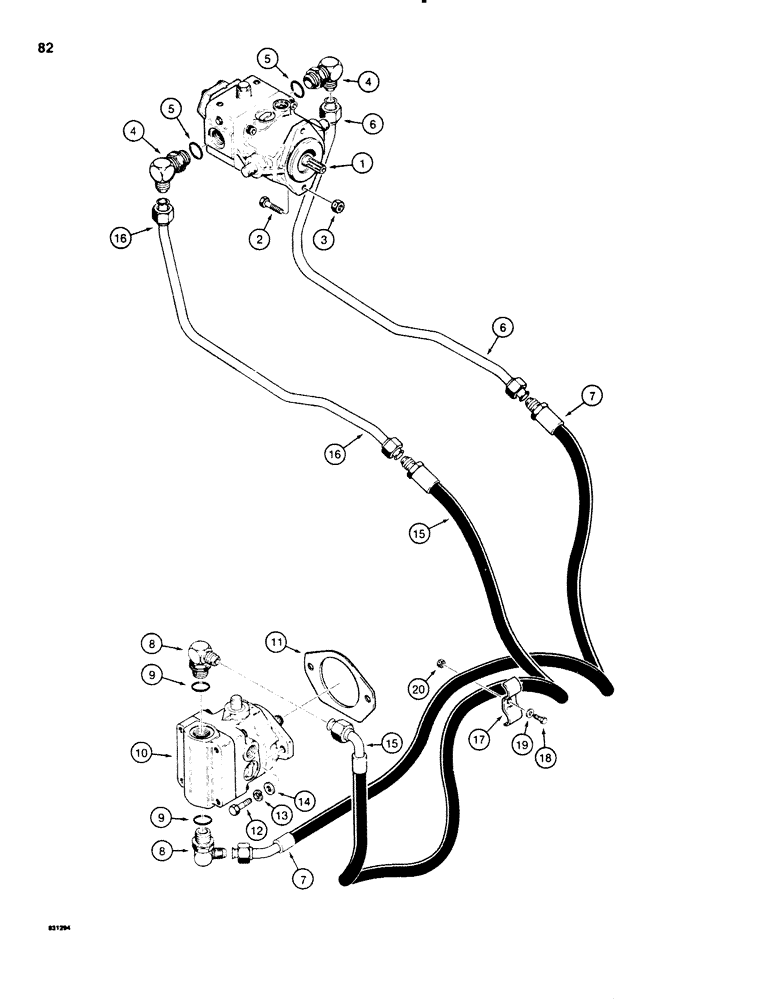

Запчасти Case P60 (082) - HYDROSTATIC PROPULSION PUMP TO MOTOR PRESSURE CIRCUIT, USED ON 30+4 SPECIAL SER. NO. 3751 AND AFTER (29) - HYDROSTATIC DRIVE

1

H596304

PUMP

ASSEMBLY - propulsion, Sundstrand, parts list figures 98 and 100

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 5

2шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

H584615

TUBE,0.75" OD

- pump to hose

1шт.

7

H277368

HOSE ASSY.

HOSE - tube to motor, with 45 degree tube end, 51" (1295 mm) long

1шт.

8

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

2шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

10

H585299

MOTOR

ASSEMBLY - propulsion, Sundstrand, parts list figure 104

1шт.

11

H44727

GASKET

- motor

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

15

H277376

HOSE ASSY.

HOSE - motor to tube, with 90 degree tube end, 55" (1397 mm)long

1шт.

16

H584607

TUBE,0.75" OD

- hose to pump

1шт.

17

H239061

CLAMP

- hose, if used

1шт.

18

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, If used

1шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking 5/16" - 18 NC if used

1шт.
