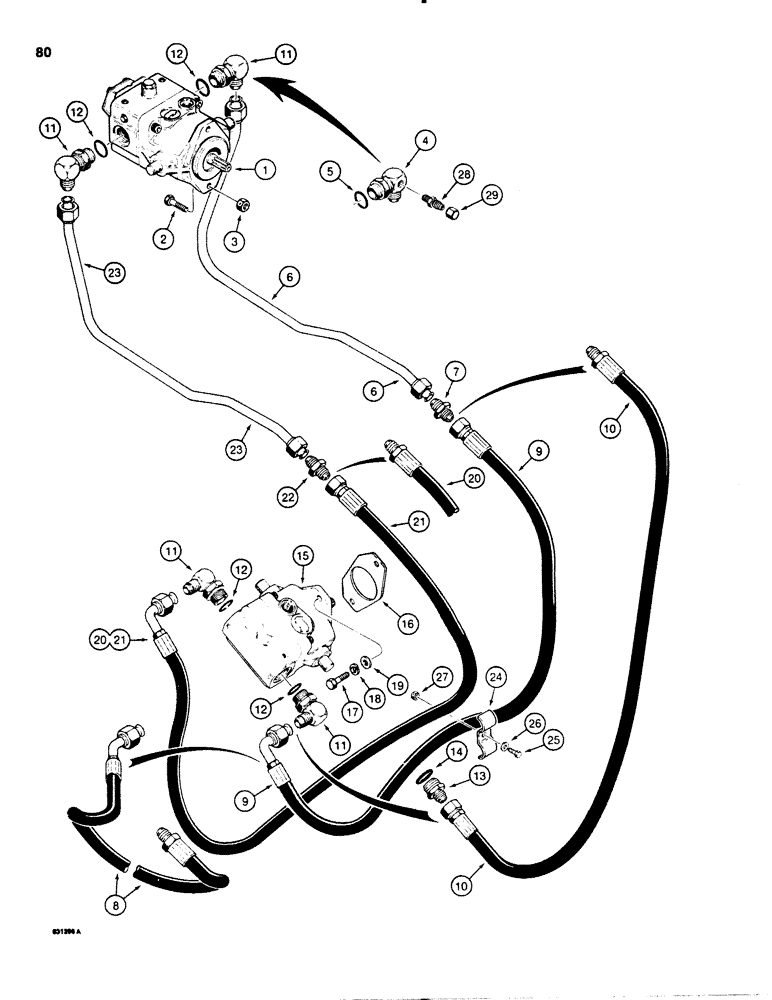

Запчасти Case P60 (080) - HYDROSTATIC PROPULSION PUMP TO MOTOR PRESSURE CIRCUIT, USED ON 30+4 SERIAL NUMBER 1139802 AND AFTER (29) - HYDROSTATIC DRIVE

1

H596304

PUMP

ASSEMBLY - propulsion, Sundstrand, parts list figures 98 and 100

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

4

H364489

ELBOW

- 90 degree, adjustable, if used, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

H584615

TUBE,0.75" OD

- pump to hose, used on 30+4, SN 1139802 to 1163236

1шт.

For suction and drain circuit, see figure 90.

1шт.

6

H654848

TUBE ASSY.,19.05 mm OD

TUBE - pump to hose, used on 30+4, Sn 1163236 and after

1шт.

6

H583237

TUBE,0.75" OD

- pump to hose, used on 40+4

1шт.

7

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, male used with ref. 9 only

1шт.

For suction and drain circuit, see figure 90.

1шт.

8

H277368

HOSE ASSY.

HOSE - motor to tube, with 45 degree tube end, 51" (1295 mm) long ref. 7 not required on 30+4 SN 1139802 to 1163236 and all 40+4

1шт.

9

H404764

HOSE

- tube to motor, with 90 degree tube end, 46" (1168 mm) long, used with ref. 7 on 30+4, SN 1163236 and after

1шт.

10

H218768

HOSE

- tube to motor, with straight ends, 52" (1321 mm) long, ref. 7 not required on 30+4, SN 1163236 and after, no longer provided

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, used with ref. 8 or 9, Includes: Ref. 12

2-4шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

13

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, used with H218768 hose, ref. 10, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

15

H585299

MOTOR

ASSEMBLY - propulsion, Sundstrand, parts list figure 104

1шт.

16

H44727

GASKET

- motor

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

20

H277376

HOSE ASSY.

HOSE - motor to tube, with 90 degree tube end, 55" (1397 mm) long, ref. 22 not required, used on 30+4, SN 1139802 to 1163236 and all 40+4

1шт.

21

H373605

HOSE ASSY.

HOSE - motor to tube, with 90 degree tube end, 51" (1295 mm) long, used with ref. 22 on 30+4, SN, Serial Range: 1139802-1163236

1шт.

21

H404772

HOSE

- motor to tube, with 90 degree tube end, 60" (1524 mm) long, used with ref. 22 on 30+4, SN 1163236 and after

1шт.

22

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, male, used with ref. 21

1шт.

23

H584607

TUBE,0.75" OD

- hose to pump, used on 30+4, SN 1139802 to 1163236

1шт.

23

H654830

TUBE ASSY.,19.05 mm OD

TUBE - hose to pump, used on 30+4, SN 1163236 and after

1шт.

23

H583245

TUBE,0.75" OD

- hose to pump, used on 40+4

1шт.

24

H239061

CLAMP

- hose, if used

1шт.

25

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, If used

1шт.

26

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

1шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used

1шт.

28

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - filter, if used

1шт.

29

218-757

CAP,37 Degree, 1 3/16"-12

- adapter, if used

1шт.
