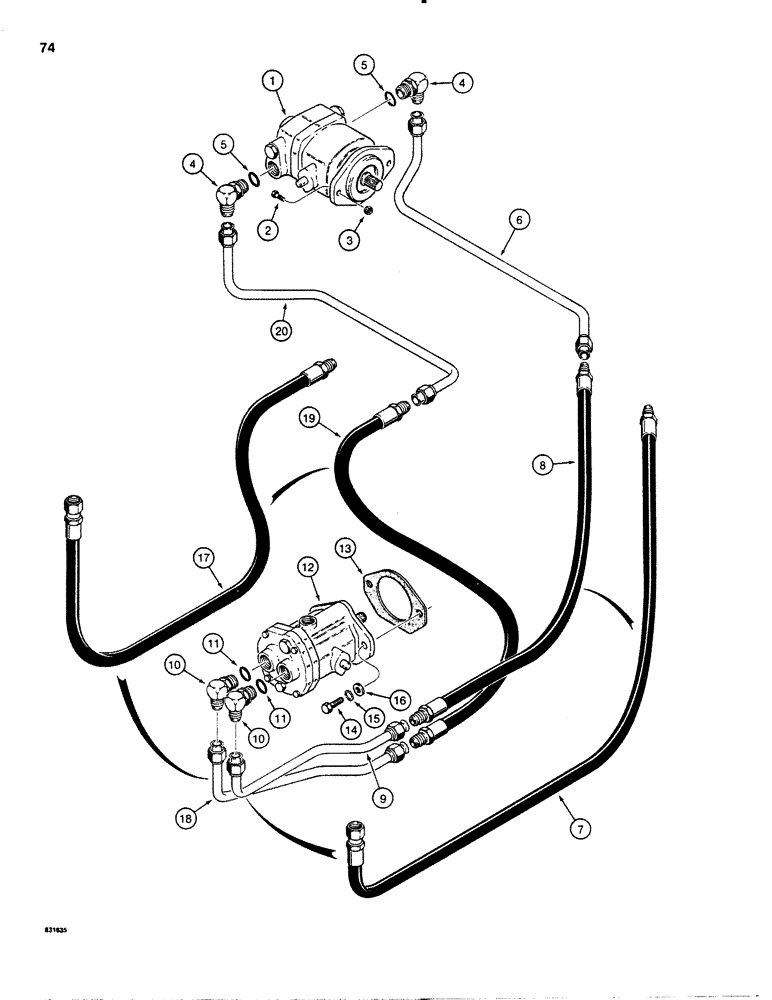

Запчасти Case P60 (074) - HYDROSTATIC PROPULSION PUMP TO MOTOR, PRESSURE CIRCUIT, USED BEF. 30+4 S/N 4790 & BEF. 40+4 S/N 3600 (29) - HYDROSTATIC DRIVE

1

H567958

PUMP

ASSEMBLY - propulsion, Vickers TA15-13A-10, no longer used, for service order H581215 pump and add hole to center of drive coupling to accomodate longer pump shaft

1шт.

1

H581215

PUMP

ASSEMBLY - propulsion, Vickers No. TA15-30A-10, part list figures 94 and 96

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 5

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

6

H559955

TUBE,0.75" OD

- pump to hose, used before 30+4 SN 4700 and on 30+4 Special

1шт.

6

H569376

TUBE,0.75" OD

- pump to hose, used on 40+4 only

1шт.

7

H195354

HOSE ASSY.

HOSE - 42" (1067 mm) long, tube to motr, used with ref. 6 (H559955 or H569376)

1шт.

8

H240184

HOSE ASSY.

HOSE - 32" (813 mm) long, tube to tube, used on 30+4 SN, Serial Range: 4700-4790

1шт.

9

H578757

TUBE,0.75" OD

- hose to motor, used on 30+4 SN 4700 to 4790

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 - degree, adjustable, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

H557942

MOTOR HOUSING

MOTOR ASSEMBLY - propulsion, Vickers No. TB15 -1A-M16-10, parts list figure 102

1шт.

13

H44727

GASKET

- motor

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2"

2шт.

16

H746107

GASKET

WASHER - special, copper, 1/2"

2шт.

17

H195354

HOSE ASSY.

HOSE - 42" (1067 mm) long, motor to tube, used with ref. 20 (H560029 or H569368)

1шт.

18

H578765

TUBE,0.75" OD

- motor to hose, used on 30+4 SN 4700 to 4790

1шт.

19

H239517

HOSE ASSY.

HOSE - 30" (76 mm) long, tube to tube, used on 30+4 SN, Serial Range: 4700-4790

1шт.

20

H560029

TUBE,0.75" OD

- hose to pump, used before 30+4 SN 4700 and on 30+4 Special

1шт.

20

H578690

TUBE,0.75" OD

- hose to pump, used on 30+4 SN 4700 to 4790

1шт.

20

H569368

TUBE,0.75" OD

- hose to pump, used on 40+4 only

1шт.
