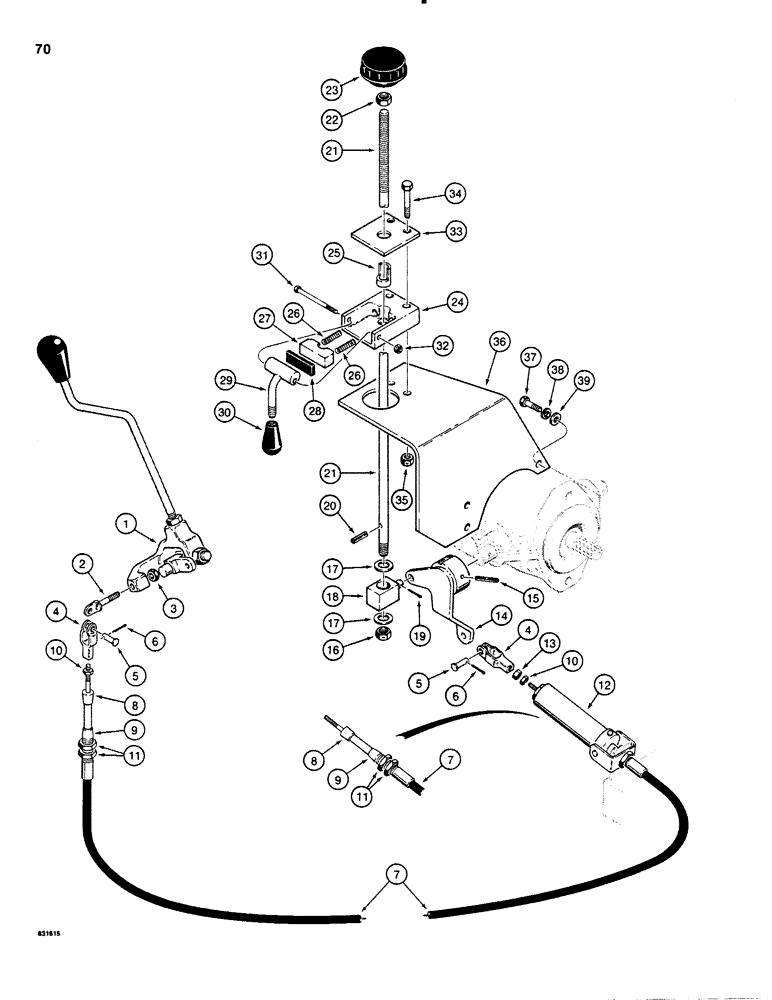

Запчасти Case P60 (070) - FORWARD AND REVERSE CONTROLS, WITH HYDRO-BACK NEUTRAL CENTERING, USED ON 30+4 S/N 1223228 AND AFTER (29) - HYDROSTATIC DRIVE

1

REF

INSTRUCTION

LEVER ASSEMBLY - steering and forward and reverse, see parts list figure 48

1шт.

2

H217109

BOLT

- lever

1шт.

3

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

4

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

2шт.

H3568374 Ball Joint

1шт.

5

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

2шт.

6

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

7

H556290

CONTROL

CABLE - forward and reverse, 80" (2032 mm) long, Includes: Ref. 8-11

1шт.

8

L32683

SEAL

- rod, cable

2шт.

9

L32682

SEAL

SEAL - sleeve, cable

2шт.

10

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

11

129-127

NUT,5/8"-18, G5

JAM NUT - hex, 5/8" - 18 NF

4шт.

12

H412783

VALVE

HYDRO-BACK - neutral centering

1шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

(Replaces 131-161) Jam, 1/4"-28, G5

1шт.

14

H669093

ARM ASSY.

BELLCRANK - pump, forward and reverse

1шт.

15

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Bellcrank 1/4" x 2", Slotted

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

17

195-105

WASHER,7/16"

- flat, 7/16"

2шт.

18

H237701

BLOCK

- vernier control, bellcrank

1шт.

19

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

20

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

21

H237750

CONTROL BLOCK

SHAFT - adjusting

1шт.

22

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

23

H239004

KNOB

- adjusting

1шт.

H608885

CONTROL BLOCK

BASE ASSEMBLY - control, Includes: Ref. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

BASE - control (replaces H299156) Use base assembly

1шт.

25

H299164

BUSHING

- friction

1шт.

26

H253864

VALVE SPRING

SPRING - release

2шт.

H608877

BLOCK

ASSEMBLY - half nut, locking, Includes: Ref. 27, 28

1шт.

27

H299131

BLOCK

- half nut, locking

1шт.

28

H299149

BLOCK

CUSHION - friction

1шт.

29

H618504

CAM

LEVER - cam locking, with bent handle

1шт.

30

A14051

GRIP

KNOB - lever, cam

1шт.

31

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC

1шт.

32

131-1102

LOCK NUT,1/4"-20, GA

NUT - hex, self- locking, 1/4" - 20 NC

1шт.

33

H233767

COVER ASSY

PLATE - cover, control base

1шт.

34

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

35

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

36

H586222

BRACKET

- pump control mounting

1шт.

37

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

38

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

195-521

WASHER,5/16", SAE

- flat, 5/16", if used

4шт.
