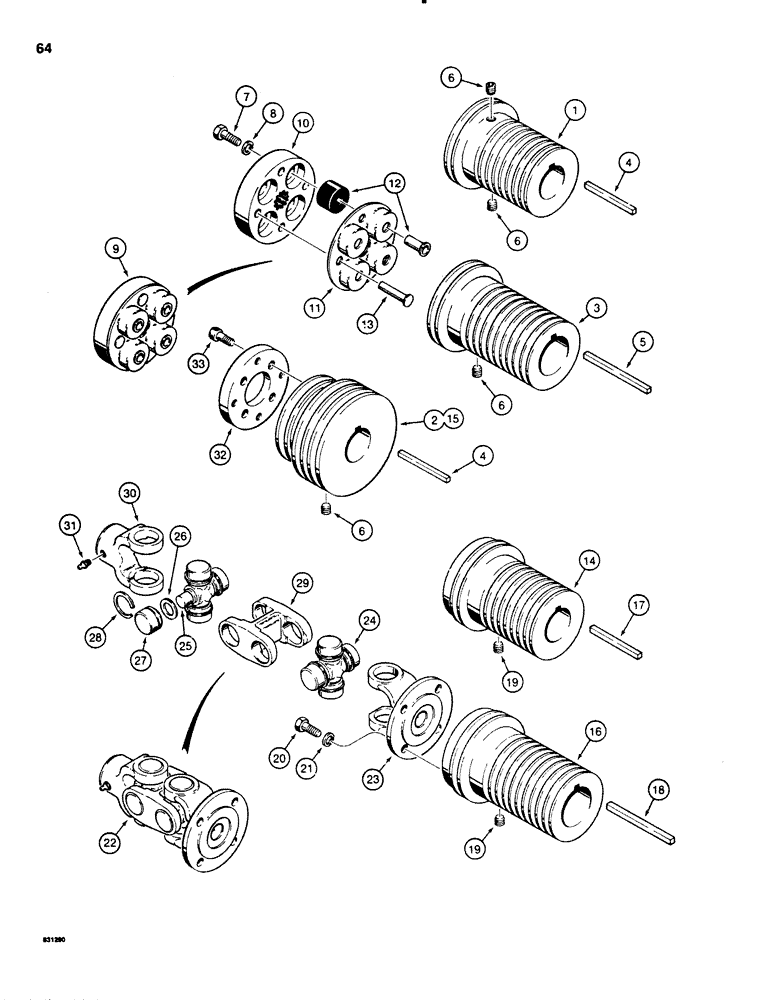

Запчасти Case P60 (064) - ENGINE DRIVE SHEAVE AND PUMP COUPLING, FLEX COUPLING PUMP DRIVE (29) - HYDROSTATIC DRIVE

1

H151332

SHEAVE

- drive, engine, 1-7/16" ID shaft, used before 30+4 Standard SN 4790

1шт.

2

H203539

SHEAVE

- drive, engine, 1-7/16" ID shaft, used before 30+4 Special SN 3708

1шт.

3

H217083

SHEAVE

- drive, engine, 1-3/4" ID shaft, used before 40+4 SN 3600

1шт.

4

H49387

KEY

- square, .375" x 2-3/4" long, 30+4 only

1шт.

5

H219261

KEY

- square, .375" x 3-5/8" long, 40+4 only

1шт.

6

178-853

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket head, 3/8" - 16 NC x 3/8"

1-2шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

8

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

H567941

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - flexible, used before 30+4 SN 4790, 40+4 SN 3600, and 30+4 Special SN 3708, Includes: Ref. 10-13

1шт.

IF DLR LOOKING FOR A REF 9 COUPLER THAT IS KEYED THE PART NO. IS H531491.

1шт.

10

NSS

NOT SOLD SEPARAT

COUPLING - cast half

1шт.

11

NSS

NOT SOLD SEPARAT

COUPLING - formed half

1шт.

12

N8328

BLOCK

INSULATOR - rubber mount, includes bushing

4шт.

13

147-306

RIVET,But Hd, 1/4" x 1"

- coupling

4шт.

14

H250076

SHEAVE

- drive, engine, 1-7/16" ID shaft, used on 30+4 SN 4790 and after, u-joint pump drive

1шт.

15

H203539

SHEAVE

- drive, engine, 1-7/16" ID shaft, used on 30+4 Special SN 3708 and after, used with refs. 32 and 33, u-joint pump

1шт.

16

H244814

PULLEY

SHEAVE - drive, engine, 1-3/4" ID shaft, used on 40+4 SN 3600 and after, u-joint pump

1шт.

17

H49387

KEY

- square, .375" x 2-3/4" long, 30+4 only, u-joint pump drive

1шт.

18

H219261

KEY

- square, .375" x 3-5/8" long, 40+4 only, u-joint pump drive

1шт.

19

178-853

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket head, 3/8" - 16 NC x 3/8", u-joint pump drive

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, U-joint pump drive

4шт.

21

192-404

LOCK WASHER,5/16"

WASHER, LOCK, , U-joint pump drive 5/16"

4шт.

22

H582007

JOINT TURNING

U-JOINT ASSEMBLY - double, used on 30+4 SN 4790 and on 40+4 SN 3600 and after and on 30+4 Special SN 3708 and after and on 30 +4 Special SN,3708 and after, u-joint pump drive, Includes: Ref. 23-31

1шт.

23

H245902

FORK

YOKE - flanged end, u-joint pump drive

1шт.

24

H582437

BEARING ASSY

BEARING AND CROSS ASSEMBLY - u-joint pump drive, Includes: Ref. 25-28

2шт.

25

NSS

NOT SOLD SEPARAT

CROSS - u-joint pump drive

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - bearing, u-joint pump drive

4шт.

27

NSS

NOT SOLD SEPARAT

NEEDLES AND CAP - bearing, u-joint pump drive

4шт.

28

H245910

RING, SNAP

SNAP RING - bearing retaining, u-joint pump drive

8шт.

29

H244855

COUPLING

YOKE - center, double pibot, u-joint pump drive

1шт.

30

H244848

FORK

YOKE - splined end, u-joint pump drive

1шт.

31

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" NPT, Splined yoke, U-joint pump drive

1шт.

32

H244830

LARGE PLATE

PLATE - adapter, used with ref. 1, 2, 3, or 15 to adapt U-joint pump drive to older tractors, if used

1шт.

33

164-206

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

MACHINE SCREW - hex socket head, 5/16" - 18 NC x 3/4", u-joint pump drive

4шт.
