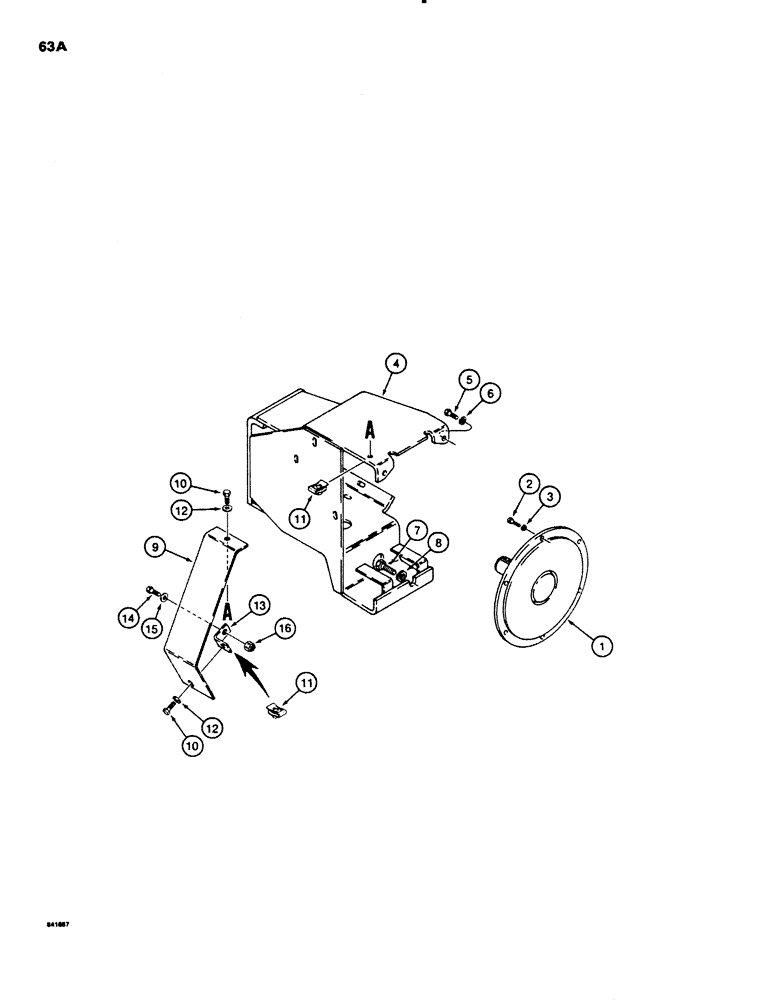

Запчасти Case P60 (063A) - PROPULSION PUMP MOUNTING PLATE AND ADAPTER SHAFT, DEUTZ DIESEL ENGINE SERIAL NO. 1232821 AND AFTER (29) - HYDROSTATIC DRIVE

1

H670224

SHAFT

ADAPTER SHAFT - pump drive, Deutz, used without bearing

1шт.

2

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

3

892-1108

LOCK WASHER,M8

6шт.

4

H671164

BRACKET

- pump mounting

1шт.

5

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 x 1.50 x 25 mm (8.8)

2шт.

6

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

7

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm (8.8)

1шт.

8

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

9

H432716

GUARD

COVER - flywheel guard

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

H346650

NUT

- special, 5/16" - 18 NC

2шт.

12

H426775

WASHER

- 5/16", hardened

2шт.

13

H244392

ANGLE

BRACKET - guard

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

H426775

WASHER

- flat special hardened

1шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self- locking, 5/16" - 18 NC

1шт.
