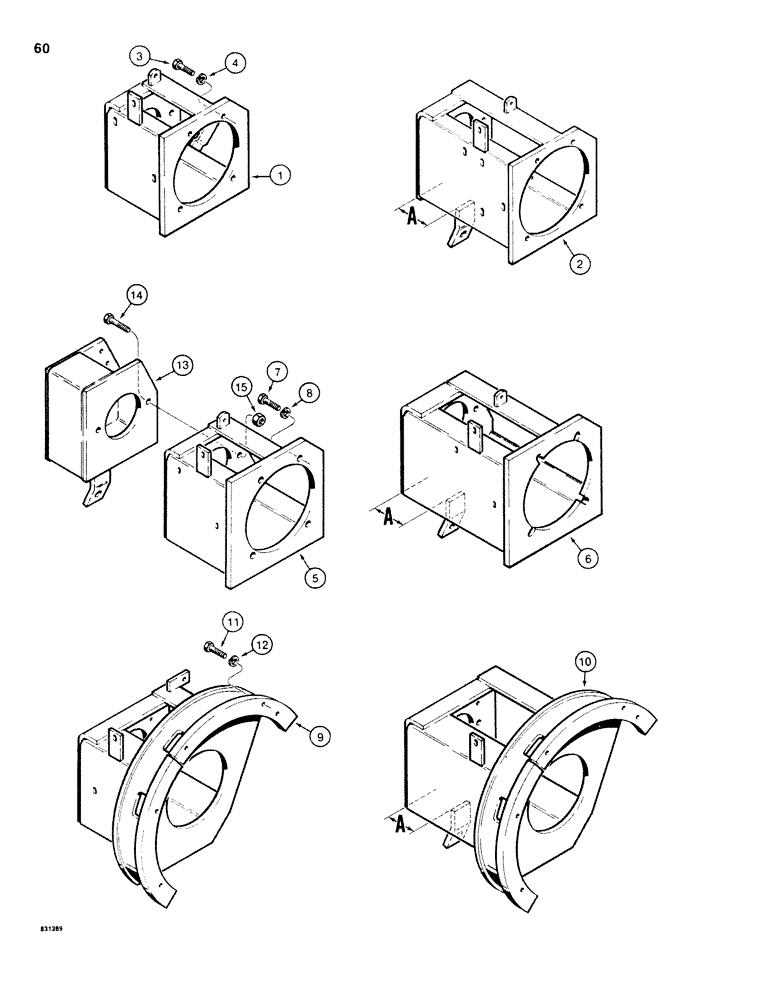

Запчасти Case P60 (060) - PROPULSION PUMP MOUNTING PLATE (29) - HYDROSTATIC DRIVE

1

H556381

BRACKET - pump mounting, used before 30+4 Standard S/N 4790, includes alternator mounting bracket, wisconsin engine models

1шт.

2

H584318

BRACKET - pump mounting, used on 30+4 Standard between S/N 4790 and 5210 and before 30+4 Special S/N 3808, reference dimension "A" is 2-13/16" (71.4 mm), wisconsin engine models

1шт.

2

H597492

BRACKET

- pump mounting, used on 30+4 Standard S/N 5210 to 1223228 and on 30+4 Special S/N 3708 and after, reference dimension "A" is 3-3/8" (85.7 mm), wisconsin engine models

1шт.

2

H669267

PLATE

BRACKET - pump mounting, used on 30+4 S/N 1223228 and after see figure 70 for related parts, does not have a tab for reference dimension "A", not shown 30+4, wisconsin engine models

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

30+4, Wisconsin engine models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 30+4, Wisconsin engine models 1/2"

4шт.

5

H569228

BRACKET - pump mounting, used before 40+4 S/N 3600, wisconsin engine models

1шт.

6

H582593

BRACKET - pump mounting, used on 40+4 between S/N 3600 and S/N 3930, reference dimension "A" is 2-13/16" (71.4 mm), wisconsin engine models

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

40+4, Wisconsin engine models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 40+4, Wisconsin engine models 1/2"

4шт.

9

H570424

PUMP

BRACKET - pump mounting, used before 40+4 S/N 3600, deutz engine model

1шт.

10

H582643

BRACKET - pump mounting, used on 40+4 between S/N 3600 and S/N 3930, reference dimension "A" is 2-13/16" (71.4 mm), deutz engine model

1шт.

10

H598243

BRACKET - pump mounting, used on 40+4 S/N 3930 and after, reference dimension "A" is 3-3/8" (85.7 mm), deutz engine model

1шт.

10

H594861

BRACKET

- pump mounting, used on 40+4 with shaft bearing, not shown, see figure 62, if used, deutz engine model

1шт.

11

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm - 1.5 x 30 mm (8.8) 40+4, deutz engine model

5шт.

12

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm 40+4, deutz engine model

5шт.

13

H584805

ADAPTER

BRACKET - pump mounting, used to adopt U-joint pump drive to older tractors, used in addition to refs. 1, 5 or 9 above, see figure 64, if used, optional parts for converting some, Start Serial: units

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Optional parts for converting some units to u-joint pump drive Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

15

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, optional parts for converting some units to u-joint pump drive

2шт.
