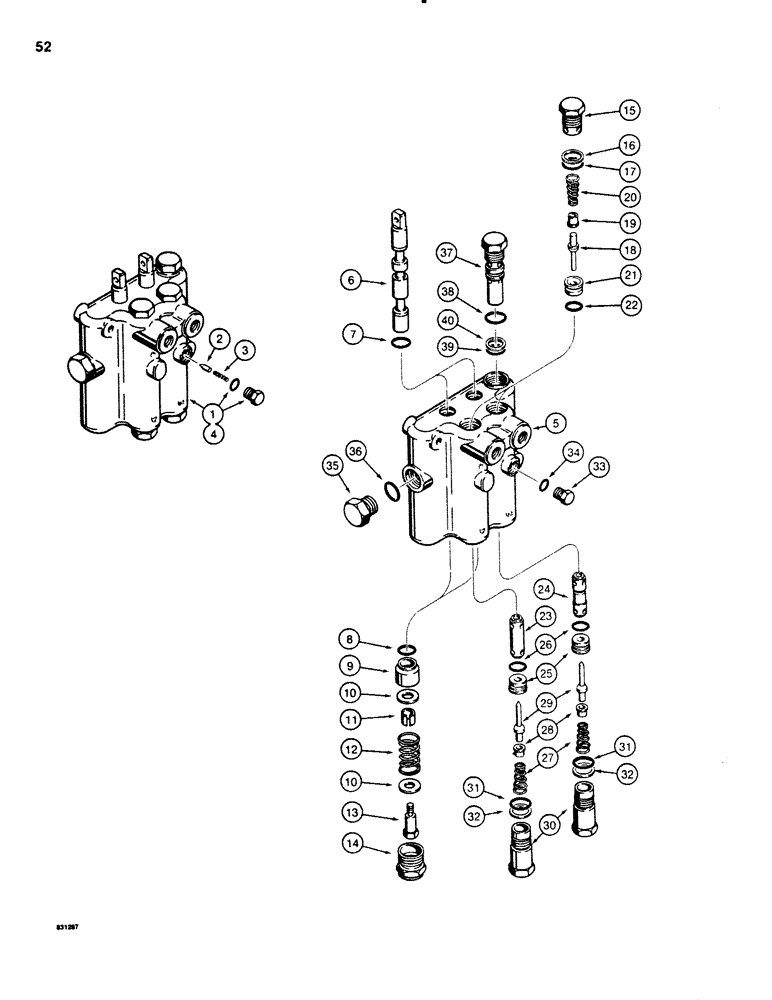

Запчасти Case P60 (052) - H553818 AND H550079 CONTROL VALVES, TWO SPOOL, H553818 BACKFILL BLADE CONTROL VALVE (29) - HYDROSTATIC DRIVE

H553818

VALVE

CONTROL VALVE - two spool, backfill blade, Includes: Ref. 1-3

1шт.

1

H550079

LOCK VALVE

CONTROL VALVE - see parts list below

1шт.

2

H104992

PAWL

PLUNGER - detent

1шт.

3

H142166

VALVE SPRING

SPRING - detent plunger

1шт.

4

H550079

LOCK VALVE

CONTROL VALVE - Cessna No. 31522-AL, H550079 steering and lift control valve, Includes: Ref. 5-32

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve, H550079 steering and lift control valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve, H550079 steeing and lift control valve

2шт.

7

F37887

O-RING

- spool, control end, H550079 steering and lift control valve

2шт.

Part of seal kit P/N H172643

1шт.

8

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, plug end, H550079 steering and lift control valve

2шт.

Part of seal kit P/N H172643

1шт.

9

T39069

BUSHING

- spool, H550079 steering and lift control valve

2шт.

10

F8235

WASHER

- spring retaining, H550079 steering and lift control valve

4шт.

11

F37885

SPACER

- spring, H550079 steering and lift control valve

2шт.

12

F14091

VALVE SPRING

SPRING - centering, spool, H550079 steering and lift control valve

2шт.

13

F37886

SCREW

- spring retaining, H550079 steering and lift control valve

2шт.

14

F35196

CAP

- spool end, H550079 steering and lift control valve

2шт.

F35197

PLUG

ASSEMBLY - seat retaining, H550079 steering and lift control valve, Includes: Ref. 15-17

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG - seat retaining, H550079 steering and lift control valve

1шт.

16

A35698

BACK-UP RING

BACKUP RING - O-ring, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

17

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

18

F88777

PLUNGER

POPPET - control valve, H550079 steering and lift control valve

2шт.

Part of seal kit P/N H172643

1шт.

19

H266684

AXLE PIN

EYELET - poppet, H550079 steering and lift control valve

2шт.

20

F35198

VALVE SPRING

SPRING - poppet, H550079 steering and lift control valve

2шт.

F37884

SEAT

ASSEMBLY - poppet, H550079 steering and lift control valve, Includes: Ref. 21, 22

2шт.

21

NSS

NOT SOLD SEPARAT

SEAT - poppet, H550079 steering and lift control valve

1шт.

22

A64436

O-RING,0.549" ID x 0.755" OD

- seat, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

23

F8229

PLUNGER

- "C" - "D" section only, H550079 steering and lift control valve

1шт.

24

H142133

PLUNGER

- "A" - "B" section only, H550079 steering and lift control valve

1шт.

F37884

SEAT

ASSEMBLY - poppet, H550079 steering and lift control valve, Includes: Ref. 25, 26

2шт.

25

NSS

NOT SOLD SEPARAT

SEAT - poppet, H550079 steering and lift control valve

1шт.

26

A64436

O-RING,0.549" ID x 0.755" OD

- seat, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

27

F35198

VALVE SPRING

SPRING - poppet, H550079 steering and lift control valve

2шт.

28

H266684

AXLE PIN

EYELET - poppet, H550079 steering and lift control valve

2шт.

29

F88777

PLUNGER

POPPET - control valve, H550079 steering and lift control valve

2шт.

Part of seal kit P/N H172643

1шт.

H172601

PLUG

ASSEMBLY - port, H550079 steering and lift control valve, Includes: Ref. 30-32

2шт.

30

NSS

NOT SOLD SEPARAT

PLUG - port, H550079 steering and lift control valve

1шт.

31

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

32

A35698

BACK-UP RING

BACKUP RING - O-ring, H550079 steering and lift control valve

1шт.

Part of seal kit P/N H172643

1шт.

H550079

LOCK VALVE

CONTROL VALVE - continued, H550079, H550079 steering and lift control valve, Includes: Ref. 33-40

1шт.

33

H142141

PLUG

- "A" - "B" section

1шт.

34

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N H172643

1шт.

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - power beyond, Includes: Ref. 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

36

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug

1шт.

H102053

VALVE

MAIN RELIEF VALVE - control valve, Includes: Ref. 37-40

1шт.

37

NSS

NOT SOLD SEPARAT

RELIEF VALVE - control valve

1шт.

38

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outer, large

1шт.

Part of seal kit P/N H172643

1шт.

39

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, small

1шт.

Part of seal kit P/N H172643

1шт.

40

G32626

RING

BACKUP RING - inner O-ring

1шт.

Part of seal kit P/N H172643

1шт.

H172643

SEAL ASSY.

KIT - seal, Includes: Refs. 7, 8, 16, 17, 18, 22, 26, 29, 31, 32, 34, 38, 39 and 40

1шт.
