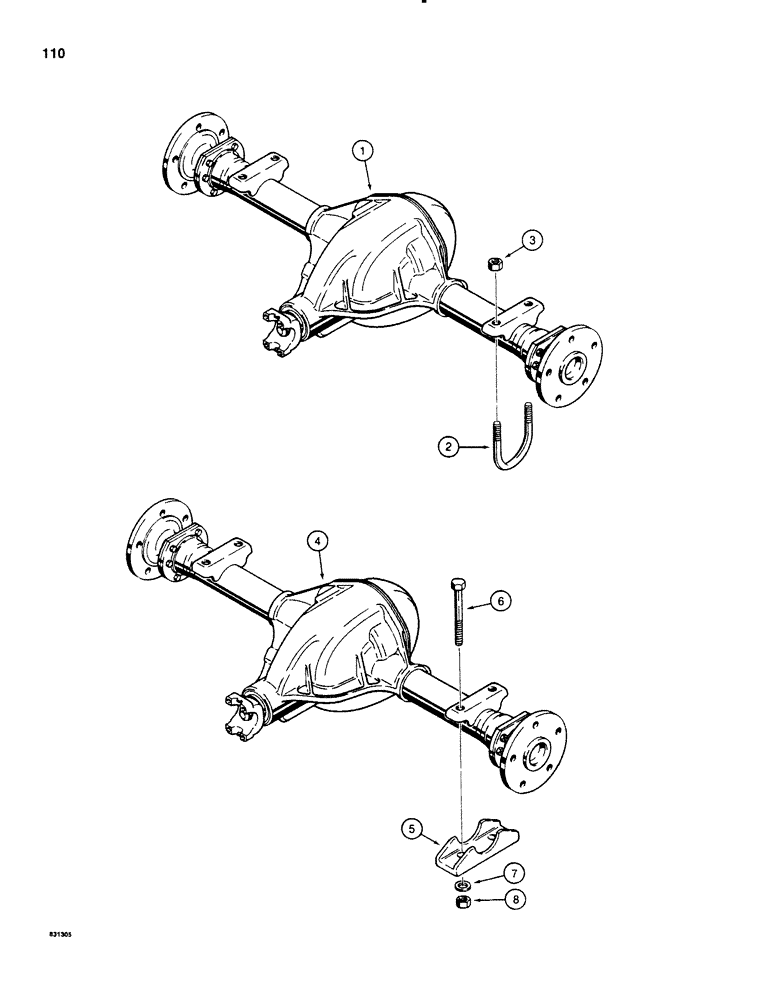

Запчасти Case P60 (110) - FRONT AXLE MOUNTING (25) - FRONT AXLE SYSTEM

1

H558759

AXLE

ASSEMBLY - front, parts list figure 130

1шт.

2

H184135

HARDWARE

U - BOLT - axle mounting

2шт.

3

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

4

H608653

CENTER AXLE

AXLE ASSEMBLY - front, parts list figure 134, used on 30+4 trenchers SN 1163236 and after

1шт.

5

H256719

SPRING SEAT

BRACKET - axle mounting, used on 30+4 trenchers SN 1163236 and after

2шт.

6

113-656

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex head, 5/8" - 11 NC x 5-1/2" grade 8, used on 30+4 trenchers SN 1163236 and after

4шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, used on 30+4 trenchers SN 1163236 and after

4шт.

8

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Used on 30+4 trenchers SN 1163236 and after 5/8"-11, GC

4шт.
