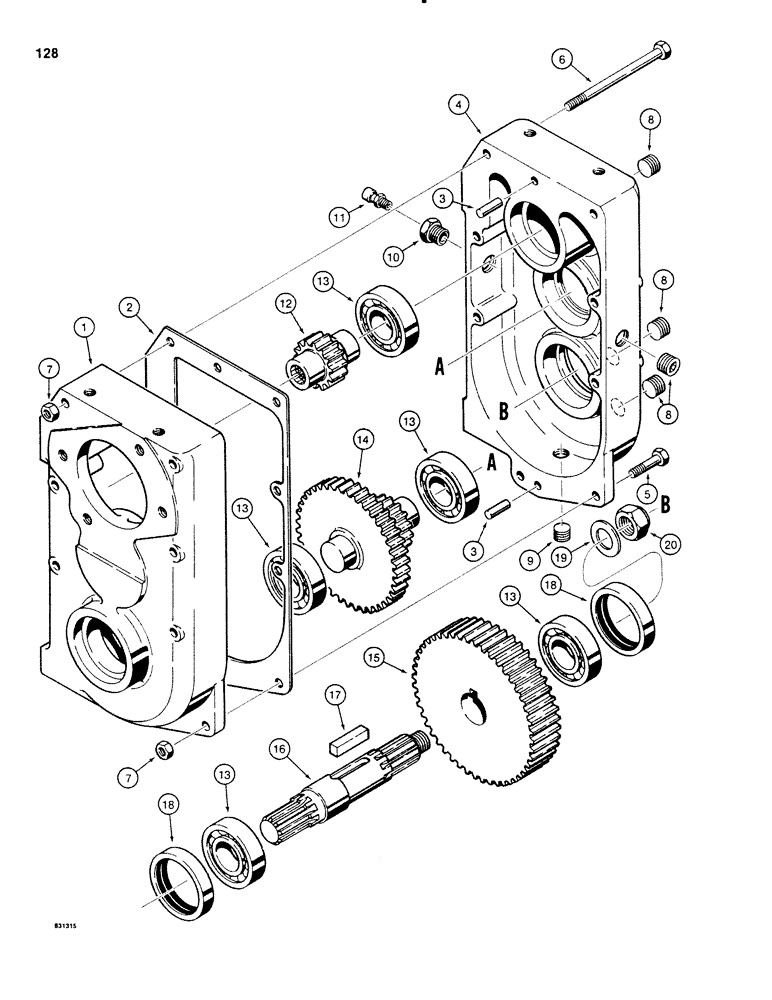

Запчасти Case P60 (128) - H660126 TRANSMISSION, USED ON 30+4 SERIAL NUMBER 1203744 AND AFTER (21) - TRANSMISSION

H660126

TRANSMISSION

ASSEMBLY - Case, Includes: Ref. 1-20

1шт.

1

H412866

CASE

HOUSING - transmission, rear

1шт.

2

H413153

GASKET

- housing

1шт.

3

H755272

DOWEL

PIN - 3/8" x 1" long

2шт.

4

H412858

CASE

HOUSING - transmission, front

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

113-2238

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

6шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

8шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

PIPE PLUG - hex socket head, 1/2" NPT

4шт.

9

221-843

PLUG,Hex Soc, 3/8"-18

PIPE PLUG - hex socket head, 3/8" NPT

1шт.

10

221-1087

REDUCER

BUSHING - pipe

1шт.

11

R11152

FITTING

BREATHER - housing (replaces L33264)

1шт.

12

H253112

GEAR

AND SHAFT - input

1шт.

13

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

- shafts

5шт.

14

H253153

GEAR

CLUSTER GEAR AND SHAFT - intermediate

1шт.

15

H253146

GEAR

- output reduction

1шт.

16

H253138

SHAFT

- output

1шт.

17

H70045

KEY

- square, 3/8" x 1-3/4" long

1шт.

18

H754226

OIL SEAL

- output shaft

2шт.

19

H224501

WASHER

- special, 7/8"

1шт.

20

131-465

LOCK NUT,7/8"-14, G8

NUT - hex, self-locking, 7/8" - 14 NF

1шт.
