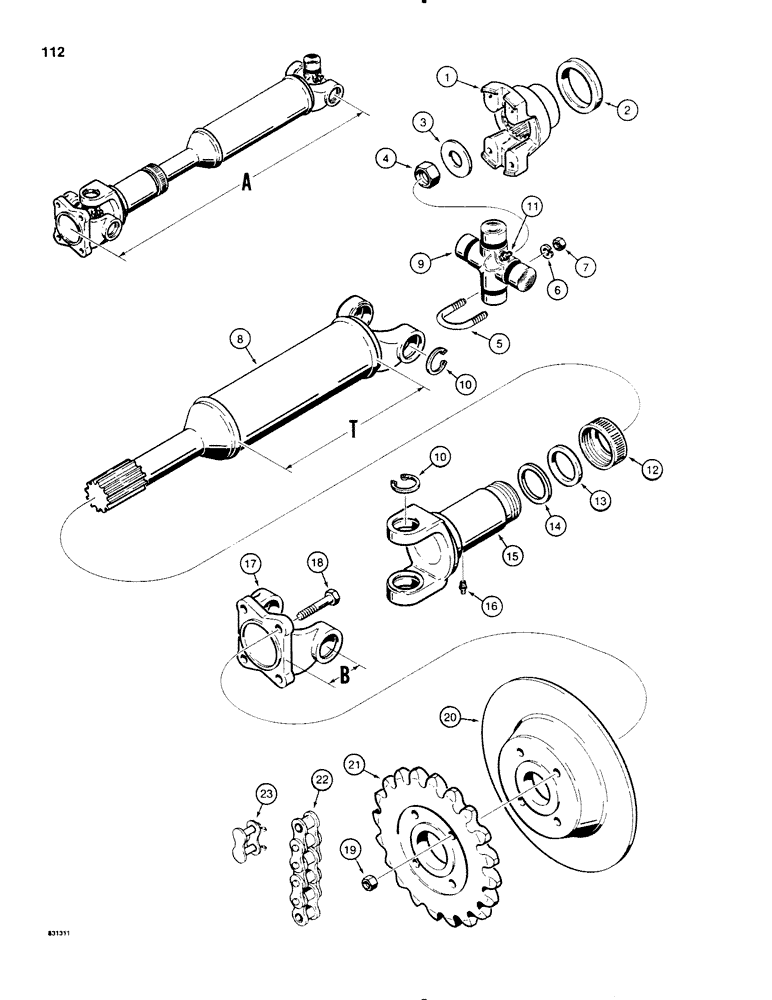

Запчасти Case P60 (112) - DRIVE SHAFT AND DISC BRAKE, MODELS WITH CHAIN DRIVE TRANSMISSION (21) - TRANSMISSION

1

H197590

YOKE

- front axle, Includes: Ref. 2

1шт.

2

H196998

SPACER

SLINGER - oil

1шт.

3

H197574

WASHER

- special

1шт.

4

H197566

NUT

- special, yoke retaining

1шт.

5

H183566

BOLT

U-BOLT - drive shaft, Includes: Ref. 6, 7

2шт.

6

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

129-122

NUT,5/16"-24, G5

2шт.

H554980

SHAFT

DRIVE SHAFT ASSEMBLY - reference dimension "A" is 26-5/8" (676 mm) long, used on 30+4 before SN 5210 and on 30+4 Special before SN 3751

1шт.

H597856

SHAFT

DRIVE SHAFT ASSEMBLY - reference dimension "A" is 25-3/4" (654mm) long, used on 30+4 SN to 1163236 and on 30+4 Special SN 3751 and after

1шт.

H555037

DRIVE ASSY.

DRIVE SHAFT ASSEMBLY - refernece dimension "A" is 28-13/16" (732 mm) long, used on 40+4 before SN 3930

1шт.

H597864

DRIVE SHAFT

ASSEMBLY - reference dimension "A" is 27-15/16" (710 mm) long, used on 40+4 SN 3930 and after, Includes: Ref. 8 H556167 to 17 H251777

1шт.

8

H556167

TUBE

- drive shaft, reference dimension "T" is 15-9/16" (395 mm) long, part of H554980

1шт.

8

H598979

TUBE

- drive shaft, reference dimension "T" is 14-7/16" (367 mm) long, part of H597856

1шт.

8

H556175

YOKE

TUBE - drive shaft, reference dimension "T" is 17-3/4" (451 mm), long part of H555037

1шт.

8

H599381

TUBE ASSY.

TUBE - drive shaft, reference dimension "T" is 16-5/8" (422 mm) long, part of H597864

1шт.

9

H584813

BEARING

AND CROSS ASSEMBLY - yoke, Includes: Ref. 10, 11

2шт.

10

11256

SNAP RING

SNAP RING - bearing retaining

4шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - 1/4" - 28 taper

1шт.

12

H223875

CYLINDER END CAP

CAP - dust

1шт.

13

H223891

WASHER

- special, steel

1шт.

14

H223883

WASHER

- special, cork

1шт.

15

H223867

YOKE

- slip, drive shaft

1шт.

16

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - 1/4" - 28 taper

1шт.

17

W13668

YOKE

- flange, drive shaft, reference dimension "B" is 1.375" (34.9 mm), used on H554980 and H555037 only

1шт.

17

H251777

FLANGE

YOKE - flange, drive shaft, reference dimension "B" is 1.625" (41.3 mm), used on H597856 and H597864 only

1шт.

18

H219220

BOLT

- special, 3/8" - 24 NF x 1.7", used with W13668 yoke and H183186 sprocket

4шт.

18

H277665

BOLT

BOLT - special, 3/8" - 24 NF x 2.45", used with H251777 yoke and H277483 sprocket

4шт.

19

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, grade C

4шт.

20

H261370

DISC

- brake

1шт.

21

H183186

DRIVE SPROCKET

SPROCKET - driven, rear axle, used with W13668 yoke

1шт.

21

H277483

DRIVE SPROCKET

SPROCKET - driven, rear axle, used with H251777 yoke

1шт.

22

H753301

CHAIN (AG)

CHAIN - drive, ASA No. 80, 30 pitch, Includes: Ref. 23

1шт.

23

H750562

CHAIN (AG)

CONNECTOR - chain

1шт.
