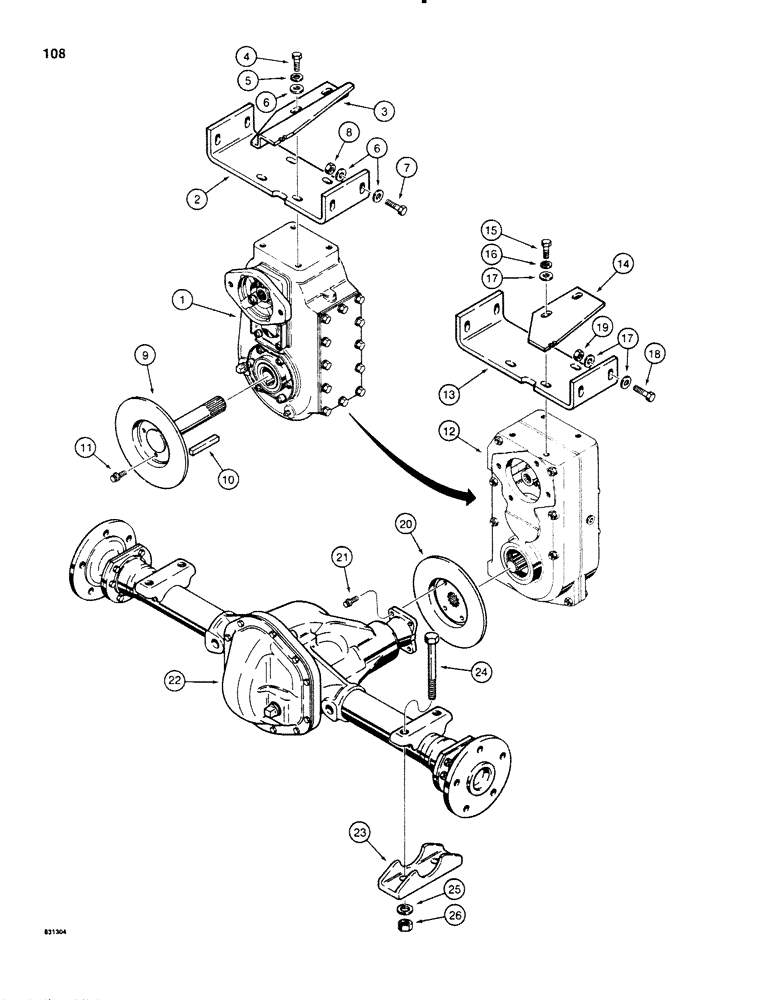

Запчасти Case P60 (108) - DIRECT DRIVE TRANSMISSION AND REAR AXLE MOUNTING, USED ON 30+4 SERIAL NUMBER 1163236 AND AFTER (21) - TRANSMISSION

1

H633578

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Terrell, used on 30+4 SN 1163236 to 1187336, parts list figure 120, for service order H655571

1шт.

1

H655571

TRANSMISSION

ASSEMBLY - Terrell, used on 30+4 SN 1187336 to 1203744, parts list figure 124

1шт.

2

H343715

CROSSMEMBER

BRACKET - transmission mounting

1шт.

3

H393215

BRACKET

- motor speed control

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

H274894

WASHER

- special, flat, 1/2"

12шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

9

H650739

SHAFT

- drive and disc brake

1шт.

10

H33308

KEY

- drive shaft, square, 3/8" x 3" long

1шт.

11

166-543

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 24 NF x 3/4" (replaces 116-543)

4шт.

12

H660126

TRANSMISSION

ASSEMBLY - Case, see parts list figure 128, used on 30+4 SN 1203744 and after

1шт.

13

H343715

CROSSMEMBER

BRACKET - transmission mounting H660126 assembly used on 30+4 SN 1203744 and after

1шт.

14

H417030

BRACKET

- motor speed control H660126 transmission assembly used on 30+4 SN 1203744 and after

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

H660126 transmission assembly used on 30+4 SN 1203744 and after Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , H660126 transmission assembly used on 30+4 SN 1203744 and after 1/2"

4шт.

17

H274894

WASHER

- special, flat, 1/2" H660126 transmission assembly used on 30+4 SN 1203744 and after

12шт.

18

133-410

BOLT (SPREADER)

BOLT - hex head, 1/2" - 13 NC x 1-1/2" H660126 transmission assembly used on 30+4 SN 1203744 and after

4шт.

19

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, , H660126 transmission assembly used on 30+4 SN 1203744 and after 1/2"-13, GC

4шт.

20

H662262

FLANGE

- drive and disc brake H660126 transmission assembly used on 30+4 SN 1203744 and after

1шт.

21

166-543

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 24 NF x 3/4" H660126 transmission assembly used on 30+4 SN 1203744 and after

4шт.

22

H608661

AXLE

ASSEMBLY - rear, parts list figure 134, mounting

1шт.

23

H256719

SPRING SEAT

BRACKET - axle mounting, rear

2шт.

24

113-656

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex head, 5/8" - 11 NC x 5-1/2, grade 8, rear axle mounting

4шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, rear axle mounting

4шт.

26

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Rear axle mounting 5/8"-11, GC

4шт.
