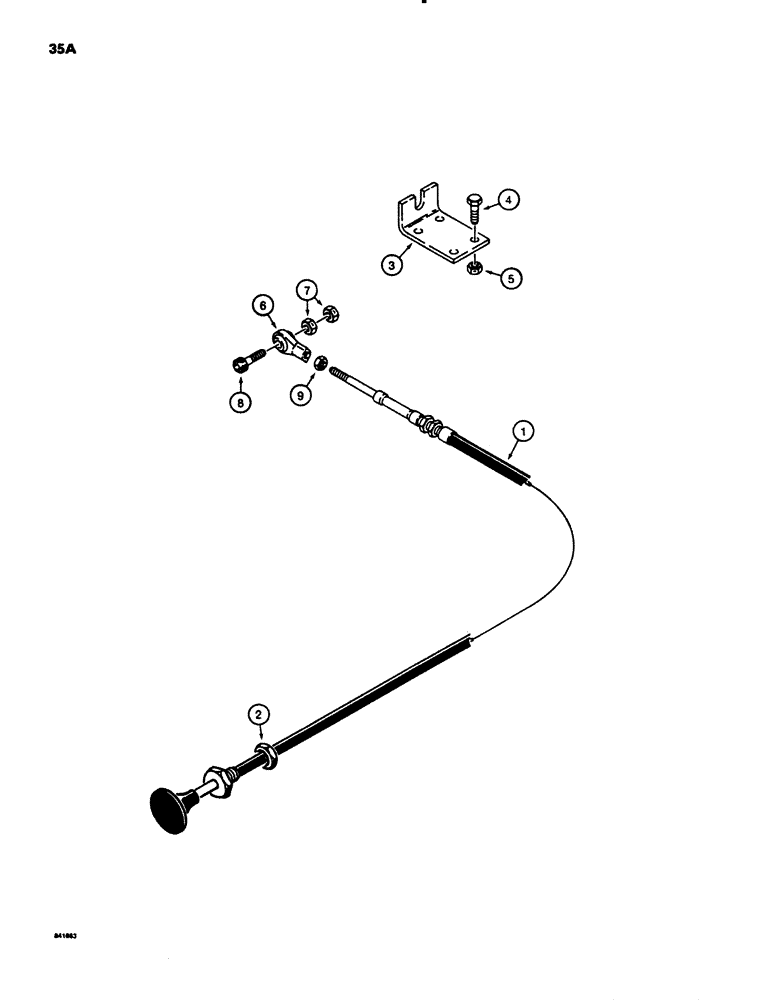

Запчасти Case P60 (035A) - THROTTLE AND ENGINE STOP CONTROLS, DEUTZ DIESEL ENGINE SERIAL NUMBER 1232821 AND AFTER (10) - ENGINE

1

H670349

CABLE

- throttle control, Includes: Ref. 2

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, 3/4" - 16 NF

1шт.

3

H430215

LUG

BRACKET - throttle cable

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

6

H433283

BALL JOINT

- cable

1шт.

7

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NC

2шт.

8

165-36

HEX SOC SCREW,#10 - 32 x 1 1/4"

SCREW - hex socket head, No. 10 - 32 NC x 1-1/4"

1шт.

9

129-668

NUT - hex, No. 10 - 32 NC

1шт.
