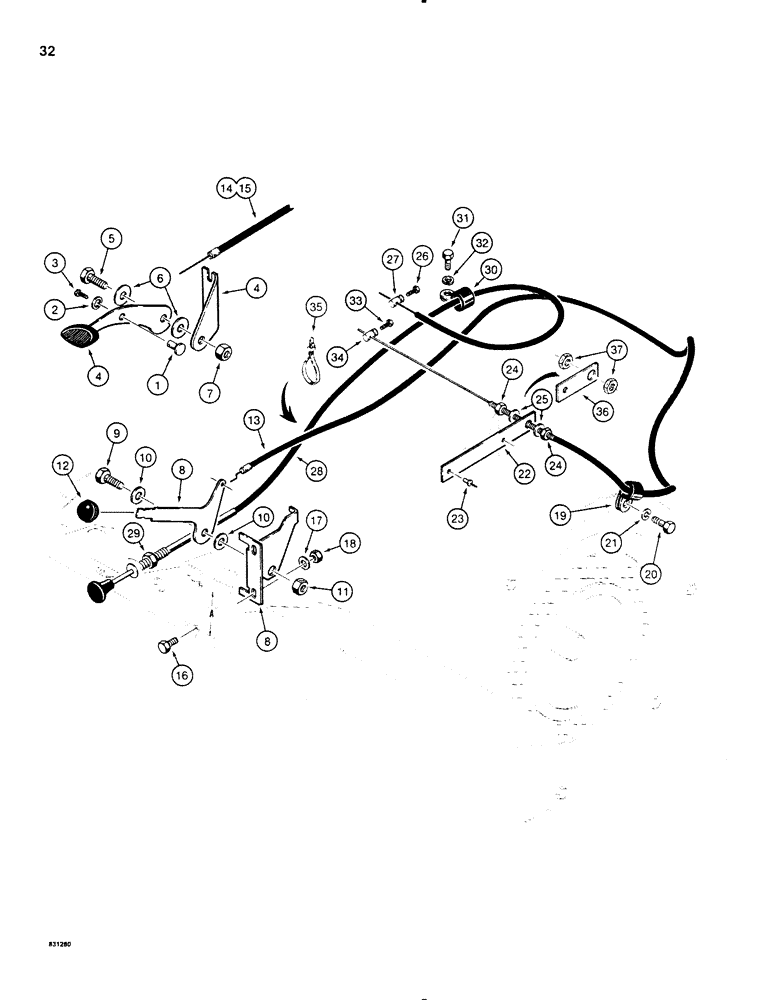

Запчасти Case P60 (032) - THROTTLE AND CHOKE CONTROLS, WISCONSIN GAS ENGINES (10) - ENGINE

H561589

CONTROL

LEVER ASSEMBLY - throttle control, used on some early models, reference dimension "A" is 1-5/8", Includes: Refs. 1-7

1шт.

H43034

JOINT TURNING

STOP - wire, throttle, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

PIN - swivel

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

3

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

MACHINE SCREW - slotted, No. 8-32 NC x 5/16"

1шт.

4

NSS

NOT SOLD SEPARAT

LEVER - throttle control

1шт.

5

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4"

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - special

2шт.

7

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4" - 28 NF

1шт.

H578773

CONTROL

LEVER ASSEMBLY - throttle control, reference dimension "A" is 2-3/16", for service order H581736, H244434, and H244467, Includes: H581736 and Refs. 8-13

1шт.

H581736

CONTROL BLOCK

LEVER ASSEMBLY - throttle control, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

LEVER - throttle control

1шт.

9

114-308

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 3/4"

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - special, nylon

2шт.

11

131-81

LOCK NUT,7/16"-20, GB

NUT - hex, self-locking, 7/16" - 20 NF

1шт.

12

H244434

KNOB

- lever

1шт.

13

H244467

CONTROL BLOCK

CABLE - throttle control 69" long wire

1шт.

14

H559781

ELECTRICAL WIRE

CABLE - throttle control, 60" long wire, used on H561589 lever, 30+4 only

1шт.

15

H559674

HARNESS

CABLE - throttle control, 56" long wire, used with H561589 lever, 40+4 only

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4", if used

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

H32698

CLIP

CLAMP - throttle cable, attaches to flywheel screen

1шт.

20

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

H194852

BRACKET

- throttle cable mounting

1шт.

23

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16" x 3/8" long, bracket mounting

2шт.

24

H243782

NUT

- special, 3/16" - 16 conduit

2шт.

25

195-513

WASHER,#10

- flat, No 10

2шт.

26

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

MACHINE SCREW - hex head, No. 8-32 NC x 3/8"

1шт.

27

H42796

STOP

- wire, choke cabel

1шт.

28

H501916

CABLE

- choke, Includes: Ref. 29

1шт.

29

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 16 NC

1шт.

30

H32698

CLIP

CLAMP - choke cable

1шт.

31

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

33

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

MACHINE SCREW - hex head, No. 8-32 NC x 3/8"

1шт.

34

H42796

STOP

- wire, throttle cable if used

1шт.

35

R38237

STRAP

TIE STRAP - cable

1шт.

36

H102731

RETAINER

BRACKET - throttle, 30+4 Special only

1шт.

37

131-420

NUT - conduit, bracket and cable, if used

2шт.
