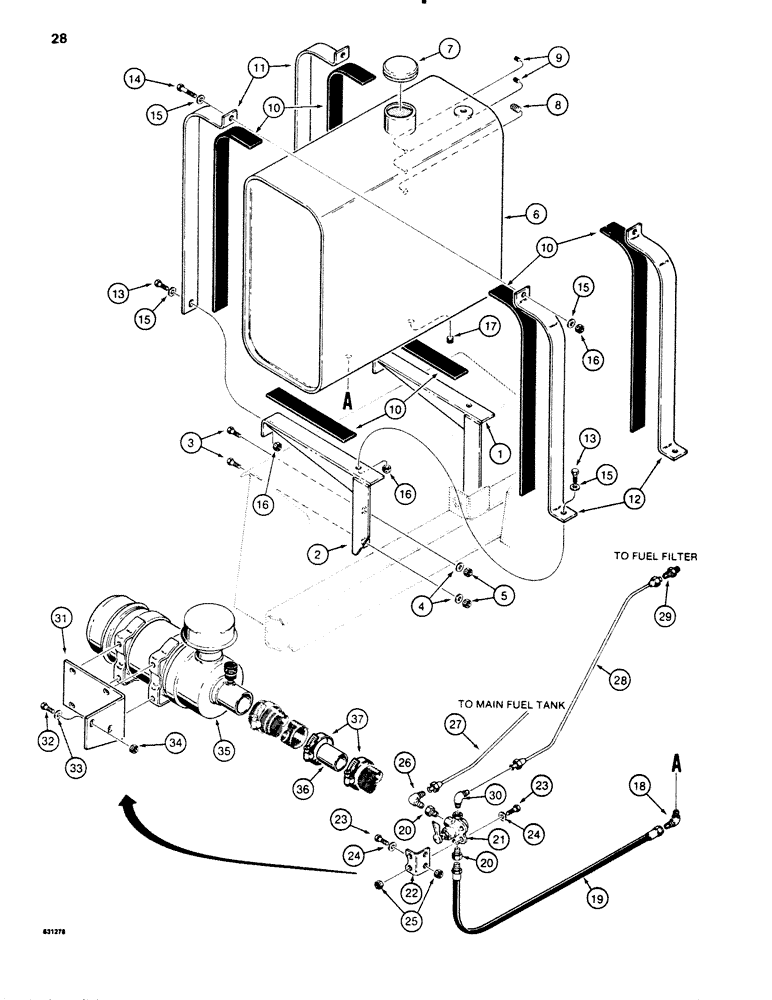

Запчасти Case P60 (028) - H612887 AUXILIARY FUEL TANK KIT, FRONT MOUNTED (10) - ENGINE

H612887

KIT

- auxiliary fuel tank, front mounted, Includes: Ref. 1-9

1шт.

1

H609834

BRACKET - tank support, front

1шт.

2

H609842

BRACKET - tank suport, front

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

6

H609826

FUEL TANK

TANK - ausiliary fuel, Includes: Ref. 7-9

1шт.

7

L12291

CAP

- fuel filler

1шт.

8

221-841

PLUG

PIPE PLUG - hex socket head, 1/4" NPT

1шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

PIPE PLUG - hex socket head, 1/8" NPT

2шт.

10

H10363

STRIP

CUSHION - rubber, tank mounting

1шт.

11

H301309

STRAP - tank mounting, inside

2шт.

12

H301317

STRAP - tank mounting, outside

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

195-104

WASHER,3/8"

- flat, 3/8"

8шт.

16

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

17

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PIPE PLUG - hex socket head, 1/4" NPT

1шт.

18

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

- 90 degree

1шт.

19

H50302

LINE

HOSE - fuel, 34" (864 mm) long

1шт.

20

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - pipe reducing, 1/4" x 1/8" NPT

2шт.

21

H302331

VALVE

- fuel

1шт.

22

H302315

BRACKET - valve mounting

1шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

24

195-515

WASHER,#12

- flat, 1/4"

4шт.

25

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

26

REF

INSTRUCTION

ELBOW - removed from fuel filter

1шт.

27

H525543

LINE,36" L

TUBE - valve to main fuel tank

1шт.

28

H541961

TUBE - valve to fuel filter 0.25" OD x 24.5" L

1шт.

29

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight

1шт.

30

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

- 90 degree

1шт.

31

H301325

BRACKET - air cleaner mounting

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

33

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

34

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

35

REF

INSTRUCTION

AIR CLEANER - see figure 14 for parts and mounting

1шт.

36

H69047

TUBE - hose splicing

1шт.

37

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
