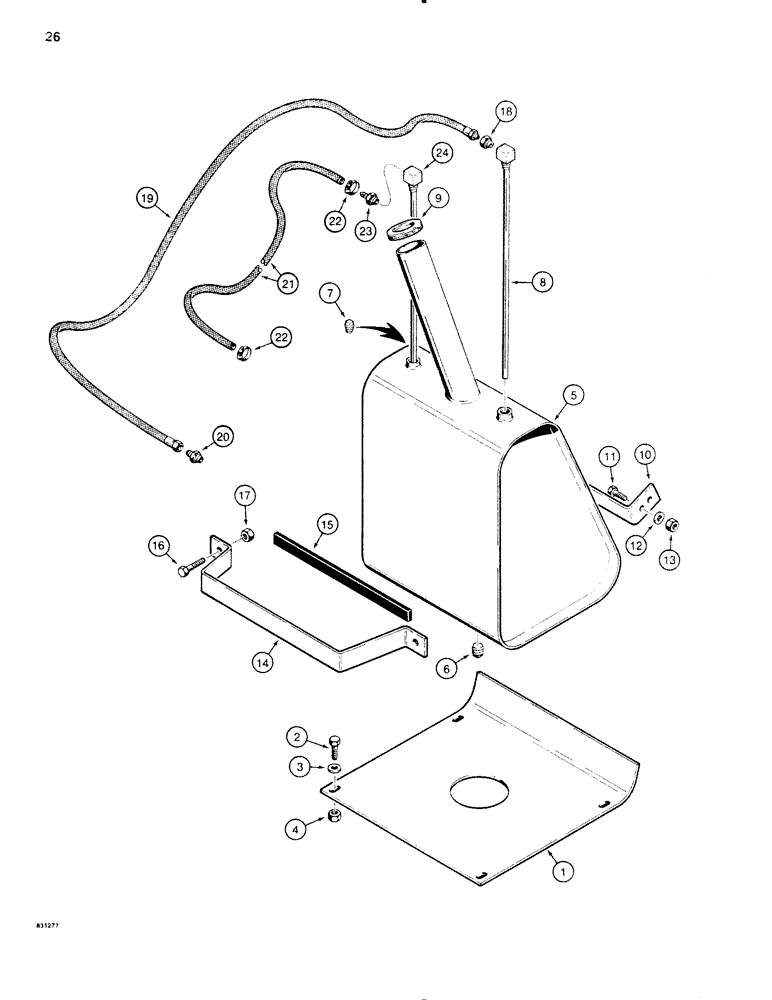

Запчасти Case P60 (026) - FUEL TANK AND FUEL LINES, DEUTZ DIESEL ENGINE (10) - ENGINE

1

H190710

PLATE

- base, fuel tank

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

4

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

5

H559468

FUEL TANK

TANK - fuel, Includes: Ref. 6-9

1шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

PIPE PLUG - hex socket head, 1/2" NPT, drain

1шт.

7

221-843

PLUG,Hex Soc, 3/8"-18

PIPE PLUG - hex socket head, 3/8" NPT, top tank, not used, replace with ref. 24 (H224089)

1шт.

8

H224089

TUBE,0.375" OD x 15.25" L

- tank outlet

1шт.

9

H151274

CYLINDER END CAP

CAP - fuel filler

1шт.

10

H190686

ANGLE

SUPPORT - fuel tank, front

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NjC

2шт.

14

H190702

BAND

- fuel tank mounting, rear

1шт.

15

H10363

STRIP

CUSHION - rubber, fuel tank

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

222-803

HYD CONNECTOR,7/16"-20, 45º Fl x 1/4" NPT

CONNECTOR - straight, 1/4" tube OD

1шт.

19

H224758

FUEL TUBE

HOSE - fuel line, 28" (711 mm) long

1шт.

20

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - pipe reducing, 1/4" x 1/8" NPT

1шт.

21

H224923

HOSE

- fuel return, 22" (559 mm) long

1шт.

22

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

23

220-502

COUPLING, BREAK AWAY

BARB FITTING - straight, hose coupling

1шт.

24

H224089

TUBE,0.375" OD x 15.25" L

- fuel return

1шт.
