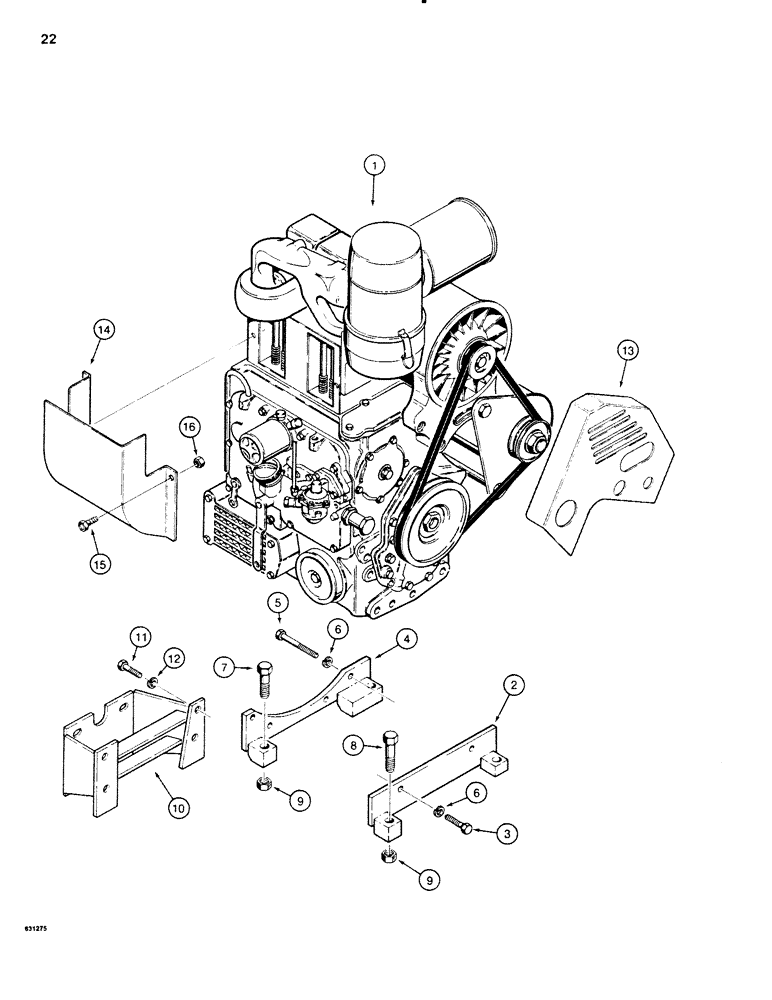

Запчасти Case P60 (022) - ENGINE MOUNTING, DEUTZ DIESEL (10) - ENGINE

1

H569558

ENGINE - Deutz F2L-912 diesel, see Parts Catalog No. H4895 for additional breakdown, 40+4 only

1шт.

2

H570705

BRACKET - engine mounting, blower end

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 x 1.50 x 25 mm (8.8)

2шт.

4

H570721

BRACKET

- engine mounting, flywheel end

1шт.

5

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex head, 10 mm - 1.5 x 70 mm (8.8)

2шт.

6

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

2шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

10

H571638

BRACKET

- auxiliary pump mounting

1шт.

11

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex head, 14 mm - 2.0 x 35 mm (8.8)

4шт.

12

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm

4шт.

13

H223958

GUARD - belt, comes with Deutz engine and mounts with existing hardware, order from Deutz and rework

1шт.

14

H658765

DEFLECTOR

- engine air, Deutz

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.
