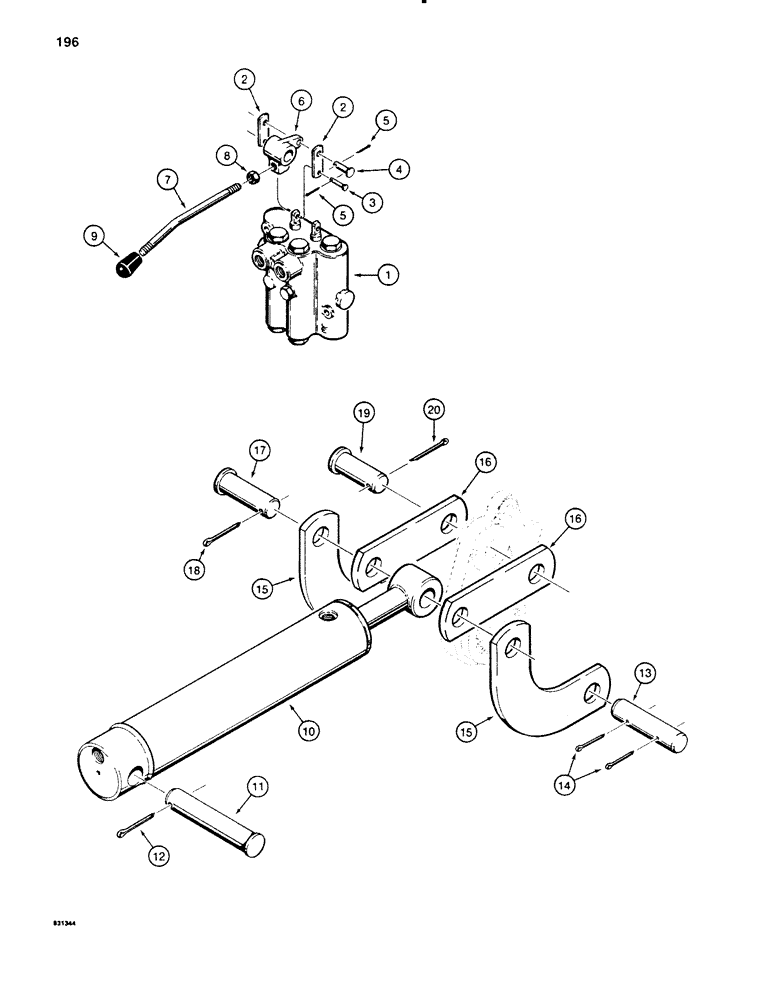

Запчасти Case P60 (196) - BOOM LIFT CONTROLS AND CYLINDER MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H550079

LOCK VALVE

VALVE ASSEMBLY - steering and boom, parts list figure 52 lift controls

1шт.

2

H185066

DRAG LINK

LINK - spool to lever boom lift controls

2шт.

3

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long, spool boom lift controls

1шт.

4

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long, lever boom lift controls

1шт.

5

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Boom lift controls 1/16" x 1/2"

2шт.

6

H275263

LEVER

- boom handle lift controls

1шт.

7

H182063

HANDLE

- lever, boom control lift

1шт.

8

87016560

JAM NUT,Jam, 3/8"-16, G5

Boom lift controls Jam, 3/8"-16, G5

1шт.

9

A14051

GRIP

KNOB - handle boom lift controls

1шт.

10

H530519

CYLINDER BLOCK

CYLINDER - boom lift, parts list figure 200, mounting

1шт.

11

H114983

AXLE PIN,31.72mm OD x 163.51mm L

PIN - cylinder retaining, closed end, boom mounting

1шт.

12

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Boom cylinder mounting 1/4" x 1 3/4"

1шт.

13

H150144

AXLE PIN

PIN - curved link, retaining, boom cylinder mounting

1шт.

14

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), , Boom cylinder mounting 3/16" x 1 3/4"

2шт.

15

H114108

DRAG LINK

LINK - curved, boom cylinder mounting

2шт.

16

H114116

DRAG LINK

LINK - straight, boom cylinder mounting

2шт.

17

H114975

AXLE PIN

PIN - links to cylinder, rod end, boom mounting

1шт.

18

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Boom cylinder mounting 1/4" x 1 3/4"

1шт.

19

H114959

AXLE PIN

PIN - link to boom liver, cylinder mounting

1шт.

20

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Boom cylinder mounting 1/4" x 1 3/4"

1шт.
