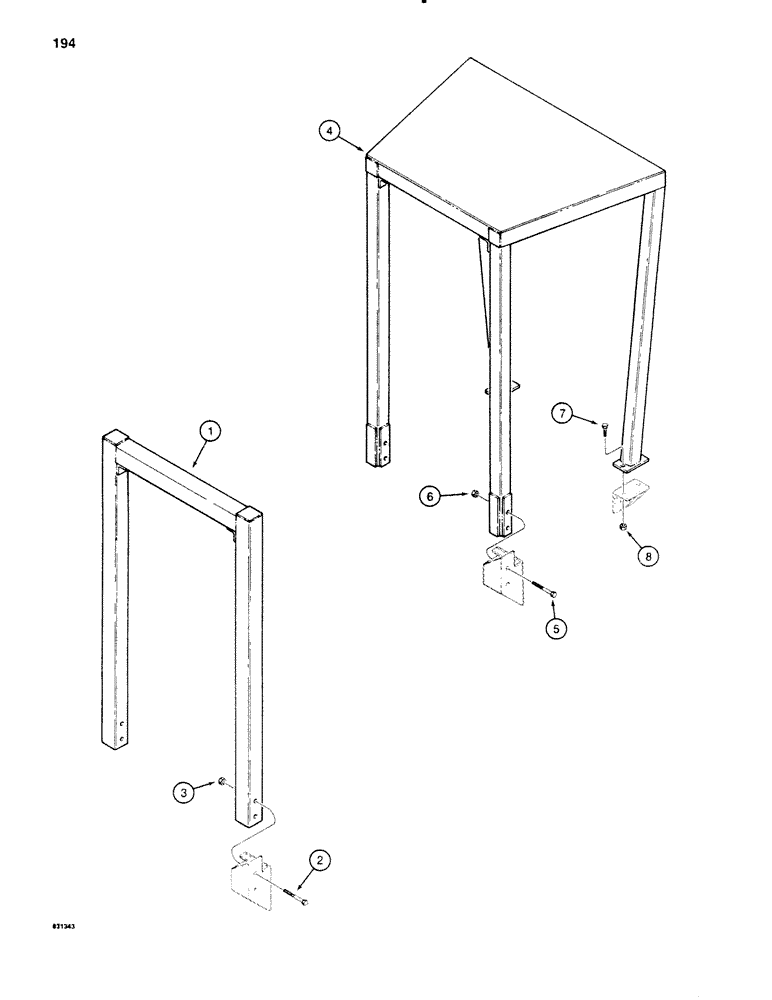

Запчасти Case P60 (194) - ROPS CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H594630

ROPS CANOPY - two post, machinery item, see figure 1 for ordering

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2 post ROPS Hex, 1/2"-13 x 4 1/2", G5

4шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC two post rops

4шт.

4

H598680

ROPS CANOPY - four post, machinery item, see figure 1 for ordering

1шт.

5

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4 post ROPS Hex, 1/2"-13 x 4 1/2", G5

4шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC four post rops

4шт.

7

H719559

BOLT

- hex head, 1/2" - 13 NC x 1-1/4" four post rops

4шт.

8

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, , 4 post ROPS 1/2"-13, GC

4шт.
