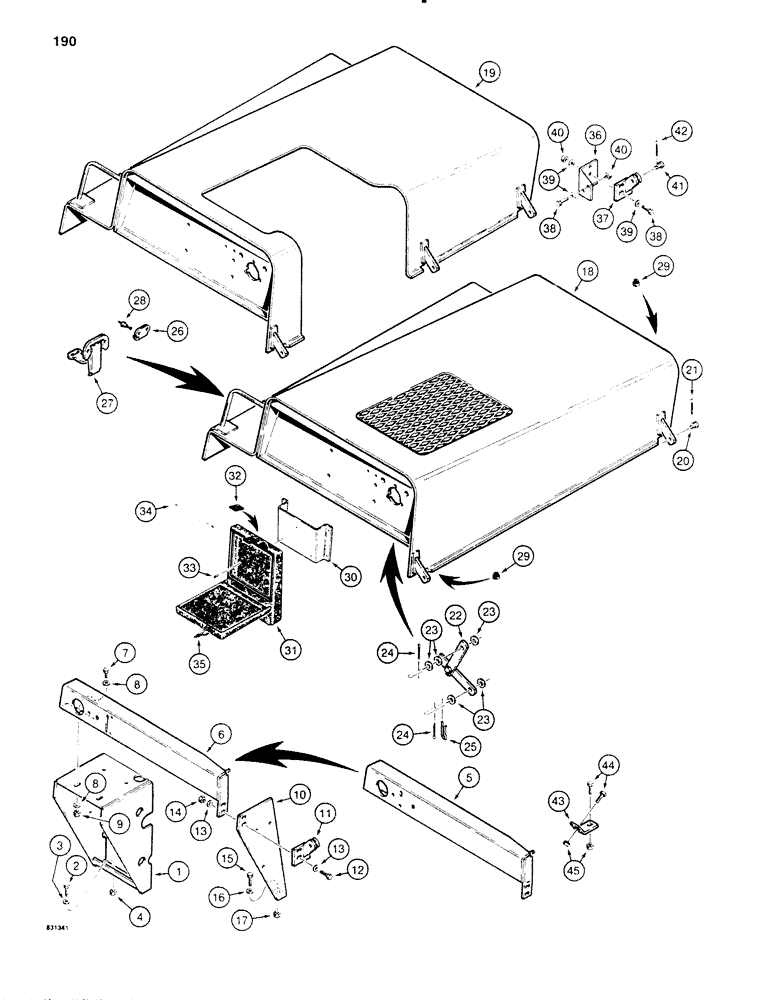

Запчасти Case P60 (190) - CONTROL CONSOLE, INSTRUMENT PANEL, AND HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H569269

CONSOLE - control, includes bracket for pump control mounting, used before Trencher SN 3450, no longer used, for service order H578534, not shown

1шт.

1

H578534

CONSOLE

- control, used on Trencher SN 3450 and after, see figure 68 for pump control bracket and mounting

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

5

H569244

PANEL

- instrument, used before Trencher SN 3450

1шт.

6

H578575

PANEL

- instrument, used on Trencher SN 3450 and after

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

10

H219022

SUPPORT - panel and hood bracket

1шт.

11

H558445

SUPPORT

BRACKET - hood hinge, rear

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

18

H569434

HOOD

- Wisconisn engine, 40+4

1шт.

19

H571422

HOOD

- Deutz engine, 40+4

1шт.

20

H25957

CLEVIS COUPLING

CLEVIS PIN - special, hood retaining

2шт.

21

132-340

COTTER PIN,5/32" x 3/4"

pin retaining 5/32" x 3/4"

2шт.

22

H532168

RETAINER

ASSEMBLY - hood

1шт.

23

195-105

WASHER,7/16"

- flat, 7/16"

1шт.

24

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1-2шт.

25

A70250

PIN

HAIR PIN - retaining

1шт.

26

H196766

ROD

HOOK - hood latch

2шт.

27

H196758

LATCH ASSY.

CLAMP - hood latch

2шт.

28

151-532

RIVET,Pop, 3/16" x .700"

POP RIVET - 3/16" x 1/2" long

4шт.

29

H66522

BUMPER

- rubber, hood, if used

2шт.

30

H359505

BRACKET

- manual box

1шт.

31

R38893

CASE

MANUAL BOX - operators, Includes: Ref. 32

1шт.

32

N7120

LATCH

- manual box

1шт.

33

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16" x 1/2" long

7шт.

34

A141917

ROPE

LANYARD - manual box

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

36

H223594

ANGLE

- bracket mounting, Deutz only, additional parts used with hood

1шт.

37

H558445

SUPPORT

BRACKET - hood hinge, center, additional parts used with Deutz hood

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Additional parts used with Deutz hood Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

39

195-521

WASHER,5/16", SAE

- flat, 5/16", additional parts used with Deutz hood

4-8шт.

40

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, additional parts used with Deutz hood

4шт.

41

H25957

CLEVIS COUPLING

CLEVIS PIN - special, hood retaining, additional parts used with Deutz hood

1шт.

42

132-340

COTTER PIN,5/32" x 3/4"

pin retaining, additional parts used with Deutz hood 5/32" x 3/4"

1шт.

43

H224352

ANGLE

- console support, additional parts used with Deutz hood

1шт.

44

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Additional parts used with Deutz hood Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

45

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, Additional parts used with Deutz hood

2шт.
