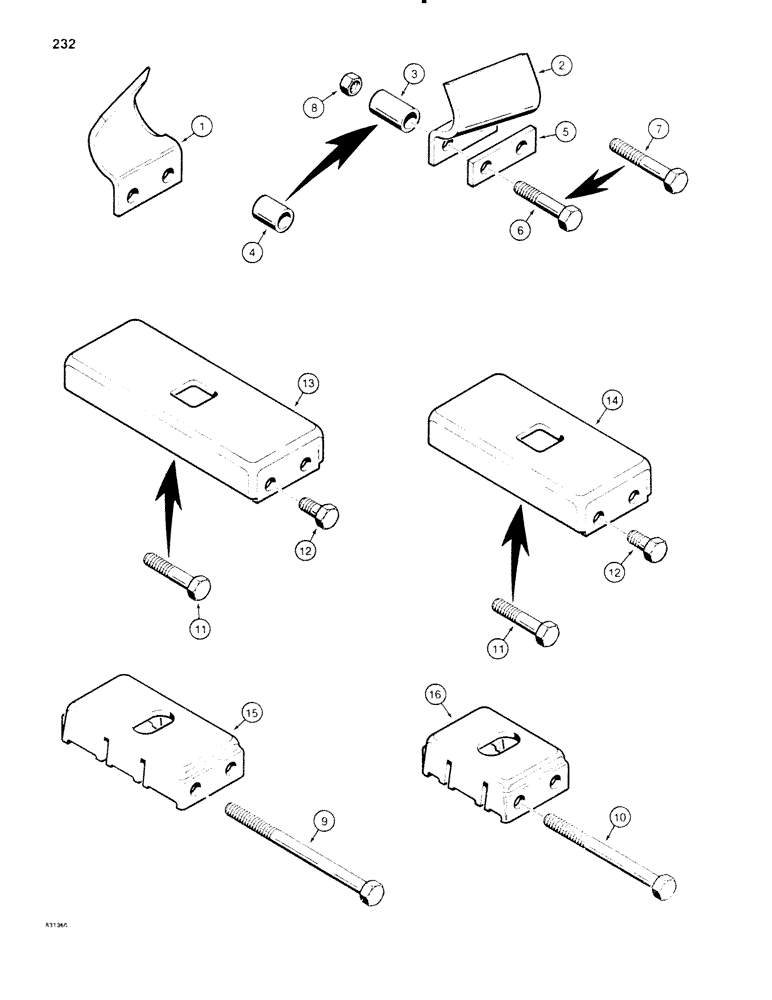

Запчасти Case P60 (232) - DIGGING TEETH, STANDARD, 2" THRU 16" WIDTH, STANDARD PARTS, 6" WIDTH, NUMBER OF CHAIN PITCHES (89) - TOOLS

1

H131276

TOOTH

- standard, left-hand (48)

12шт.

1

H131276

TOOTH

- standard, left-hand (58)

14шт.

1

H131276

TOOTH

- standard, left-hand (60)

15шт.

1

H131276

TOOTH

- standard, left-hand (70)

17шт.

2

H131268

TOOTH

- standard, right-hand (48)

12шт.

2

H131268

TOOTH

- standard, right-hand (58)

14шт.

2

H131268

TOOTH

- standard, right-hand (60)

15шт.

2

H131268

TOOTH

- standard, right-hand (70)

18шт.

3

H138008

SPACER

- long (48)

12шт.

3

H138008

SPACER

- long (58, 60)

16шт.

3

H138008

SPACER

- long (70)

20шт.

4

H138016

SPACER

- short (48)

36шт.

4

H138016

SPACER

- short (58)

42шт.

4

H138016

SPACER

- short (60)

44шт.

4

H138016

SPACER

- short (70)

50шт.

5

H130815

SPACER

- flat (48)

24шт.

5

H130815

SPACER

- flat (58)

29шт.

5

H130815

SPACER

- flat (60)

30шт.

5

H130815

SPACER

- flat (70)

35шт.

6

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

36шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 3" (58)

42шт.

6

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(60) Hex, 5/8"-11 x 3", G5

44шт.

6

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(70) Hex, 5/8"-11 x 3", G5

50шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (48)

12шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (58, 60)

16шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (70)

20шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (48)

48шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (58)

58шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (60)

60шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (70)

70шт.

3

H138008

SPACER

- long (48), parts to change 6" to 8" width

24шт.

3

H138008

SPACER

- long (58, 60), parts to change 6" to 8" width

28шт.

3

H138008

SPACER

- long (70), parts to change 6" to 8" width

34шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (48), Parts to change 6" to 8" width

24шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (58, 60), Parts to change 6" to 8" width

28шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (70) Parts to change 6" to 8" width

34шт.

1

H131276

TOOTH

- standard, left-hand (48), parts to change 6" to 10" width

2шт.

1

H131276

TOOTH

- standard, left-hand (58, 60), parts to change 6" to 10" width

3шт.

1

H131276

TOOTH

- standard, left-hand (70), parts to change 6" to 10" width

4шт.

2

H131268

TOOTH

- standard, right-hand (48, 58, 60), parts to change 6" to 10" width

2шт.

2

H131268

TOOTH

- standard, right-hand (70), parts to change 6" to 10" width

3шт.

3

H138008

SPACER

- long (48, 58, 60), parts to change 6" to 10" width

12шт.

3

H138008

SPACER

- long (70), parts to change 6" to 10" width

16шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (48, 58, 60), Parts to change 6" to 10" width

12шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (70), Parts to change 6" to 10" width

16шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(48), Parts to change 6" to 10" width Hex, 5/8"-11 x 6 1/2", G5

8шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(58), Parts to change 6" to 10" width Hex, 5/8"-11 x 6 1/2", G5

10шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(60), Parts to change 6" to 10" width Hex, 5/8"-11 x 6 1/2", G5

12шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(70), Parts to change 6" to 10" width Hex, 5/8"-11 x 6 1/2", G5

14шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (48), parts to change 6" to 10" width

4шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (58), parts to change 6" to 10" width

5шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (60), parts to change 6" to 10" width

6шт.

16

H148031

SUPPORT

BRADKET - 10" tooth mounting (70), parts to change 6" to 10" width

7шт.

1

H131276

TOOTH

- standard, left-hand (48), parts to change 6" to 12" width

3шт.

1

H131276

TOOTH

- standard, left-hand (60, 70), parts to change 6" to 12" width

4шт.

2

H131268

TOOTH

- standard, right-hand (48), parts to change 6" to 12" width

3шт.

2

H131268

TOOTH

- standard, right-hand (60), parts to change 6" to 12" width

4шт.

2

H131268

TOOTH

- standardl, right-hand (70), parts to change 6" to 12" width

5шт.

3

H138008

SPACER

- long (48), parts to change 6" to 12" width

8шт.

3

H138008

SPACER

- long (60, 70), parts to change 6" to 12" width

12шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (48), Parts to change 6" to 12" width

8шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (60, 70), Parts to change 6" to 12" width

12шт.

9

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8" (48), parts to change 6" to 12" width

8шт.

9

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8" (60), parts to change 6" to 12" width

10шт.

9

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8" (70), parts to change 6" to 12" width

12шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(48), Parts to change 6" to 12" width Hex, 5/8"-11 x 6 1/2", G5

4шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(60, 70), Parts to change 6" to 12" width Hex, 5/8"-11 x 6 1/2", G5

6шт.

15

H148049

SUPPORT

BRACKET - 12" tooth mounting (48), parts to change 6" to 12" width

4шт.

15

H148049

SUPPORT

BRACKET - 12" tooth mounting (60), parts to change 6" to 12" width

5шт.

15

H148049

SUPPORT

BRACKET - 12" tooth mounting (70), parts to change 6" to 12" width

6шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (48), parts to change 6" to 12" width

2шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (60, 70), parts to change 6" to 12" width

3шт.

1

H131276

TOOTH

- standard, left-hand (60)

5шт.

2

H131268

TOOTH

- standard, right-hand (60)

5шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (60)

12шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (60)

20шт.

9

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8" (60)

4шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(60) Hex, 5/8"-11 x 6 1/2", G5

6шт.

11

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

(60) Hex, 5/8"-11 x 2 3/4", G5

10шт.

12

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(60) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

20шт.

14

H534057

BRACKET

- 14" tooth mounting (60)

5шт.

This bracket fits standard chain only.

1шт.

15

H148049

SUPPORT

BRACKET - 12" tooth mounting (60)

2шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (60)

3шт.

1

H131276

TOOTH

- standard, left-hand (60), parts to change 6" to 16" width

5шт.

2

H131268

TOOTH

- standard, right-hand (60), parts to change 6" to 16" width

5шт.

3

H138008

SPACER

- long (60), parts to change 6" to 16" width

12шт.

6

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(60), Parts to change 6" to 16" width Hex, 5/8"-11 x 3", G5

8шт.

7

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (60), Parts to change 6" to 16" width

12шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC (60), Parts to change 6" to 16" width

24шт.

9

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex head, 5/8" - 11 NC x 8" (60), parts to change 6" to 16" width

4шт.

10

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

(60), Parts to change 6" to 16" width Hex, 5/8"-11 x 6 1/2", G5

4шт.

11

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

(60), Parts to change 6" to 16" width Hex, 5/8"-11 x 2 3/4", G5

4шт.

12

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(60), Parts to changes 6" to 16" width Hex, 5/8"-11 x 1 1/4", G5, Full Thd

24шт.

13

H534065

BRACKET

- 16" tooth mounting (60), parts to change 6" to 16" width

4шт.

This bracket fits standard chain only.

1шт.

14

H534057

BRACKET

- 14" tooth mounting (60), parts to change 6" to 16" width

2шт.

15

H148049

SUPPORT

BRACKET - 12" tooth mounting (60), parts to change 6" to 16" width

2шт.

16

H148031

SUPPORT

BRACKET - 10" tooth mounting (60), parts to change 6" to 16" width

2шт.
