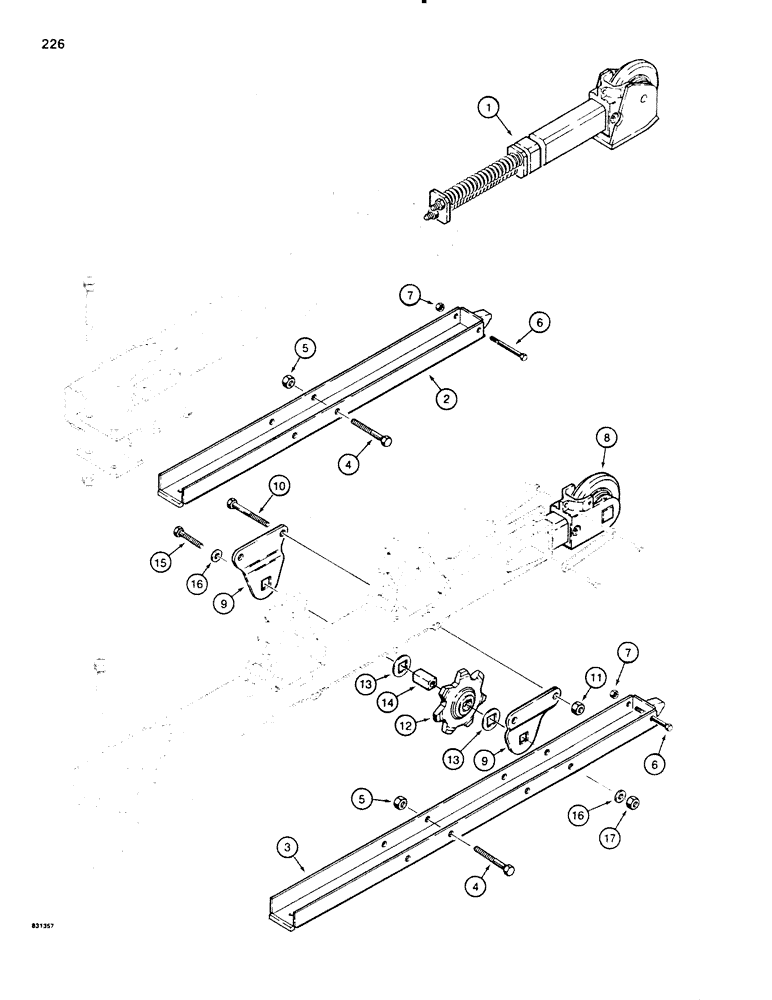

Запчасти Case P60 (226) - UNIBOOMS, CHANNEL AND SPROCKET BOOMS (89) - TOOLS

1

H645358

END

BOOM END ASSEMBLY - channel uniboom, parts list figure 228 parts

1шт.

2

H651885

CHANNEL

- boom, 3 foot depth, mounts to bottom of boom parts

1шт.

2

H651869

CHANNEL

- boom, 4 foot depth, mounts to bottom of boom parts

1шт.

3

H648105

CHANNEL

- boom, 5 foot depth, mounts to bottom of boom parts

1шт.

4

113-649

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex head, 5/8" - 11 NC x 4-1/4" channel boom parts

2-4шт.

5

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, Channel boom parts

2-4шт.

6

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex head, 1/2" - 13 NC x 4-1/4" channel boom parts

1шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC channel boom parts

1шт.

8

H531087

BOOM

END ASSEMBLY - parts list figure 228 sprocket parts

1шт.

9

H388959

BRACKET

- sprocket mounting boom parts

2-4шт.

10

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Sprocket boom parts Hex, 5/8"-11 x 4 1/2", G5

2-4шт.

11

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, Sprocket boom parts

2-4шт.

12

H531251

PINION

SPROCKET ASSEMBLY - boom, includes refs. 10 - 12 on figure 224 parts

1-2шт.

13

H117606

WASHER

- sprocket boom parts

2-4шт.

14

H251033

BOOM

SHAFT - sprocket mounting boom parts

1-2шт.

15

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Sprocket boom parts Hex, 5/8"-11 x 3 1/4", G5

1-2шт.

16

195-108

WASHER,5/8"

- flat, - 11 NC sprocket boom parts 5/8"

2-4шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, Sprocket boom parts

1-2шт.
