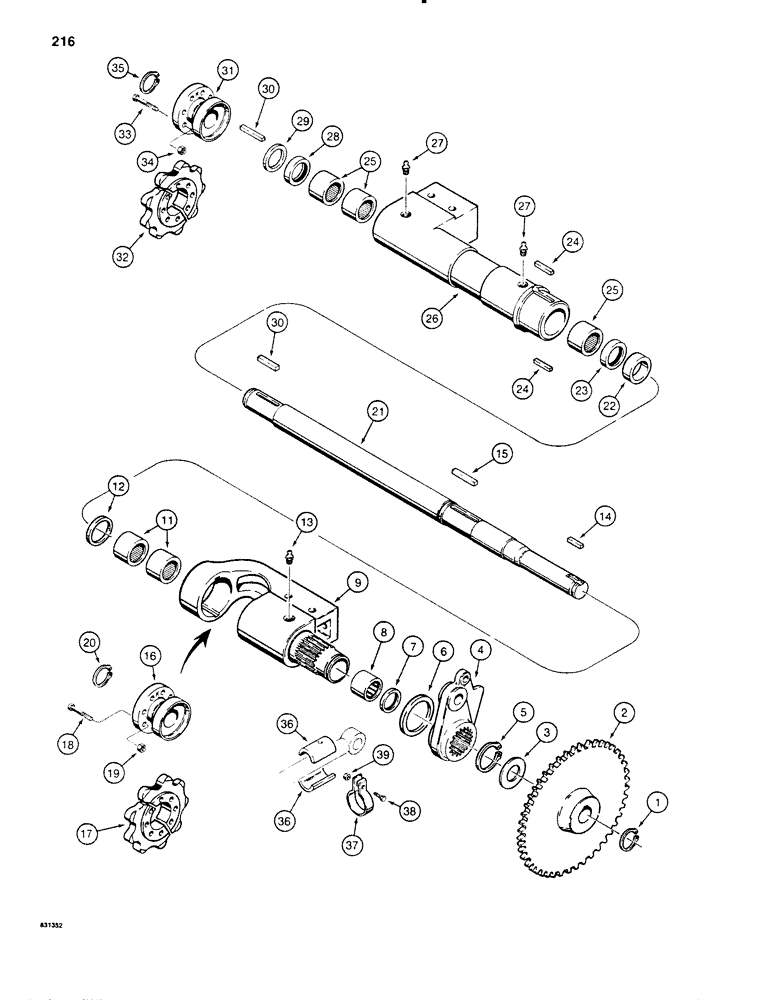

Запчасти Case P60 (216) - OFFSET TRENCHER BOOM MOUNTING SHAFT (89) - TOOLS

1

D23191

SNAP RING,#200, Ext

RING, Snap, , drive shaft, outer, right-hand #200, Ext

1шт.

2

H216846

DRIVE SPROCKET

SPROCKET - driven

1шт.

3

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

THRUST WASHER -, Serial Range: sprocket-crank

1шт.

4

H150276

BOOM

CRANK - boom positioning

1шт.

5

F11296

SNAP RING,#300, Ext

RING, Snap, , drive shaft, inner #300, Ext

1шт.

6

H150375

WASHER

THRUST WASHER - boom crank

1шт.

H617530

PIVOT ASSY.

PIVOT ASSEMBLY - offset boom mounting, center, Includes: Ref. 7-13

1шт.

7

H754804

OIL SEAL

SEAL - grease, right-hand

1шт.

8

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - pivot, right-hand

1шт.

9

H313577

PIVOT - offset boom mounting, center

1шт.

11

H757534

BEARING

- pivot, left-hand

1шт.

12

H757526

SEAL

- grease, left-hand

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

14

H219287

KEY

- square, 1/2" x 1-3/4" long

1шт.

15

H115816

KEY

- square, 1/2" x 3-1/4" long

1шт.

16

H313536

HUB

- sprocket mounting, center

1шт.

17

H148569

DRIVE SPROCKET

SPROCKET - split, if used

1шт.

18

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8, If used

8шт.

19

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, grade C, if used

8шт.

20

F40807

SNAP RING,#225, Ext

Ring, Snap, , hub #225, Ext

1шт.

21

H313585

DRIVE SHAFT

SHAFT - offset trencher drive

1шт.

22

H330837

SPACER - shaft

1шт.

o.d. 2.310/2.9986". i.d. 2.310/2.305". 1.00" long.

1шт.

The above parts will not be serviced. Give size to the dealer and have him obtain locally.

1шт.

23

H757526

SEAL

- grease, left-hand

1шт.

24

H315861

KEY - square, 1/2" x 2-1/8" long

2шт.

2.125" long. .500" sq. + .000. - .002".

1шт.

The above parts will not be serviced. Give size to the dealer and have him obtain locally.

1шт.

H617548

PIVOT ASSEMBLY - offset boom mounting, extension, Includes: Ref. 25-27

1шт.

25

H757534

BEARING

- extension pivot, right-hand (replaces H757354)

3шт.

26

H313551

PIVOT - offset boom mounting, extension

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

28

H757526

SEAL

- grease, left-hand

1шт.

29

H333328

SPACER - shaft, left-hand

1шт.

I.D. 2.20/2.18", O.D. 3.000/2.998", .31" + .0 -.03" long.

1шт.

The above parts will not be serviced. Give size to the dealer and have him obtain locally.

1шт.

30

H115816

KEY

- square, 1/2" x 3-1/4" long

1шт.

31

H216739

HUB CAP

HUB - sprocket mounting

1шт.

32

H148569

DRIVE SPROCKET

SPROCKET - split, if used

1шт.

33

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8, If used

8шт.

34

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, grade C, if used

8шт.

35

L59033

SNAP RING,#212, Ext

RING, Snap, , hub, drive shaft, outer, left-hand #212, Ext

1шт.

36

H319095

SPACER

- boom lift cylinder rod

2шт.

37

H3221117

CLAMP - spacer mounting

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

39

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.
