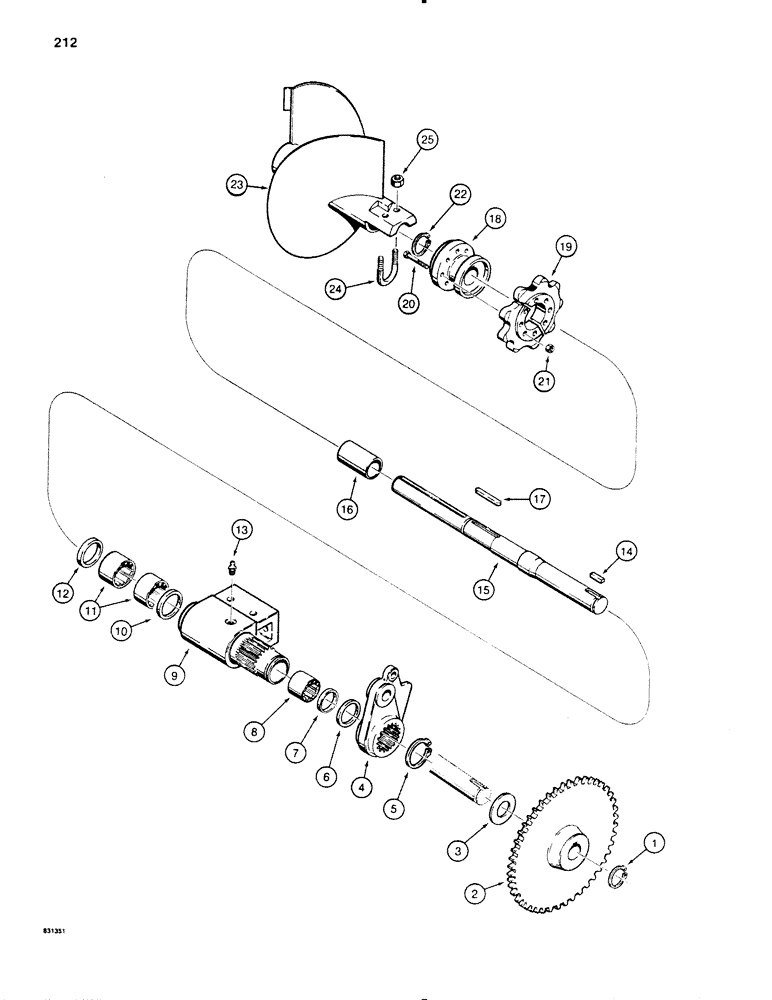

Запчасти Case P60 (212) - TRENCHER BOOM MOUNTING SHAFT AND AUGER (89) - TOOLS

1

A7611

SNAP RING,#175, Ext

RING, Snap, , drive shaft, outer, right-hand #175, Ext

1шт.

2

H150185

DRIVE SPROCKET

SPROCKET - driven

1шт.

3

H150151

WASHER

THRUST WASHER - .125" (3.18 mm) thick

1шт.

3

H340877

WASHER

THRUST WASHER - .030" (3.18 mm) thick

1шт.

4

H150276

BOOM

CRANK -boom positioning

1шт.

5

F11296

SNAP RING,#300, Ext

RING, Snap, , drive shaft, inner #300, Ext

1шт.

6

H150375

WASHER

THRUST WASHER - boom crank

1шт.

H541052

MOUNTING PARTS

PIVOT ASSEMBLY - boom mounting, Includes: Ref. 7-12

1шт.

7

H749283

SEAL

- grease

1шт.

8

H748228

BEARING, NEEDLE

BEARING - pivot

1шт.

9

H140319

HOUSING

PIVOT - boom mounting

1шт.

10

H150169

WASHER

THRUST WASHER - pivot

1шт.

11

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - pivot

2шт.

12

H759104

OIL SEAL

- grease (replaces A39273)

1шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" NPT

1шт.

14

H34488

KEY

- square, 3/8" x 1-1/2" long, if used

1шт.

14

H70045

KEY

- square, 3/8" x 1-3/4" long, if used

1шт.

H541011

SHAFT

ASSEMBLY - trencher drive, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - trencher drive (replaces H156448)

1шт.

16

H114066

SLEEVE CYLINDER

BUSHING - shaft

1шт.

17

H115816

KEY

- square, 1/2" x 3-1/4" long

1шт.

18

H114025

HUB CAP

HUB - sprocket mounting

1шт.

19

H148569

DRIVE SPROCKET

SPROCKET - split, digging chain drive, set of 2

1шт.

20

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

21

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, grade C

8шт.

22

D38248

SNAP RING,#187, Ext

RING, Snap, , drive shaft, outer, left-hand #187, Ext

1шт.

23

H551523

AUGER

- dirt

1шт.

24

H170241

HARDWARE

U-BOLT - auger retaining

1шт.

25

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

2шт.
