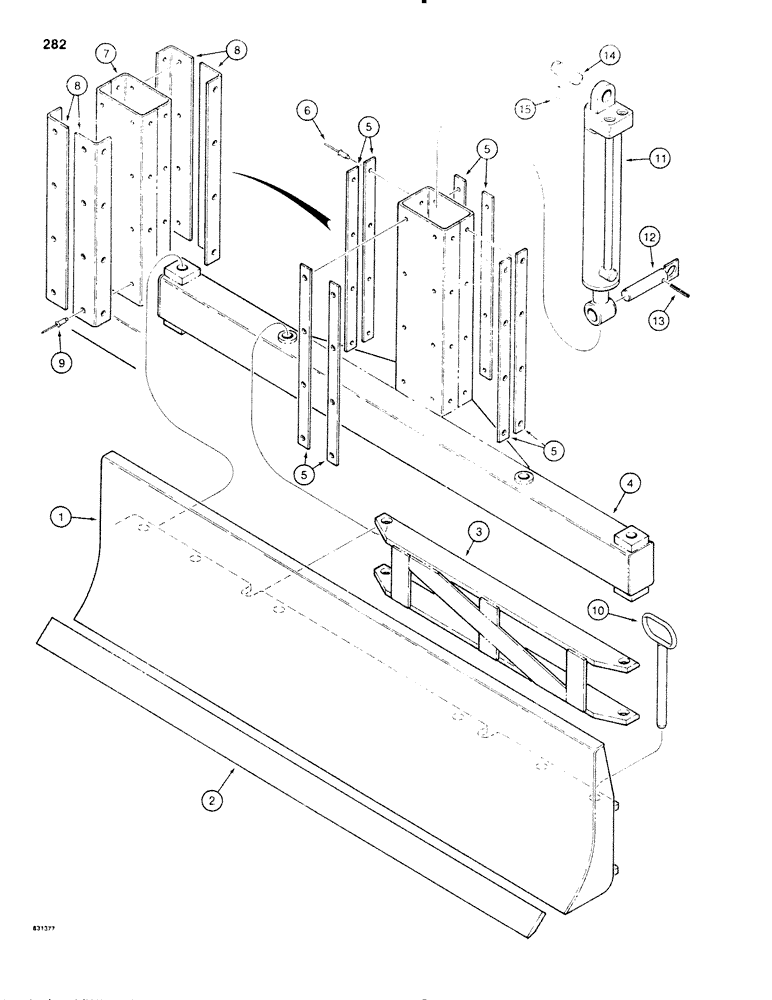

Запчасти Case P60 (282) - BACKFILL BLADE, MECHANICAL ANGLING (86) - DOZER

1

H555953

BLADE

- backfill, mechanical angling, Includes: Ref. 2

1шт.

2

H182782

BLADE

CUTTING EDGE - backfill blade, Serial Range: welds-blade

1шт.

3

H517540

DRAG LINK

LINK - blade angling

1шт.

4

H560268

FRAME

- backfill blade, used befor 30+4 SN 4350 and before 40+4 SN 3200, for service order ref. 7, Includes: Ref. 5, 6

1шт.

5

H189977

SLIDE

WEAR PLATE - frame slide

8шт.

6

148-158

RIVET,Csk, 1/4" x 3/4", Alum

- countersunk head, 1/4" x 3/4" long, aluminum

32шт.

7

H574137

FRAME

- backfill blade, used on 30+4 SN 4350 and after and on 40+4 SN 3200 and after, Includes: Ref. 8, 9

1шт.

8

H239111

BEARING

WEAR PLATE - frame slide

4шт.

9

148-158

RIVET,Csk, 1/4" x 3/4", Alum

- countersunk head, 1/4" x 3/4" long, aluminum

32шт.

10

H517607

AXLE PIN

PIN - blade link

3шт.

11

H559435

CYLINDER BLOCK

CYLINDER - blade lift, parts list figure 278

1шт.

12

H559658

PIN

- lower lift cylinder mounting

1шт.

13

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

14

H191429

AXLE PIN

PIN - upper lift cylinder mounting

1шт.

15

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.
