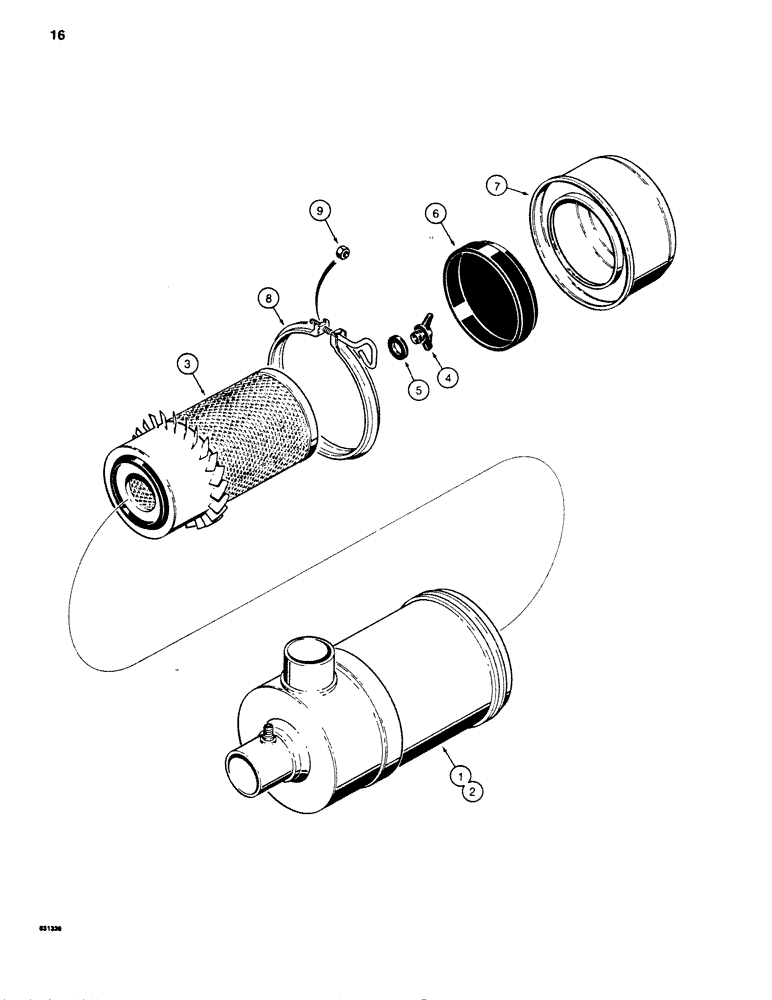

Запчасти Case P60 (016) - D55203 AIR CLEANER (10) - ENGINE

D55203

CLEANER ASSY.

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner, does not use restriction indicator, service with ref. 2 and A59569 restriction indicator, see figure 14 ref. 3

1шт.

If air cleaner does not have an air restriction indicator, it will be necessary to order the A59569 indicator with this housing.

1шт.

2

T40350

HOUSING

- air cleaner

1шт.

If air cleaner does not have an air restriction indicator, it will be necessary to order the A59569 indicator with this housing.

1шт.

3

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

D78354

WING NUT

NUT ASSEMBLY - element, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

NUT- wing

1шт.

5

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- nut

1шт.

6

D48200

BAFFLE

- rubber

1шт.

7

D48201

CUP

DUST CUP - access, air cleaner

1шт.

8

D48199

CLAMP

ASSEMBLY - cup, Includes: Ref. 9

1шт.

9

25-224

SQUARE NUT,Sq, 1/4"-20

- hex, 1/4" - 20 NC, can be used to replace cage nut

1шт.
