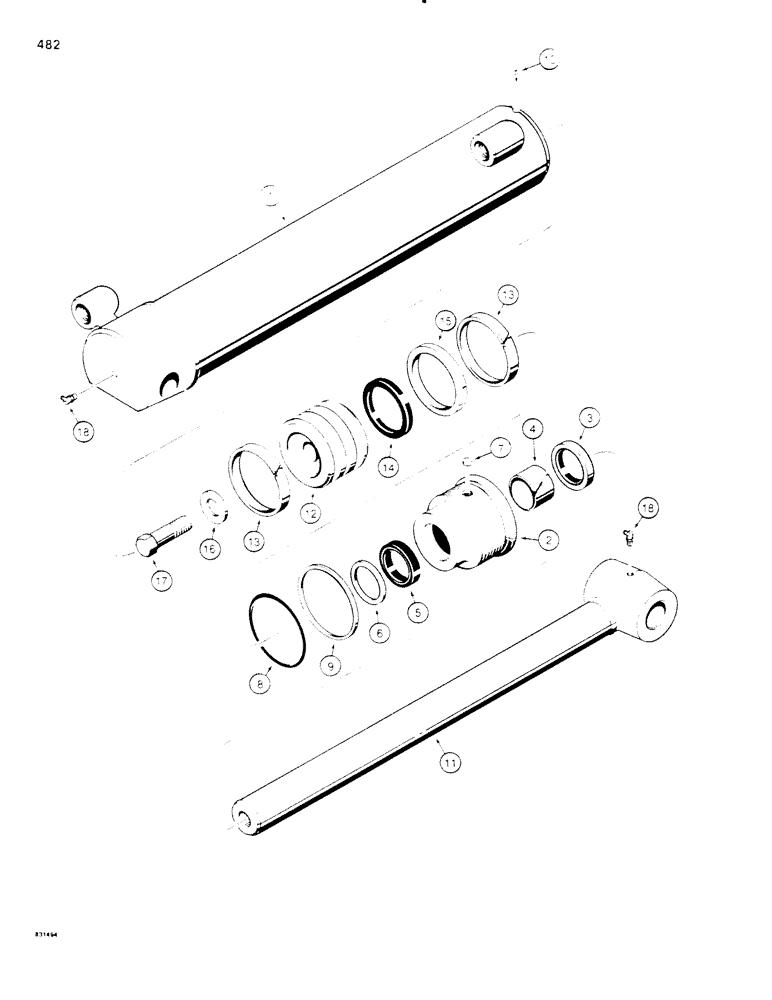

Запчасти Case P60 (482) - G100936 BOOM, DIPPER, AND BUCKET CYLINDER, USED ON FIVE SPOOL BACKHOE SERIAL NO. 1153354 AND AFTER (84) - BOOMS, DIPPERS & BUCKETS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- backhoe, 3" (76 mm) ID x 14-5/8" (371 mm) stroke, Includes: Ref. 1-18

1шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

- cylinder

1шт.

G104222

GLAND

ASSEMBLY - cylinder, replaces H104222 and also subs to a 1542962C1, Includes: Ref. 2-9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G105548

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Piston

1шт.

Part of seal kit P/N G105548

1шт.

5

D36969

CUP

SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105548

1шт.

Part of piston rod seal P/N G100776

1шт.

6

G104224

SEAL

- piston rod, narrow, used in addition to ref. 5 in some glands, if used

1шт.

Part of seal kit P/N G105548

1шт.

7

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105548

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105548

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No.8 - 32 NC x 3/8", if used

1шт.

11

G101357

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

12

G100442

PISTON

- cylinder

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of seal kit P/N G105548

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105548

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G105548

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, piston

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

G105548

KIT

- seal, Includes: Refs. 3 - 6, 8, 9, 13, 14 and 15

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold, Includes: Ref. 5

1шт.
