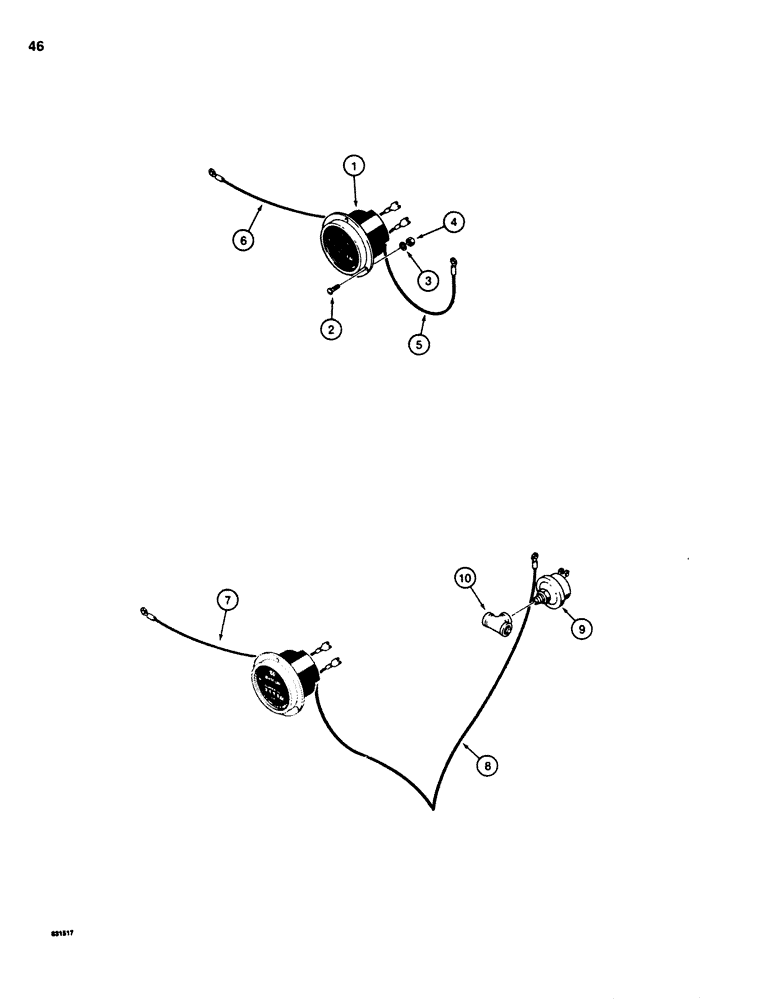

Запчасти Case P60 (046) - HOURMETER ELECTRICAL CIRCUIT, WISCONSIN GAS CIRCUIT (55) - ELECTRICAL SYSTEMS

1

H129957

HOURMETER

- engine

1шт.

2

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

MACHINE SCREW - slotted, No. 6 - 32 NC x 1/2"

3шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

4

129-15

NUT,#6-32

3шт.

H552794

HARNESS

WIRE SET - Wisconsin engines, Includes: Ref. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - hourmeter to "C" post on ignition switch

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE -, Serial Range: hourmeter-ground

1шт.

H571596

WIRE SET - Deutz engine, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - hourmeter to terminal block, deutz diesel circuit

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - hourmeter to oil pressure switch, deutz diesel circuit

1шт.

9

H139634

SWITCH

- oil pressure, deutz diesel circuit

1шт.

10

221-421

TEE,1/8" NPT

- pipe, , female, deutz diesel circuit 1/8" NPT

1шт.
