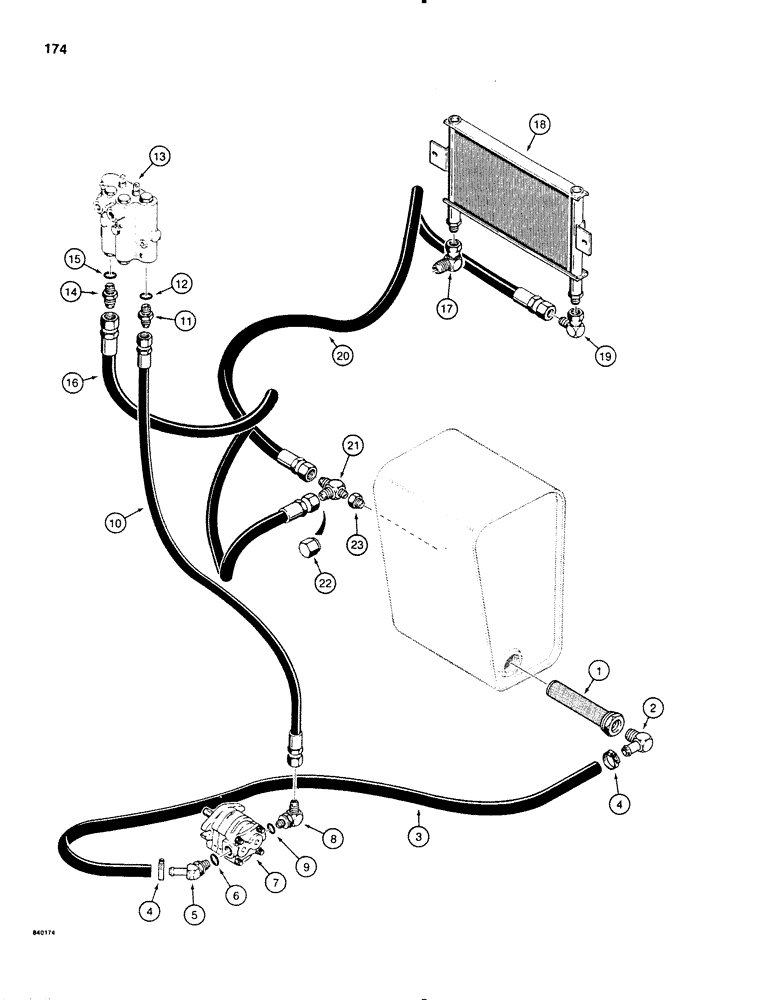

Запчасти Case P60 (174) - STEERING AND EQUIPMENT PUMP HYDRAULIC CIRCUIT, USED ON 30+4 SPECIAL SERIAL NUMBER 1140302 AND AFTER (41) - STEERING

1

H151399

FILTER STRAINER

SCREEN - suction filter, tank

1шт.

2

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, 1" NPT at screen

1шт.

3

H317347

HOSE

- suction, 3/4" (19 mm) ID x 46" (1168 mm) long

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, worm drive, SAE No. 12

2шт.

5

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, adjustable, Includes: Ref. 6

1шт.

7

H575886

PUMP

ASSEMBLY - steering and equipment, .562" (14.3 mm) diameter shaft, parts list figure 178

1шт.

8

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

10

D51686

HOSE

- pressure, 54" (1372 mm) long, Serial Range: valve-pump

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Incl. Ref 12 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

13

H550079

LOCK VALVE

VALVE ASSEMBLY - boom and steering, parts list figure 52

1шт.

14

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 15 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

16

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

Return, Valve to Reservoir, If Used 12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

16

H195958

HOSE,45.00", SAE 100R1

Return, Valve to Reservoir 45.00", SAE 100R1

1шт.

17

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

18

H559609

COOLER, OIL

OIL COOLER - hydraulic

1шт.

19

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

1шт.

20

H171777

HOSE

- return, 37" (940 mm) long, oil, Serial Range: cooler-reservoir

1шт.

21

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- male

1шт.

22

218-756

CAP,37 Degree, 7/8"-14

Tee 37º, 7/8"-14

1шт.

23

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - pipe, reducing

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
