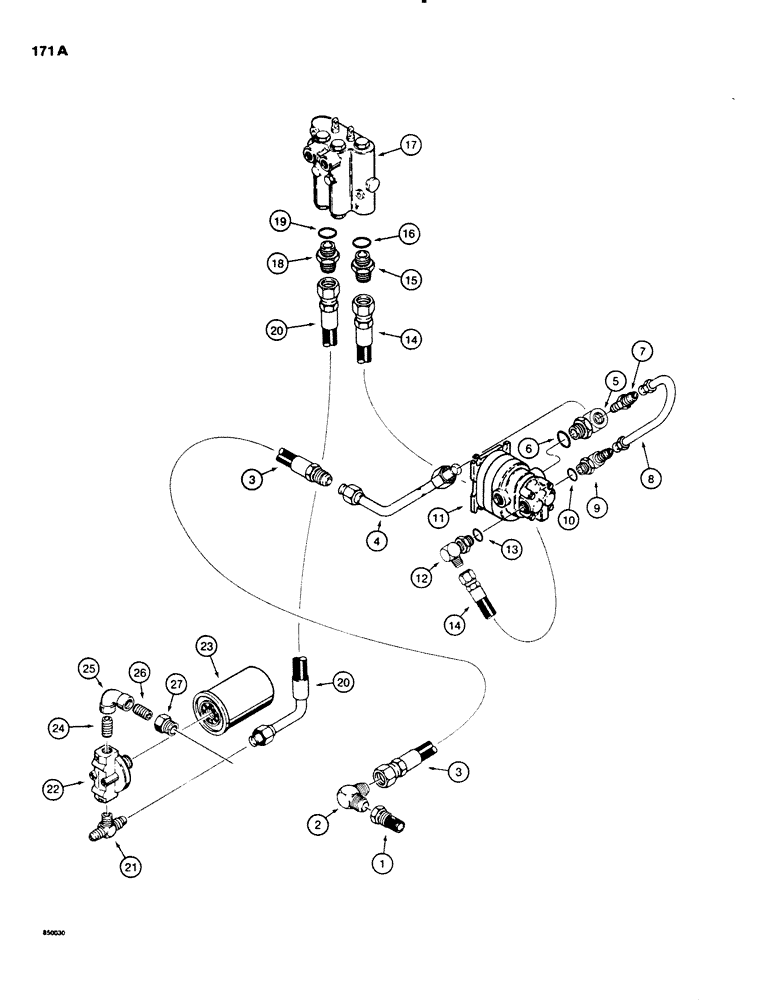

Запчасти Case P60 (171A) - STEERING & EQUIP. PUMP HYD. CIRCUIT, DEUTZ DIESEL ENG. W/ DUAL PUMP, USED ON 30+4 S/N 123821 & AFTER (41) - STEERING

1

H599720

FILTER

SCREEN - suction filter, tank

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, 1" NPT at screen

1шт.

3

H433412

HOSE ASSY.

HOSE - suction, 1" (25 mm) ID x 59 (1500 mm) long

1шт.

4

H671735

TUBE ASSY.,25.4 mm OD

TUBE - suction

1шт.

5

A165290

FITTING

ELBOW - special, Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

7

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - tube

1шт.

8

H671743

TUBE ASSY.,15.8 mm OD x 35, 67 mm L

TUBE - pump to pump, suction

1шт.

9

28-5107

ELBOW - 90 degree, adjustable

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

H671446

PUMP

ASSEMBLY - steering and equipment, parts list figure 179A

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 13

1шт.

14

D51686

HOSE

- pressure, 54" (1372 mm ) long, Serial Range: valve-pump

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Incl. Ref 16 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

17

H550079

LOCK VALVE

VALVE ASSEMBLY - boom and steering, parts list figure 52

1шт.

18

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 19 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

20

H261826

HOSE ASSY.

HOSE - return, 89" (2261 mm) long, 90 degree tube end

1шт.

21

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

- male

1шт.

H568014

FILTER CARTRIDGE

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

23

H311654

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

24

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - 1/2" NPT x 1-1/8" long

1шт.

25

221-377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, 1/2" NPT

1шт.

26

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - 1/2" x 1-1/2" long

1шт.

27

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - reducer, 1-1/4" NPT x 1/2" NPT

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
