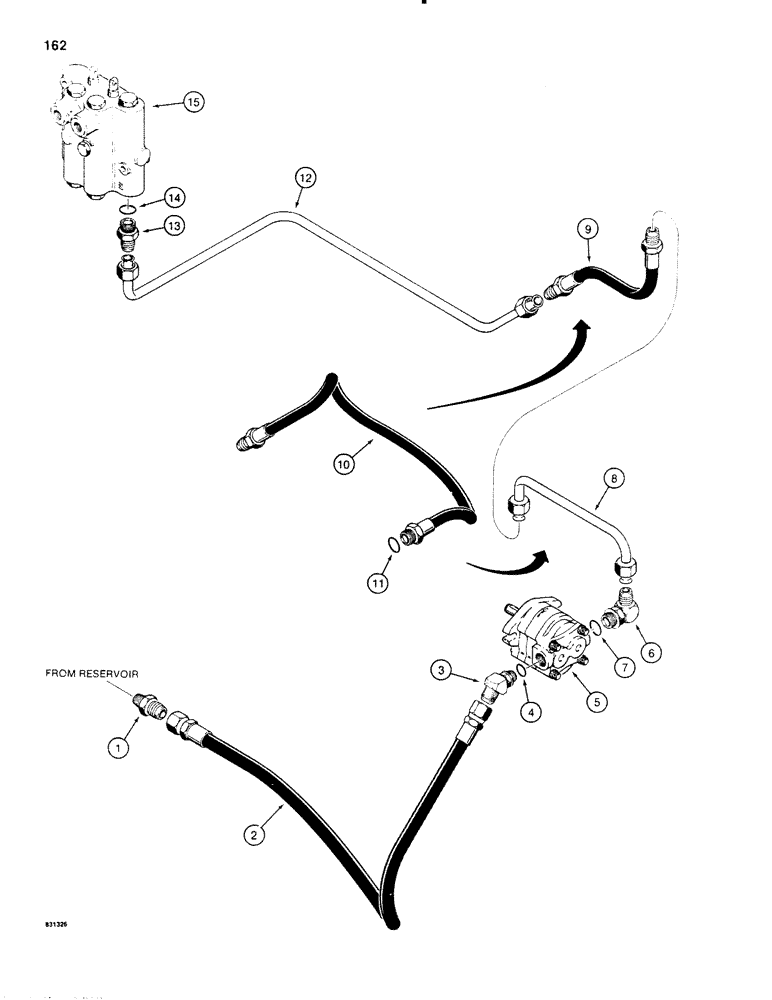

Запчасти Case P60 (162) - STEERING AND EQUIPMENT PUMP HYDRAULIC CIRCUIT, USED ON 30+4 S/N 4500 TO 40+4 S/N 3400 TO 3930 (41) - STEERING

1

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight

1шт.

2

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

Suction, 30+4 Models Only 7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

2

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

Suction, 40+4 and 30+4 Special Models Only 12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

3

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Includes: Ref. 4

1шт.

4

21/85006

O-RING - elbow

1шт.

5

H575886

PUMP

- hyudraulic, Cessna No. 24206-LAB, counterclockwise rotation, parts list figure 178

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

H560060

TUBE,0.5" OD

- pressure, pump to hose, 30+4 Special and before 30+4 SN 4790

1шт.

8

H569889

TUBE,0.5" OD

- pressure, pump to hose, 40+4 and 30+4 SN 4790 to 5210

1шт.

9

H195370

HOSE

- pressure, tube to tube, 9" (229 mm) long

1шт.

10

H240671

HYDRAULIC HOSE,9.52 mm ID x 508.70 mm, SAE 100R1

Pressure, Pump to Tube, Used in Place of Refs. 8 and 9 on 40+4 Deutz Models Only, Includes: Ref. 11 9.52 mm ID x 508.70 mm, SAE 100R1

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

12

H559971

TUBE,0.5" OD x 15.25, 9.625" L

- pressure, hose to valve, 30+4 models only

1шт.

12

H569871

TUBE,0.5" OD

- pressure, hose to valve, 40+4 models only

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 14 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

15

H550079

LOCK VALVE

CONTROL VALVE - Cessna No. 31522-AL, parts list figures 52 and 54

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
